Manual Transmission Overhaul
›
Transmission Disassembly
›
Exploded View-Transmission Housing
Exploded View-Transmission Housing

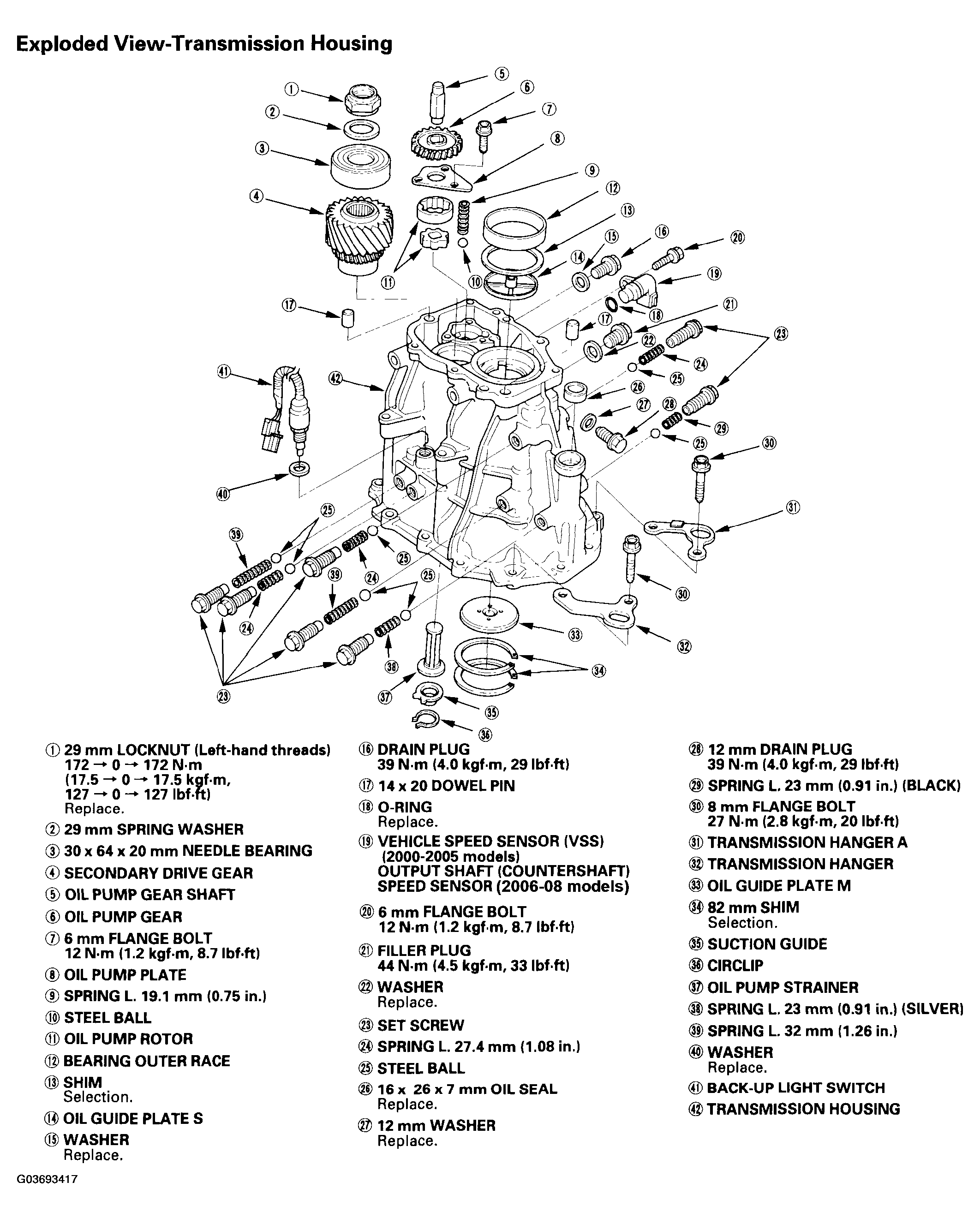

Fig 1: Exploded View-Transmission Housing With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
