Component Location Index

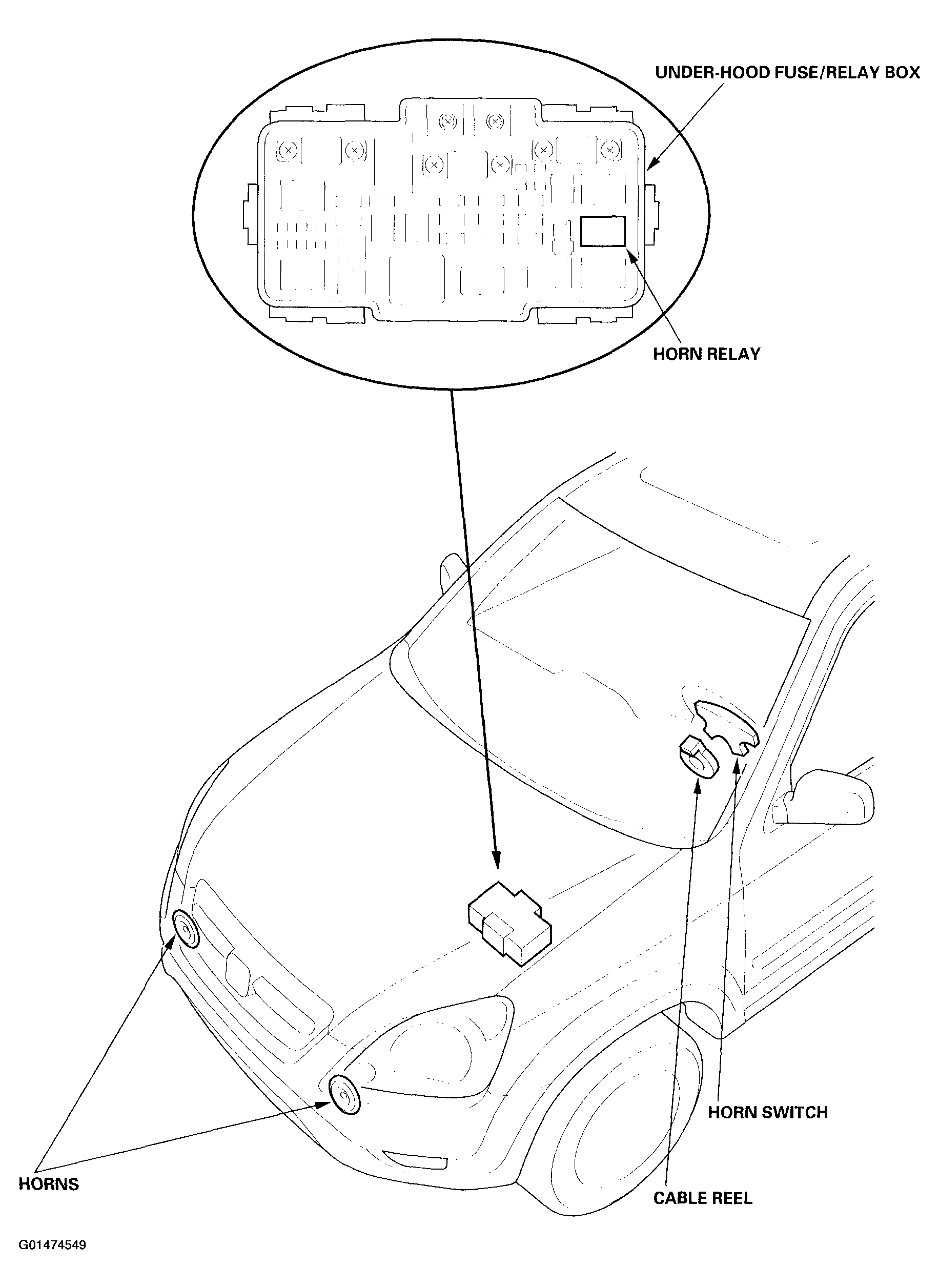

Fig 1: Horn Component Locations
G01474549Courtesy of AMERICAN HONDA MOTOR CO., INC.
