Clutch Interlock Switch Test

1. Disconnect the clutch interlock switch 2-pin connector (A). See Fig 1.
2. Remove the clutch interlock switch (B).
3. Check for continuity between the terminals according to the table. See Fig 2. If the continuity is not as specified, replace the clutch interlock switch. If OK, install clutch interlock switch and adjust the pedal height. See appropriate CLUTCHES article in TRANSAXLE/TRANSMISSION.

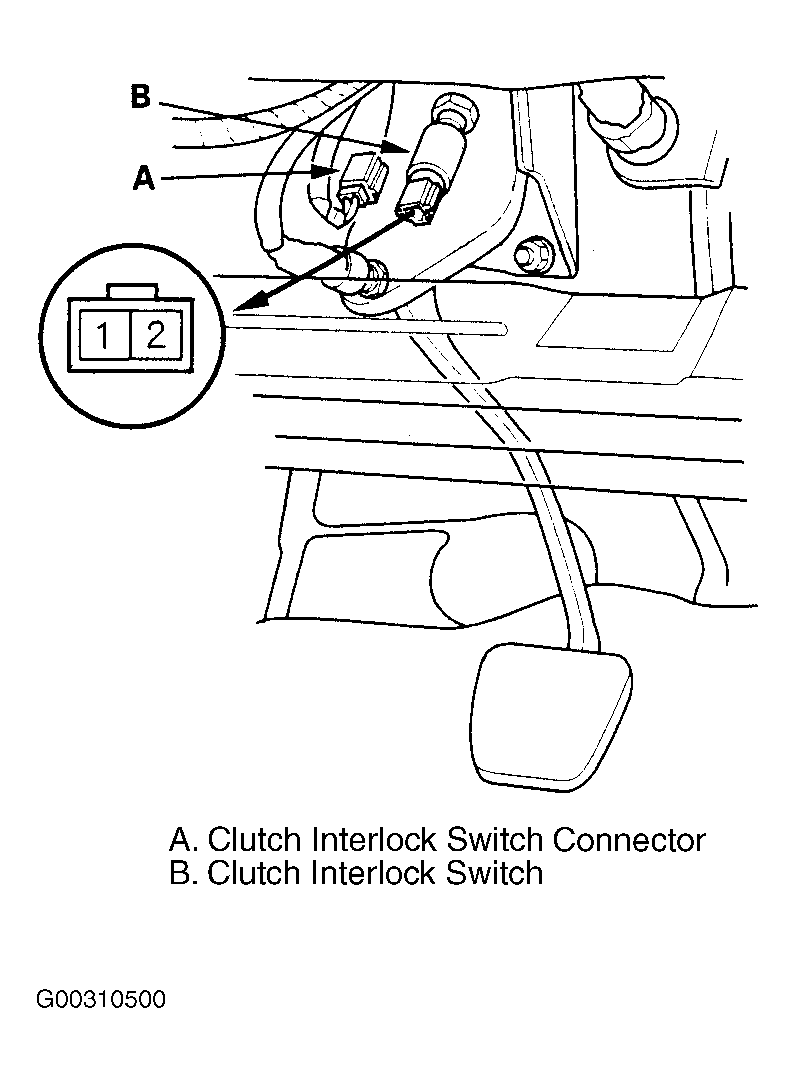

Fig 1: Disconnecting Clutch Interlock Switch 2-Pin Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Checking Continuity Between Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
