Automatic Transmission Servicing
›
Shift Lever Disassembly/Reassembly
Shift Lever Disassembly/Reassembly

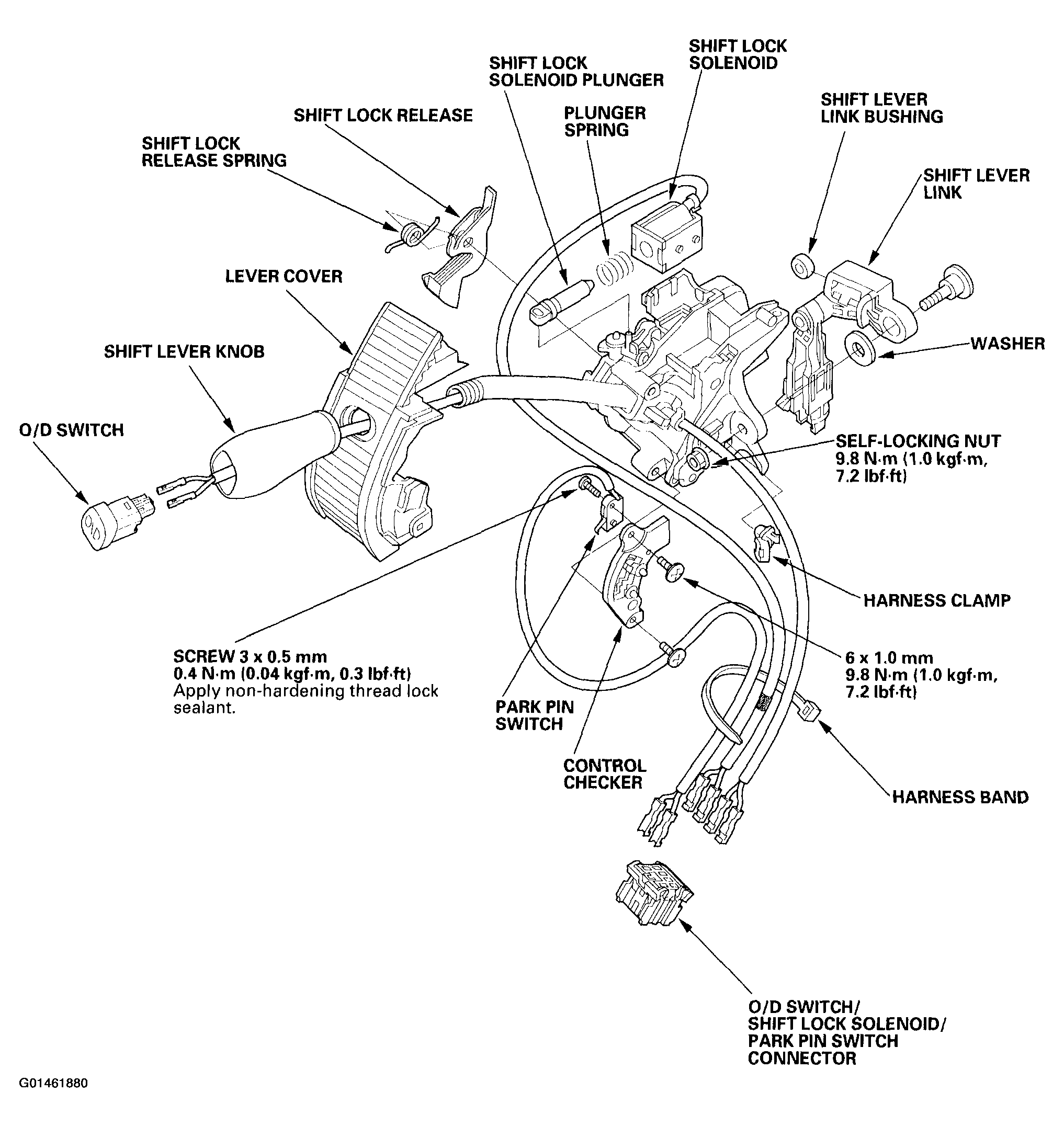

Fig 1: Exploded View Of Shift Lever Disassembly/Reassembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
