Ignition Coil Removal/Installation

  1. Remove the ignition coil cover (A), then remove the ignition coils (B).

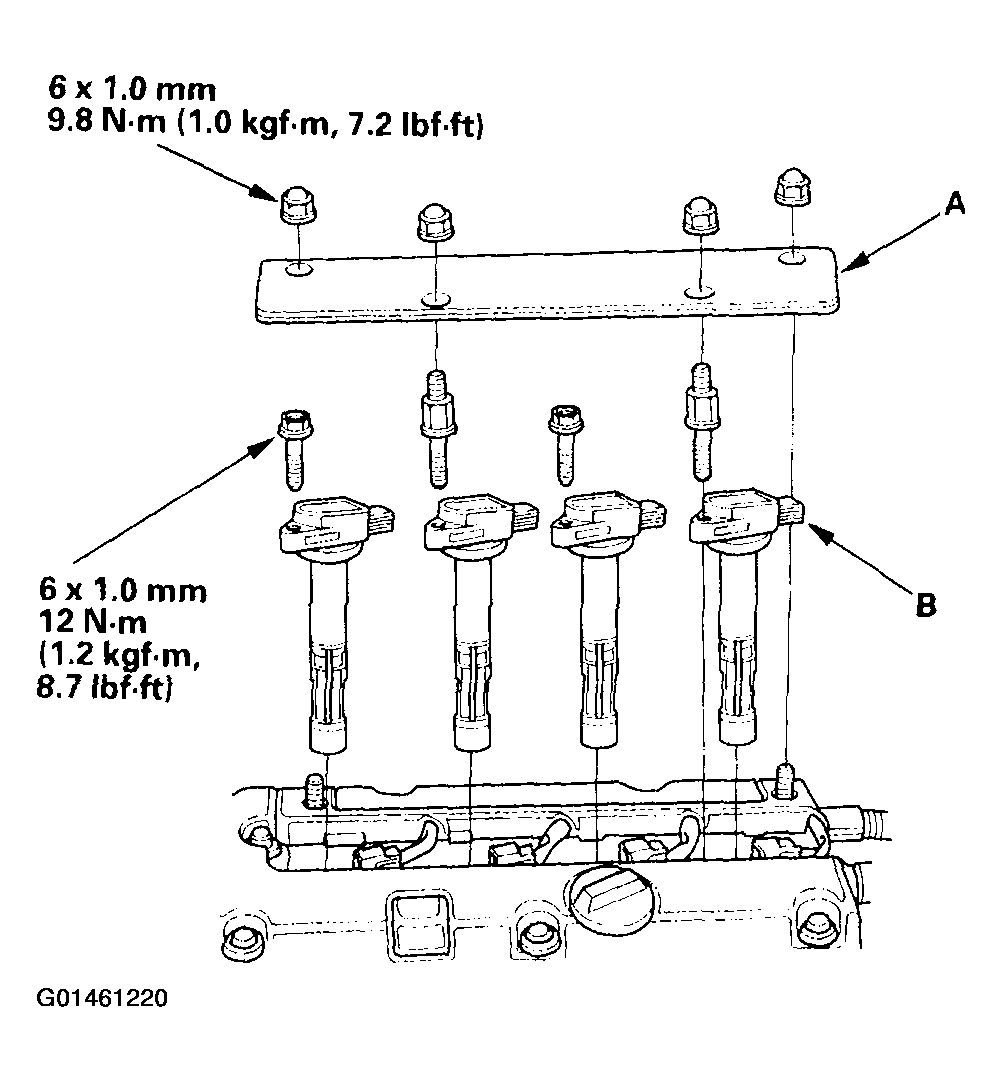

    Fig 1: Removing/Installing Ignition Coil Cover & Ignition Coils
    G01461220Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the ignition coils in the reverse order of removal.
