Intake Air System (GX) (Supplement)
›
Throttle Body Disassembly/Reassembly
Throttle Body Disassembly/Reassembly

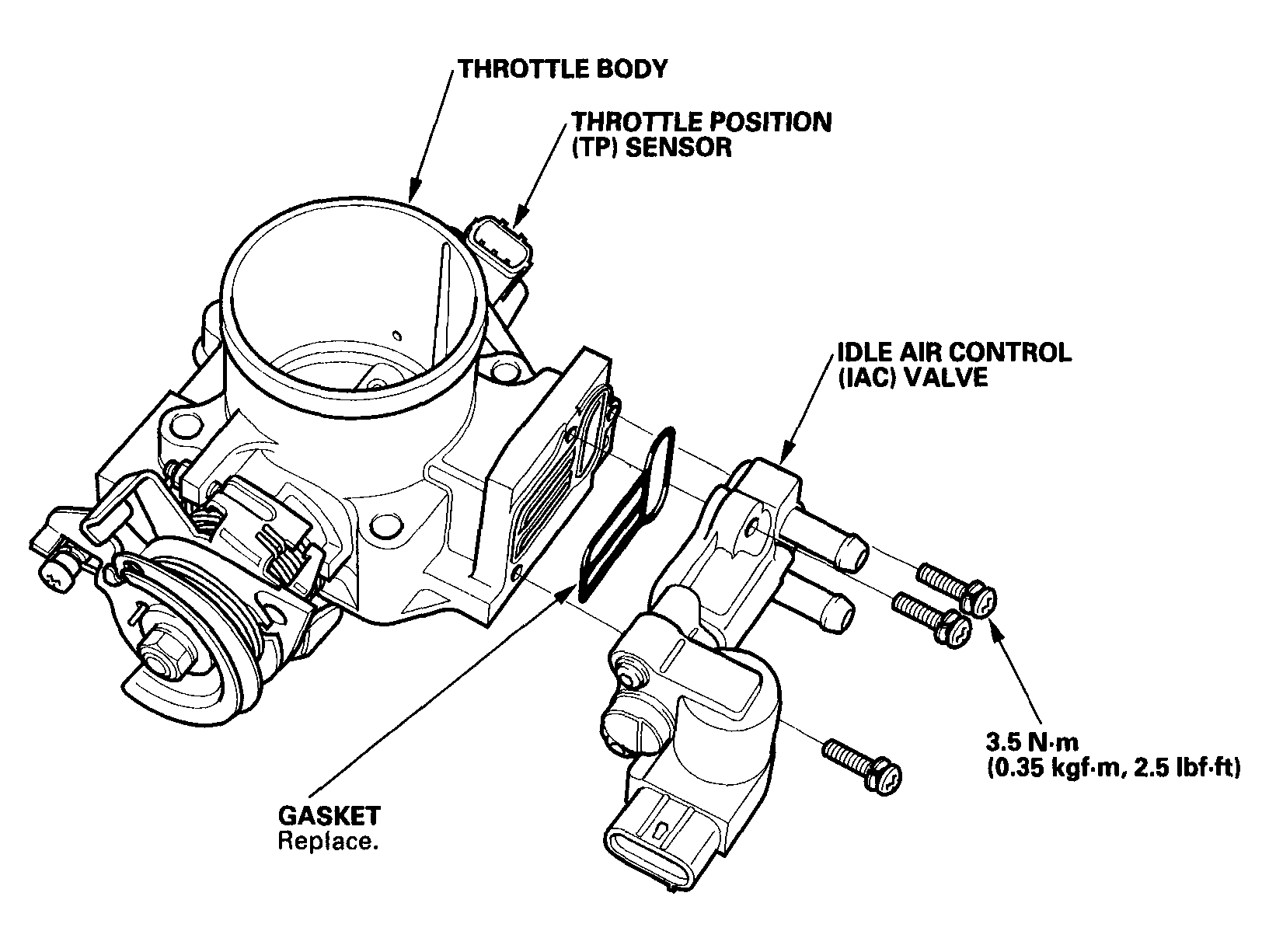

Fig 1: Disassembling View Of Throttle Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
