Cruise Control Actuator/Cable Replacement

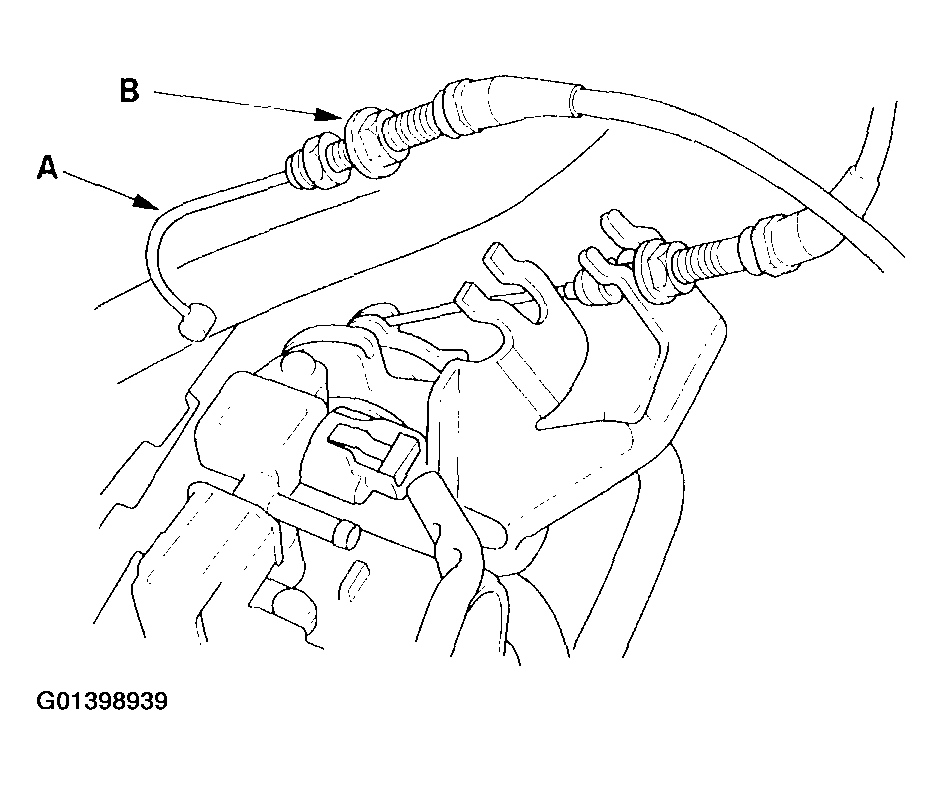

Fully open the cruise control link by hand, then remove the cruise control cable (A) from link. Loosen the locknut (B), and remove the cable from the bracket.

Fig 1: Removing The Cruise Control Cable From Link
Courtesy of AMERICAN HONDA MOTOR CO., INC.

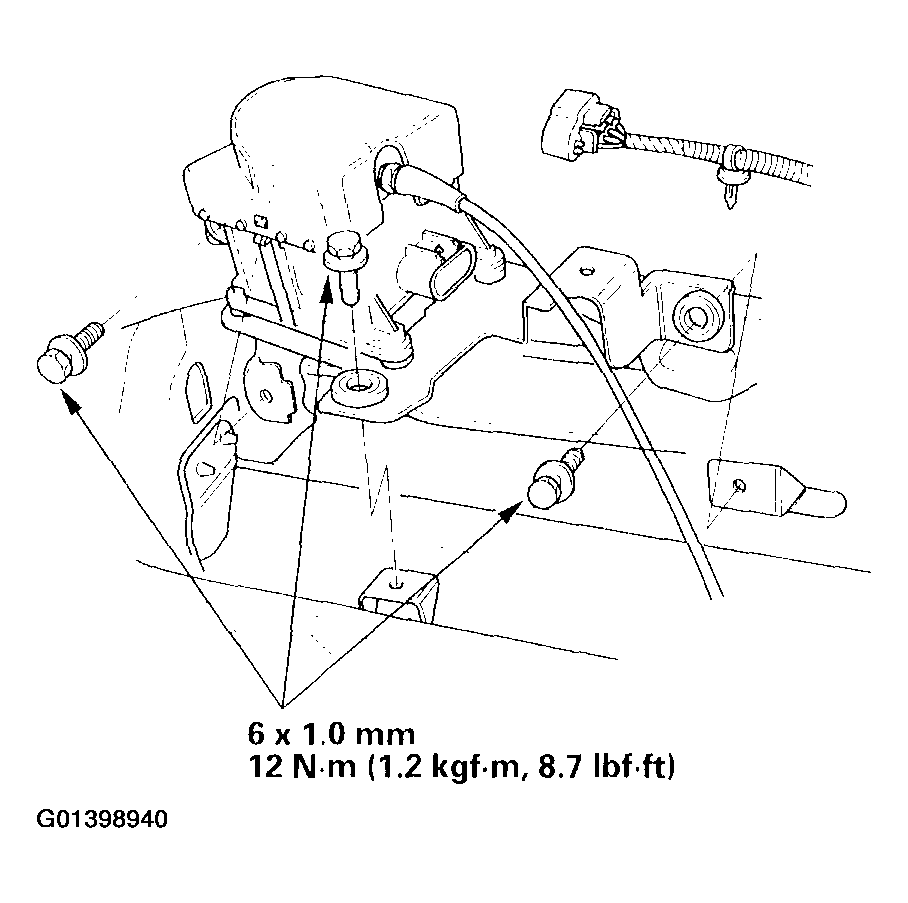

Disconnect the 4P connector, and remove the three bolts securing the cruise control actuator.

Fig 2: Removing The Three Bolts Securing The Cruise Control Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the actuator cover (A), then remove the actuator cable (B) from the cruise control actuator.

Fig 3: Removing The Actuator Cover & Actuator Cable From The Cruise Control Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.
