A/T Interlock System
›
Circuit Diagram
Circuit Diagram

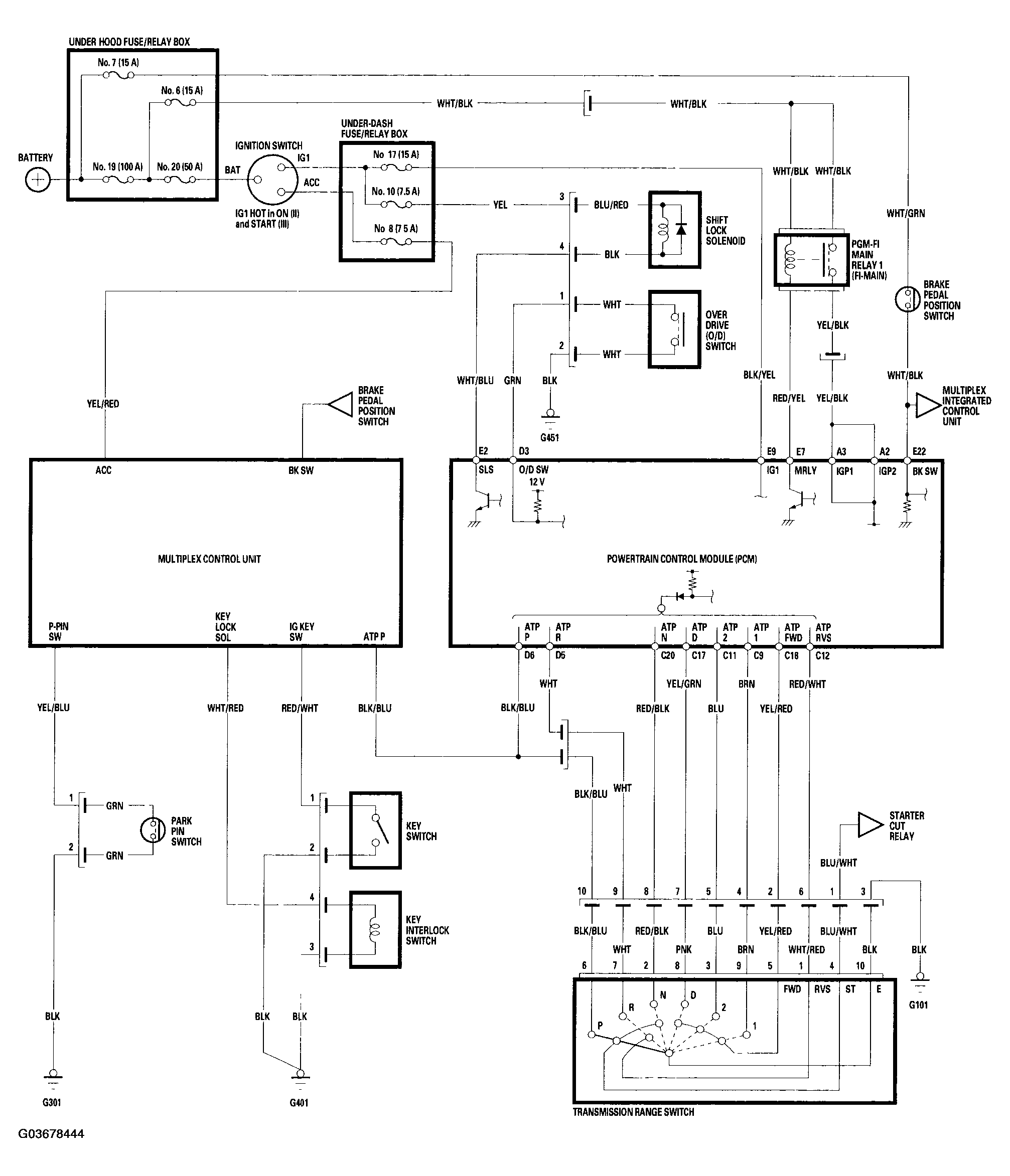

Fig 1: Circuit Diagram - A/T Interlock System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
