Automatic Transmission
›
System Description
›
Transmission Cutaway View
Transmission Cutaway View
NOTE:
The illustration shows 4WD model; 2WD model does not have the transfer mechanism.

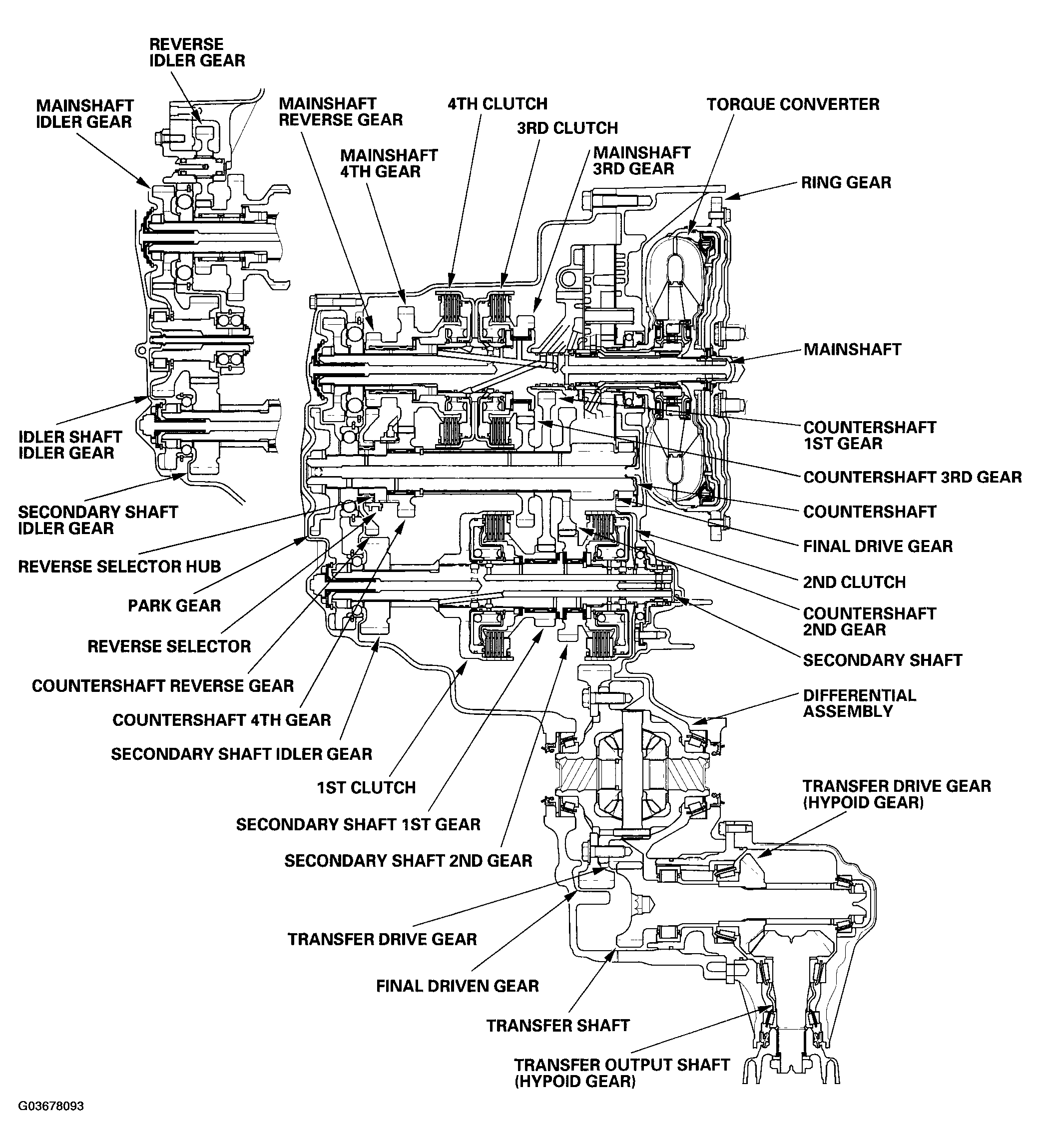

Fig 1: Transmission Cutaway View (4WD Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
