System Description
›
Grade Logic Control
›
PCM Electrical Connections
PCM Electrical Connections

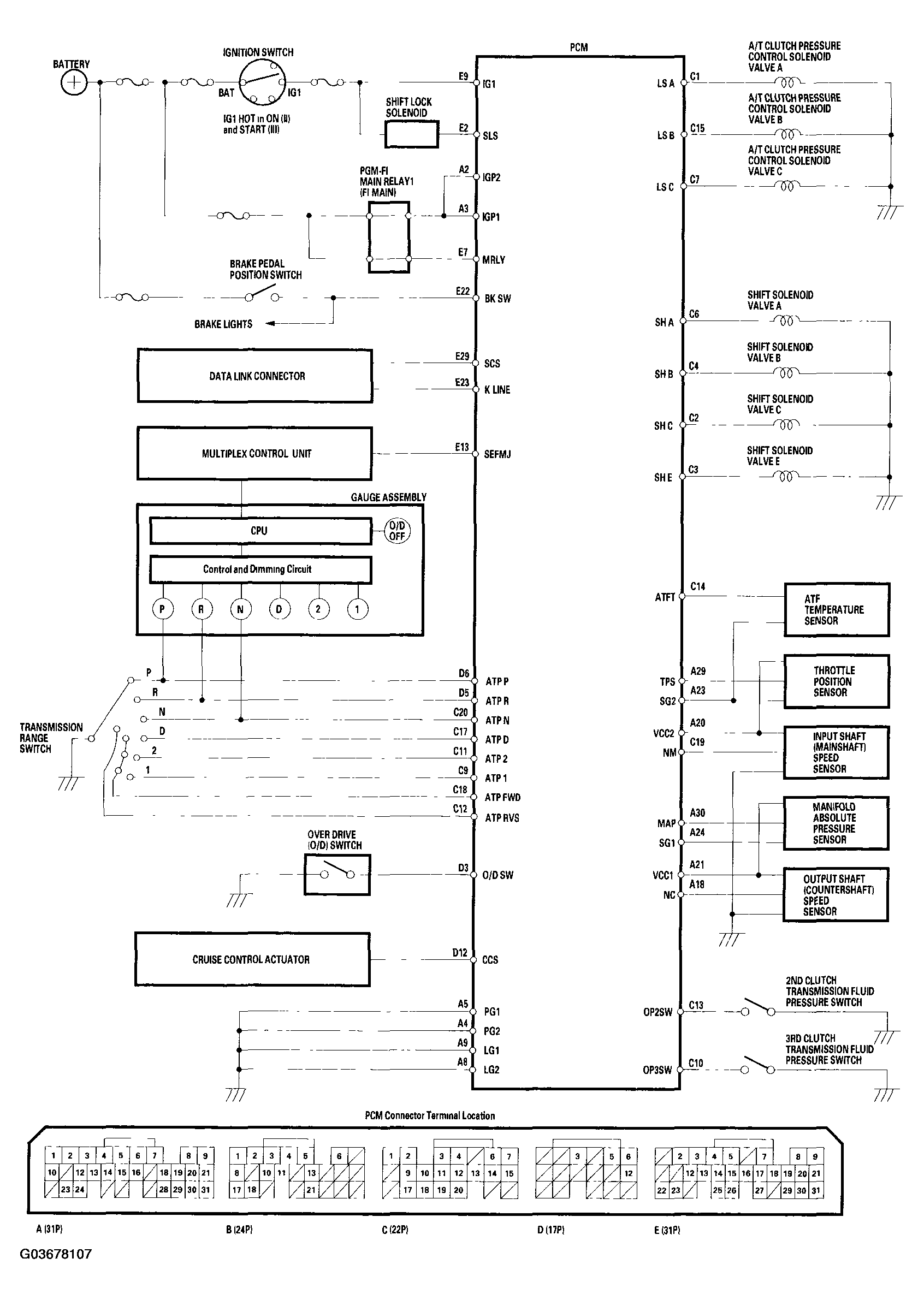

Fig 1: Identifying PCM Electrical Connections
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
