ABS Modulator-Control Unit (EX; '06) Connector End View
ABS Modulator-Control Unit (EX; '06) Connector End View

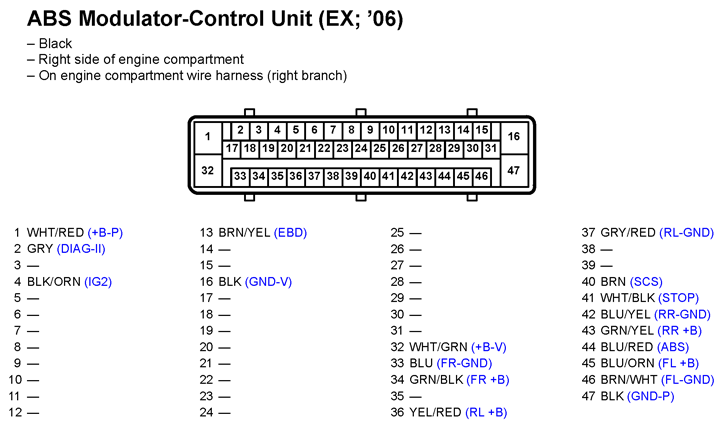

Fig 1: ABS Modulator-Control Unit (EX; '06) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
