Heater Control Panel Connector End View
Heater Control Panel Connector End View

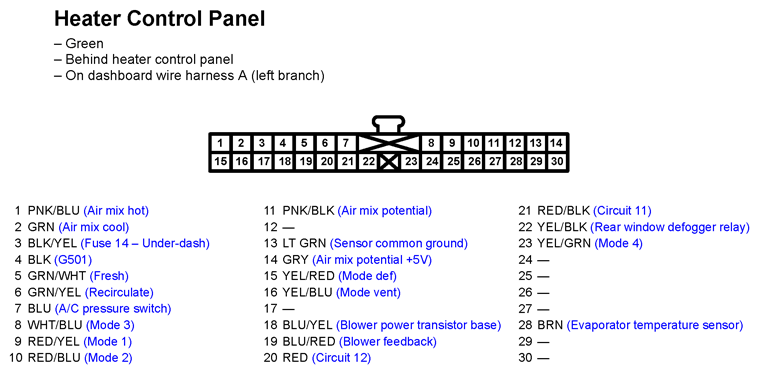

Fig 1: Heater Control Panel Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
