Continuously Variable Automatic Transmission (CVT)
›
CVT
›
System Description
›
Circuit Diagram
Circuit Diagram

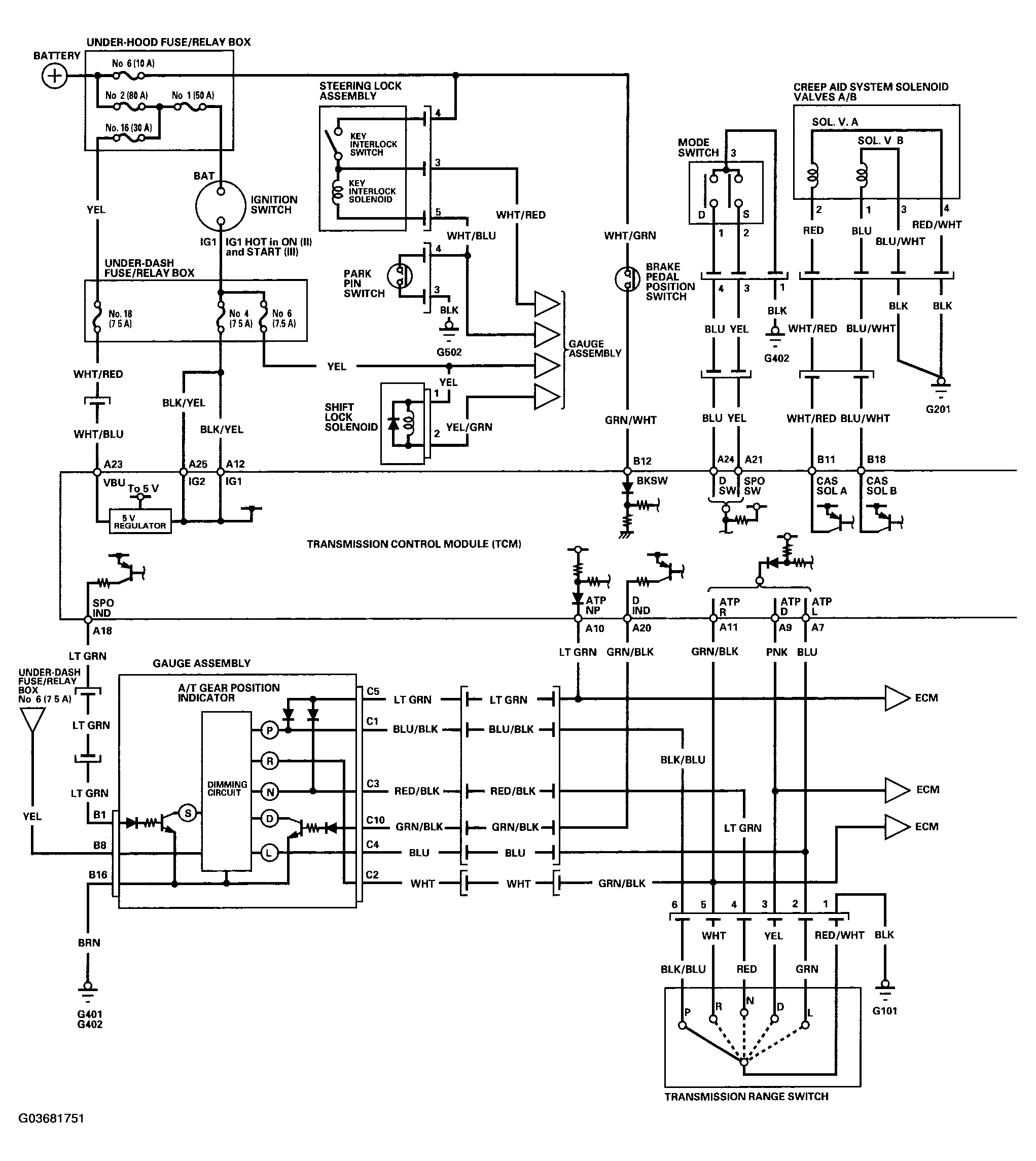

Fig 1: CVT Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

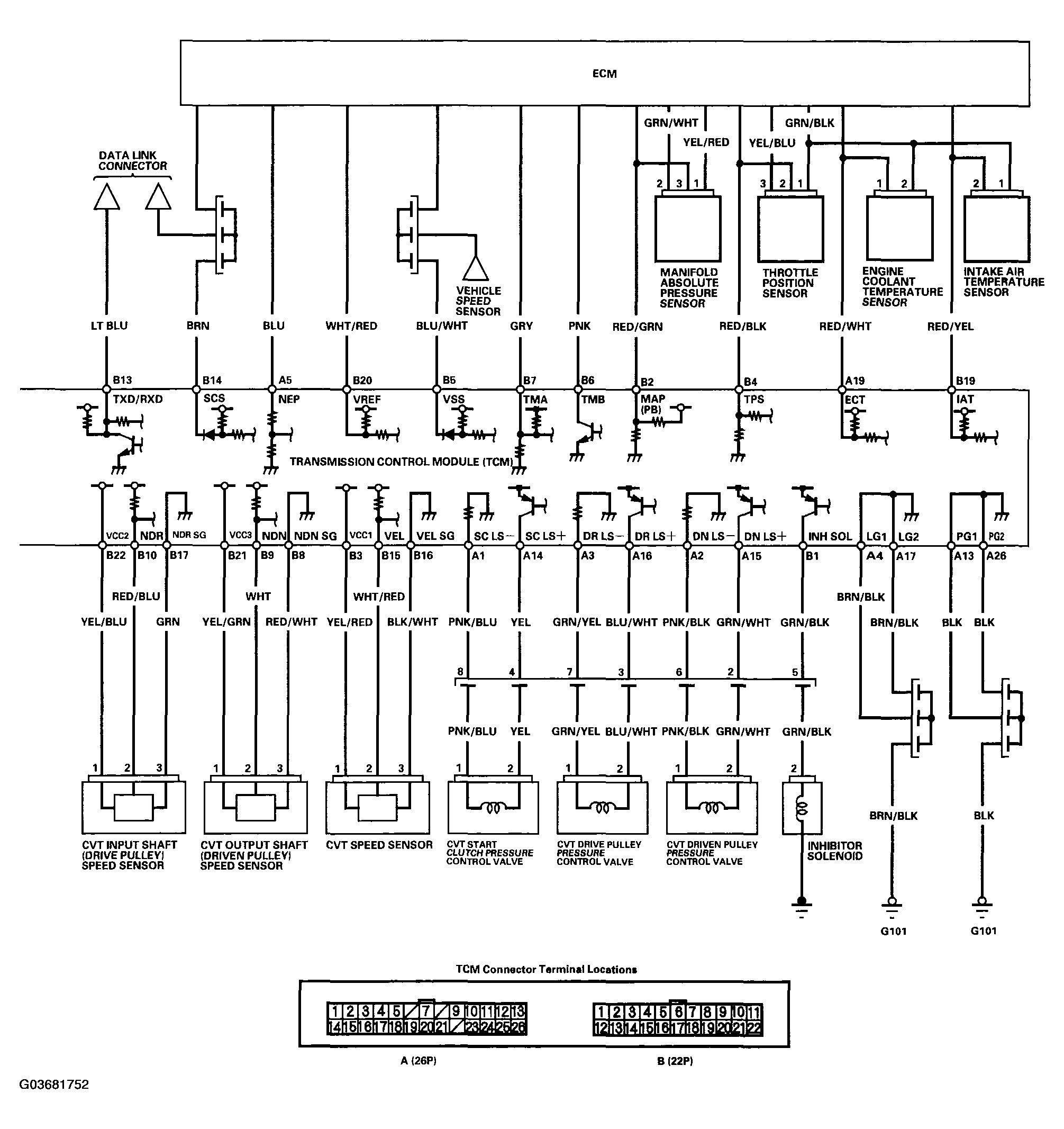

Fig 2: CVT Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
