P Position

The manual valve is shifted into the P position, the manual valve intercepts hydraulic pressure to the forward clutch. Hydraulic pressure is not applied to the start and forward clutches, and power is not transmitted to the drive pulley shaft.

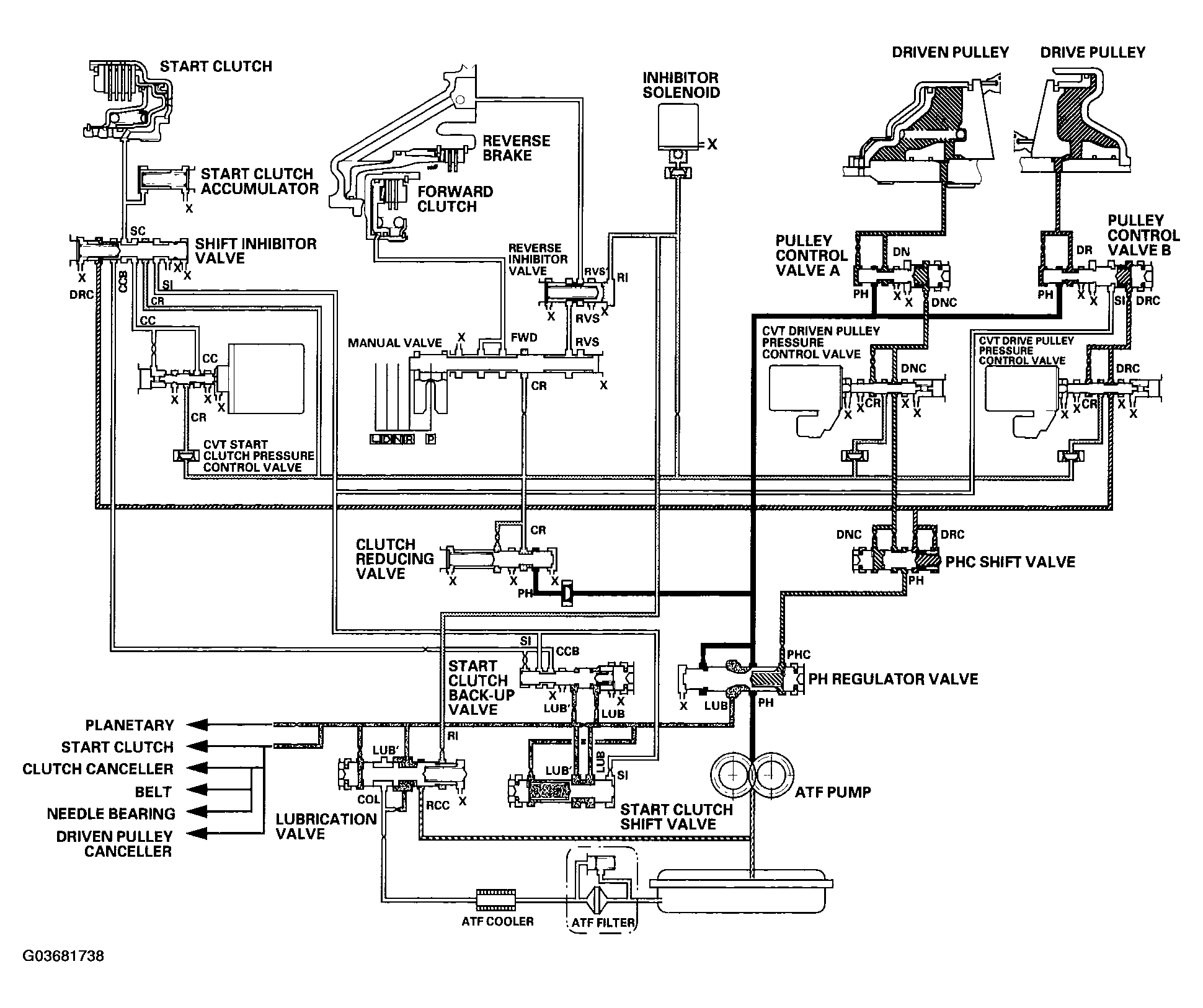

Fig 1: Hydraulic Circuit - P Position (2001-2003 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

The manual valve is shifted into the P position, the manual valve intercepts hydraulic pressure to the forward clutch. Hydraulic pressure is not applied to the start and forward clutches, and power is not transmitted to the drive pulley shaft.

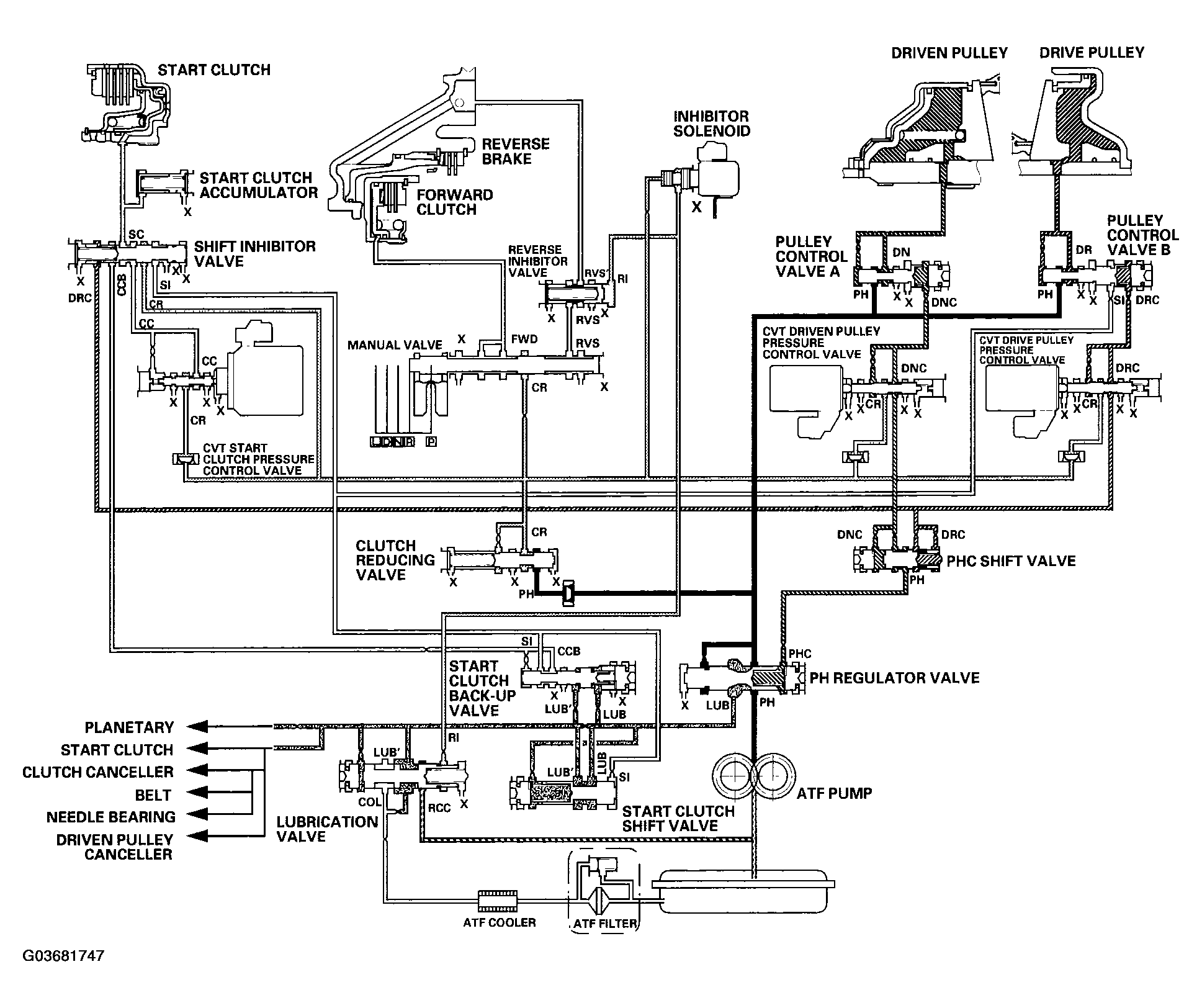

Fig 1: Hydraulic Circuit - P Position (2004-2006 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
