Immobilizer Receiver Unit Replacement

  1. Remove the driver's dashboard lower cover (see DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnect the 5P and 7P connectors (A) from the immobilizer receiver unit (B).

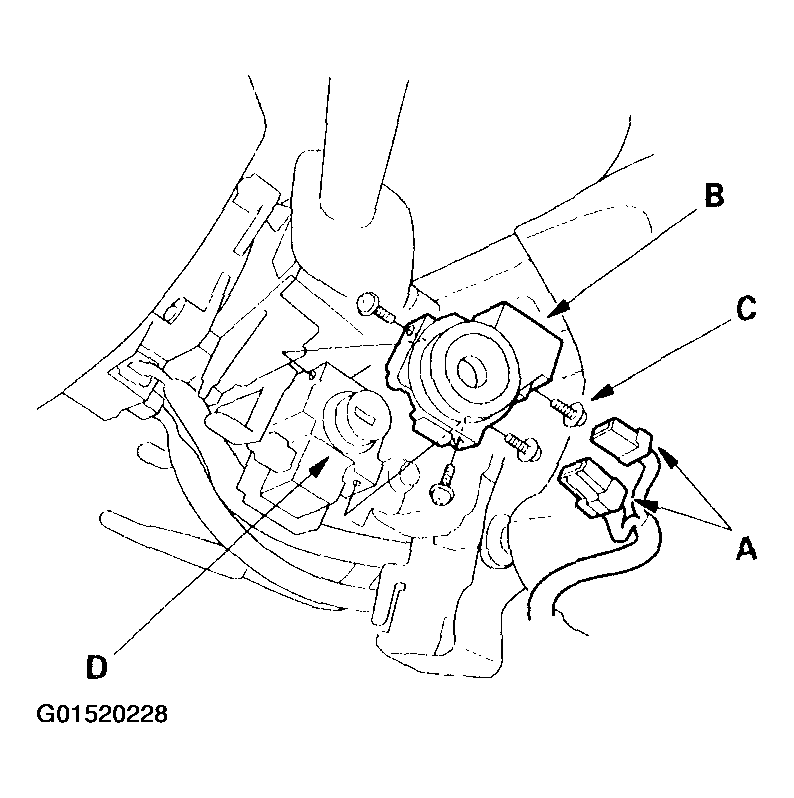

    Fig 1: Removing Immobilizer Receiver Unit
    G01520228Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the screws (C) and the immobilizer receiver unit from the ignition key cylinder (D).
  5. Install in the reverse order of removal.
  6. After replacement, check the immobilizer system.
    NOTE: The PCM does not need to be reprogrammed if only the receiver has been replaced.
