Power Mirror and Mirror Defogger Switch Test

Remove the dashboard lower cover (see DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Disconnect the 10P connector (A) from the power mirror switch (B).

Fig 1: Disconnecting 10P Connector From Power Mirror Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

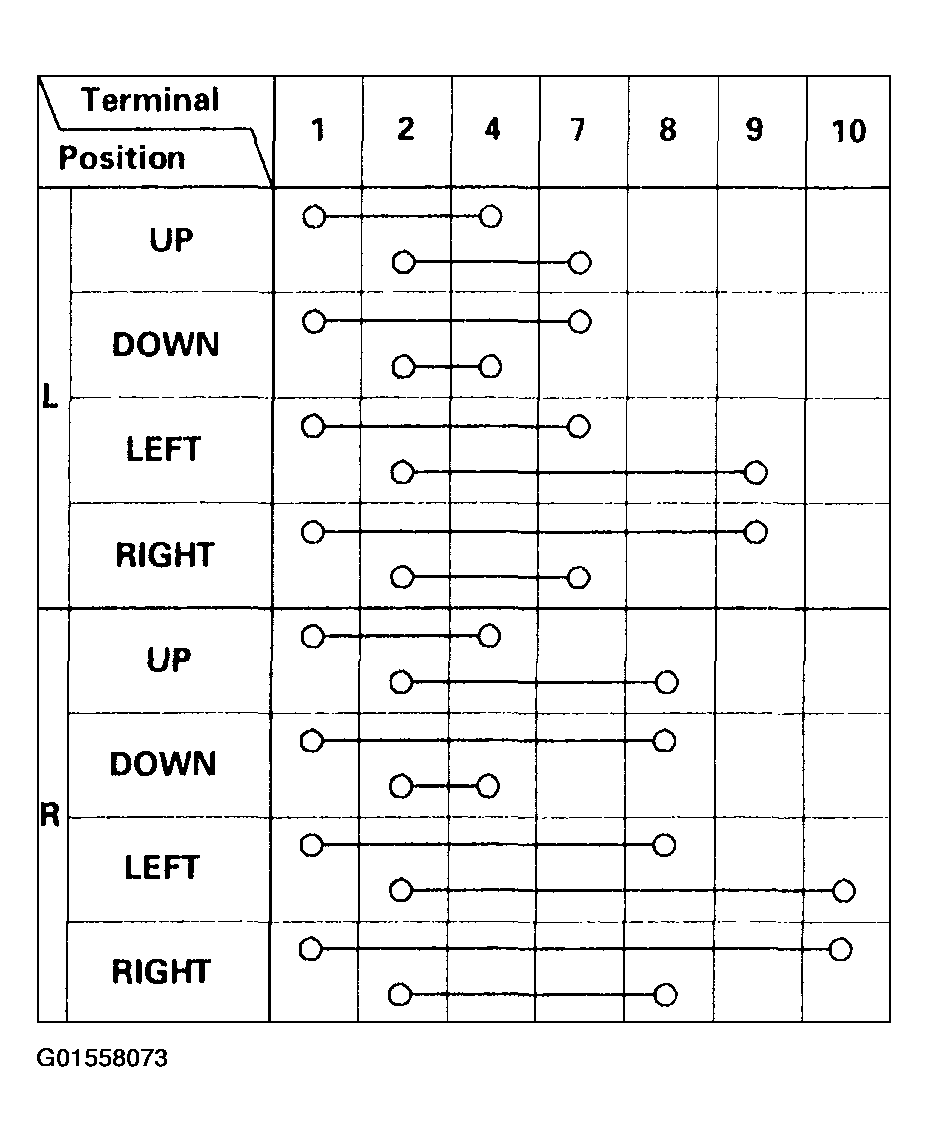

Fig 2: Checking Continuity Between Terminals (Mirror Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Checking Continuity Between Terminals (Defogger Switch - Canada)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
