Left/Right Junction Switch Connector End View
Left/Right Junction Switch Connector End View

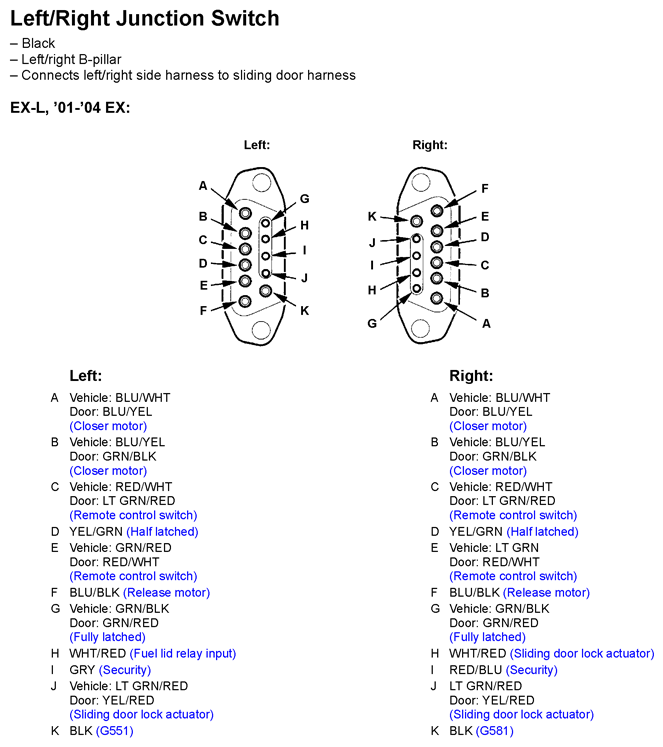

Fig 1: Left/Right Junction Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
