Component Location Index
Component Location Index

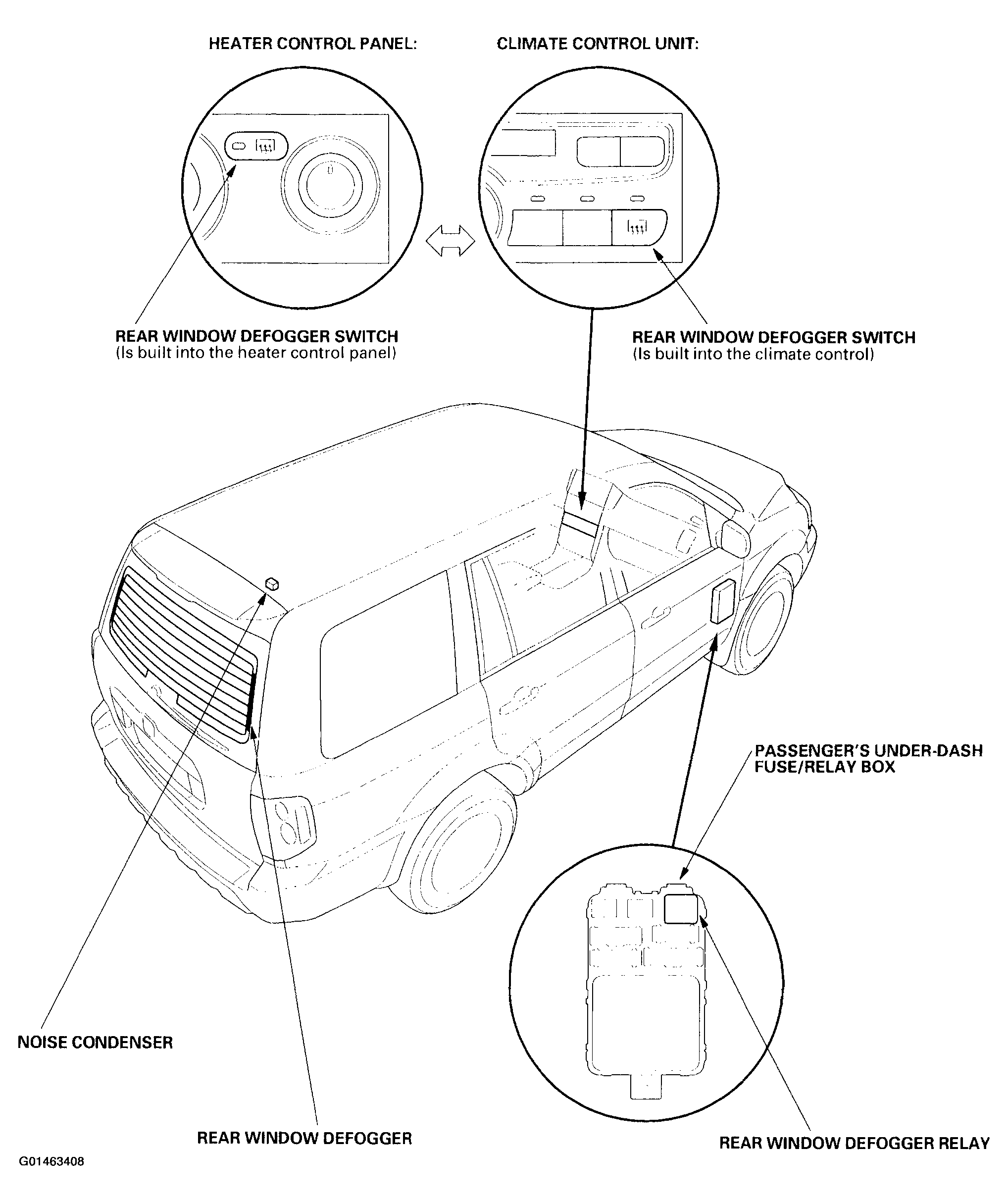

Fig 1: Locating Rear Window Defogger System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
