Circuit Diagram
Circuit Diagram

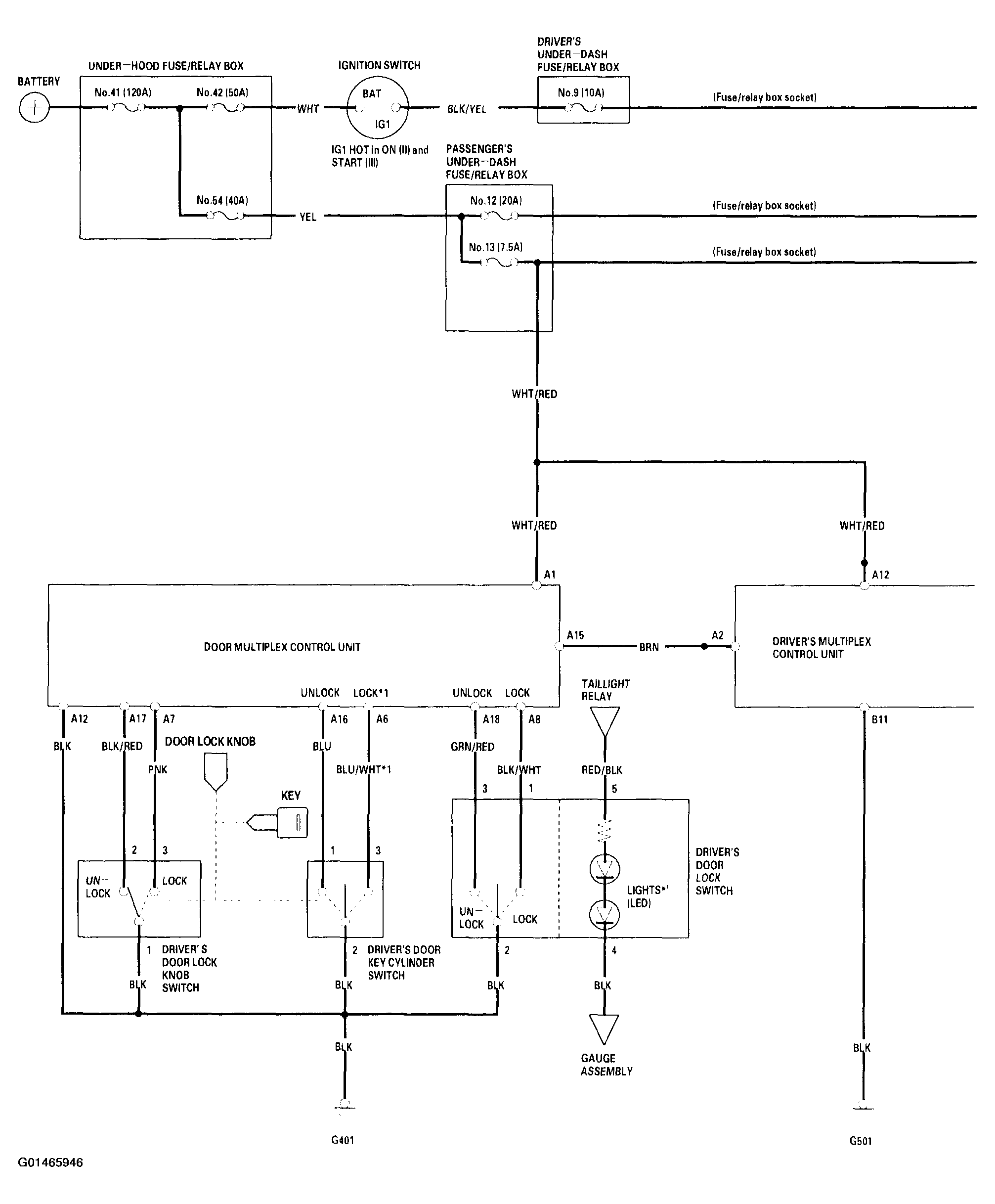

Fig 1: Power Door Locks/Keyless Entry/Security System Circuit Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

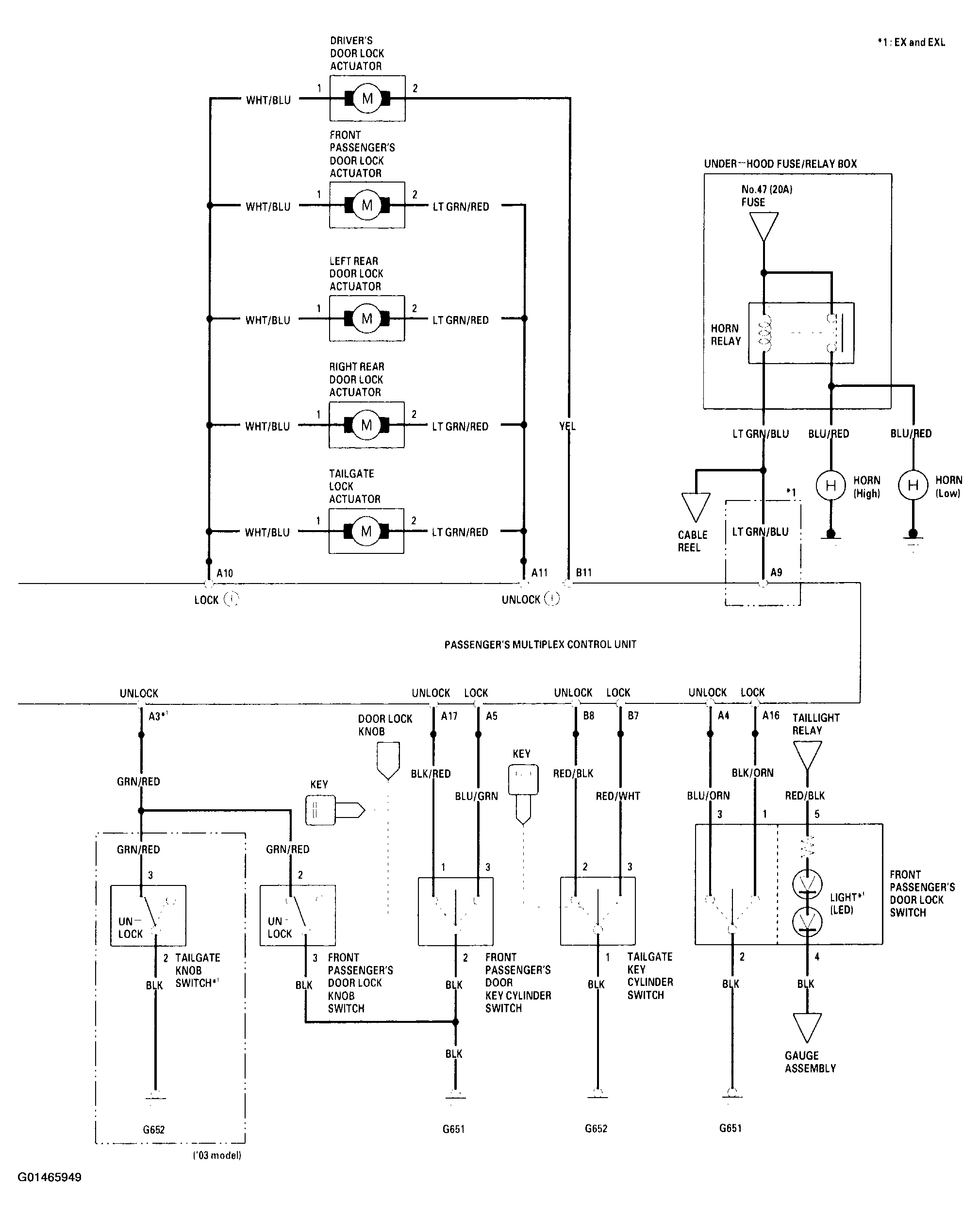

Fig 2: Power Door Locks/Keyless Entry/Security System Circuit Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

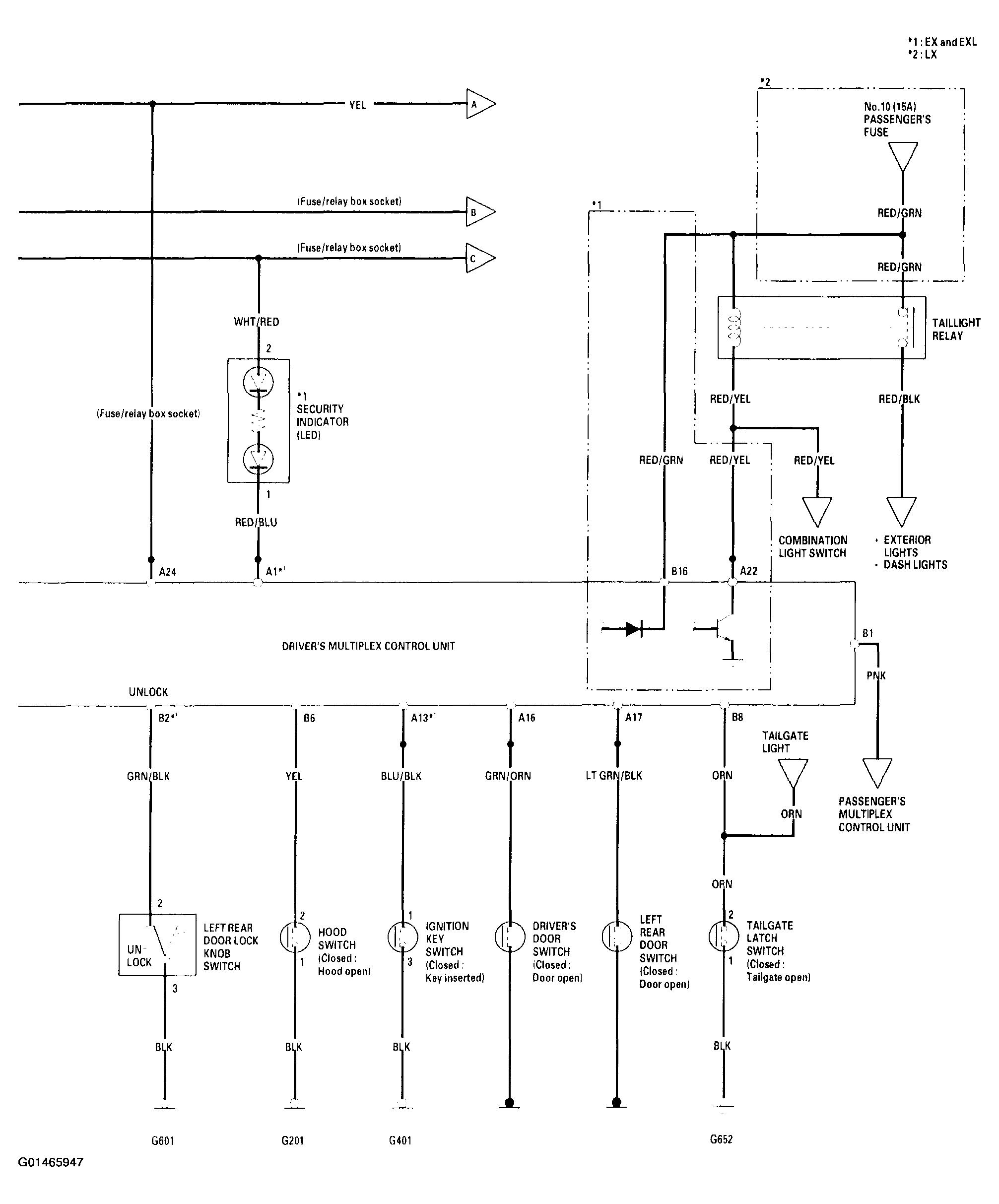

Fig 3: Power Door Locks/Keyless Entry/Security System Circuit Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

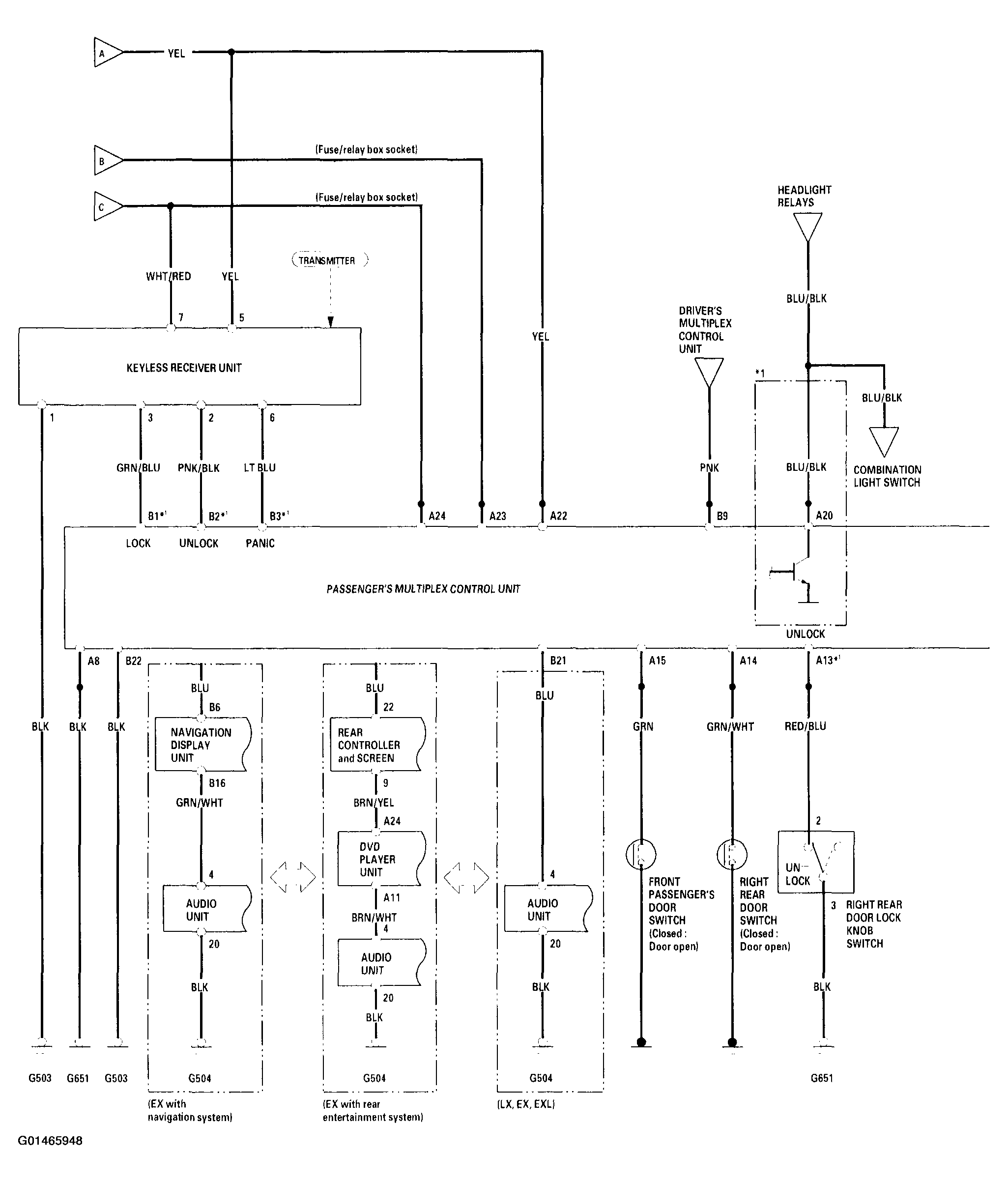

Fig 4: Power Door Locks/Keyless Entry/Security System Circuit Diagram (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
