Rear Door Outer Handle Replacement

NOTE: Put on gloves to protect your hands.

Remove these items:
- Door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
- Plastic cover, as necessary (see COMPONENT LOCATION INDEX - REAR DOOR )
Raise the glass fully.

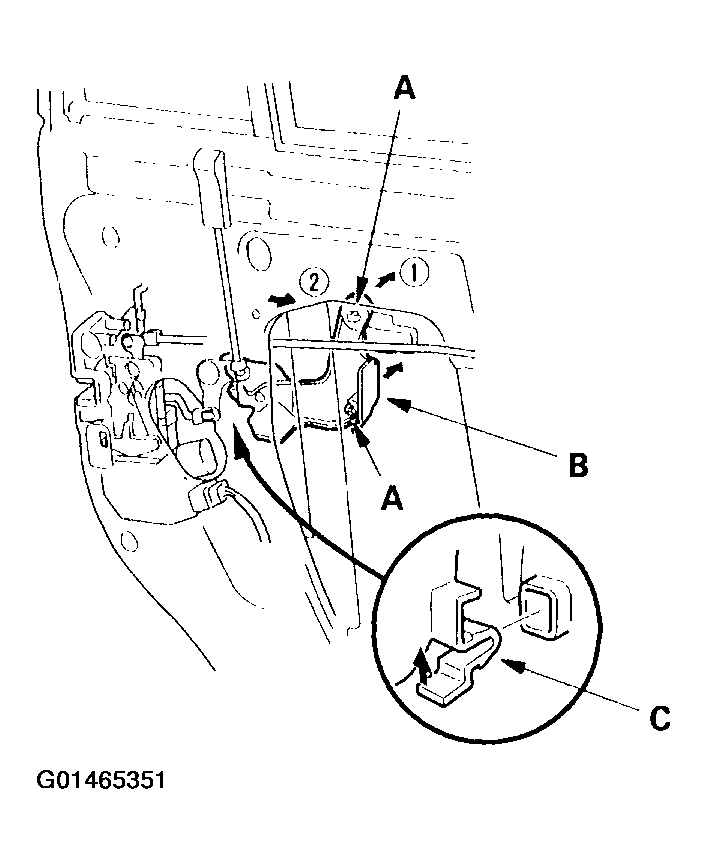

Release the hooks (A), then remove the rod protector (B) by detaching the clip (C).

Fig 1: Removing The Rod Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

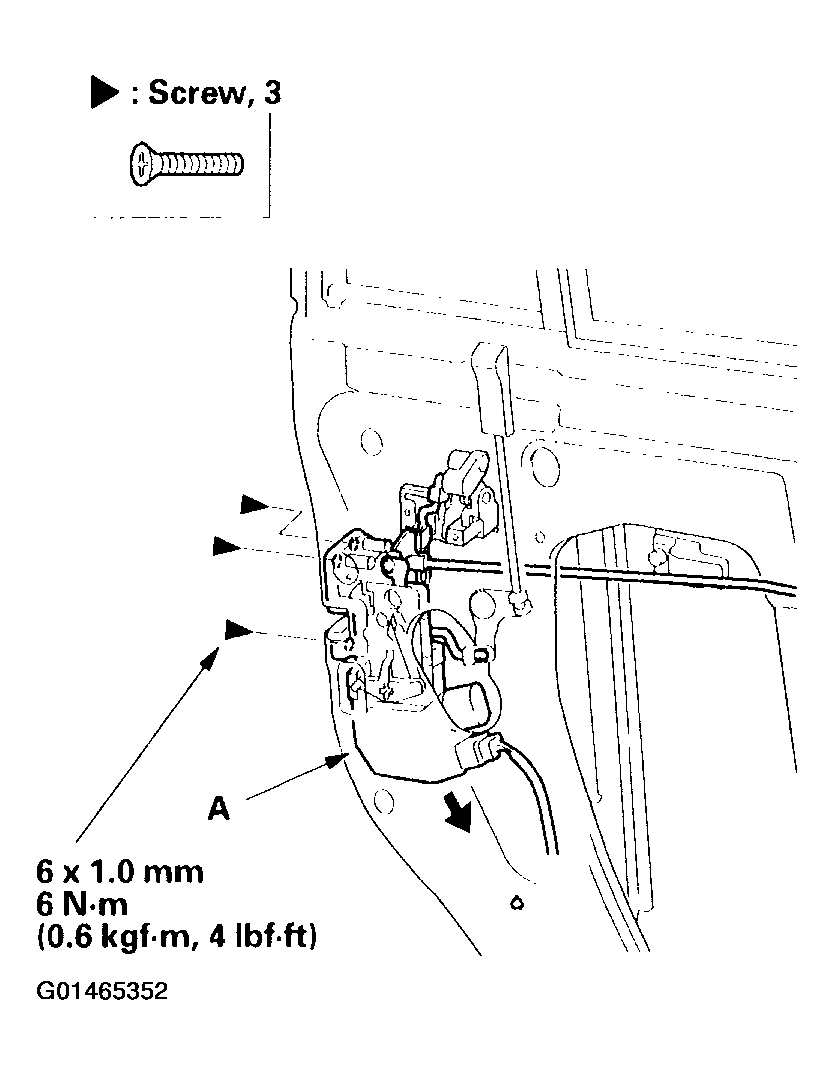

Remove the screws securing the latch (A), then lower the latch.

Fig 2: Locating Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the maintenance seal (A), then disconnect the outer handle rod (B).

Fig 3: Disconnecting The Outer Handle Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.

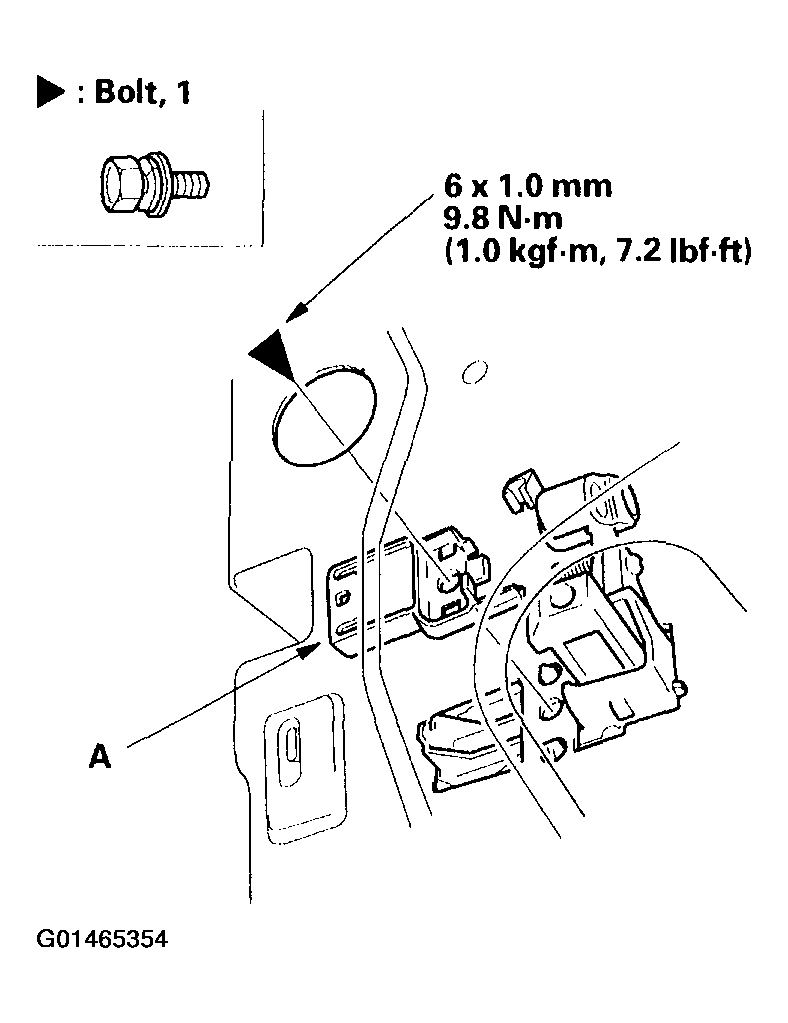

Remove the bolt, then remove the protector (A).

Fig 4: Removing The Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt, then remove the spacer (A).

Fig 5: Removing The Spacer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

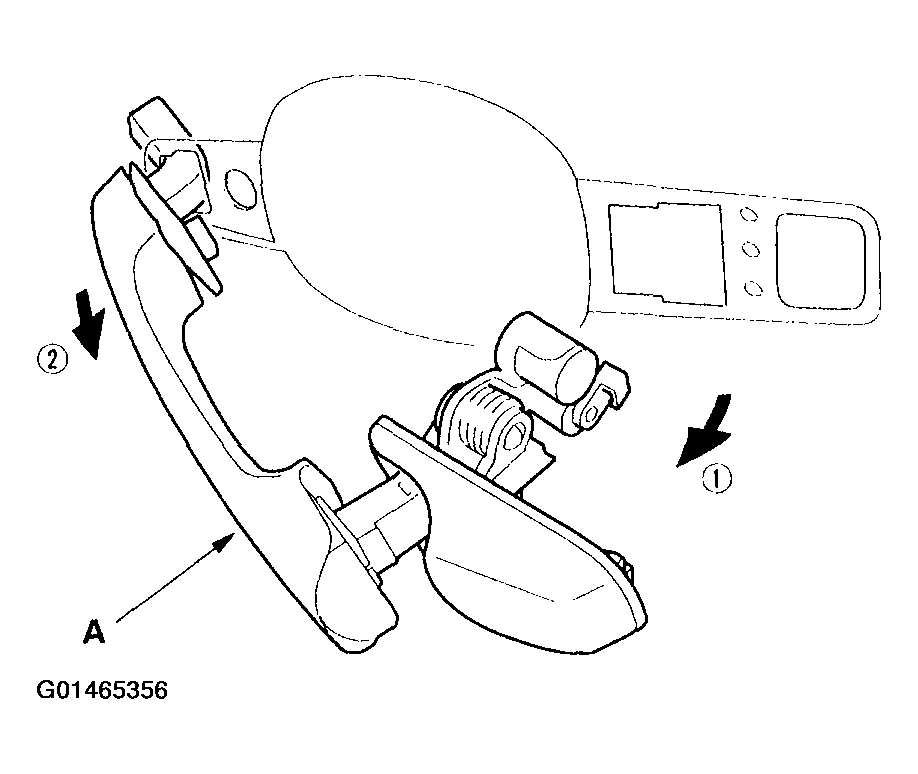

While pulling the outer handle (A), remove the handle from the holes in the door. Take care not to scratch the door.

Fig 6: Removing The Outer Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the handle in the reverse order of removal, and note these items:
- Make sure the outer handle rod is connected securely.
- Make sure the door locks and opens properly.
- Make sure the childproof door locks operates properly.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its perimeter.
