Piston, Pin & Connecting Rod Replacement: Disassembly

  1. Remove the piston from the cylinder block (see Crankshaft & Piston Removal  ).
    2. NOTE: Take care not to damage the ring grooves.
    Fig 1: Lining Up Piston Pin Snap Ring Gaps With Cutouts In Piston Pin Bores
    G01463820Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Apply new engine oil to the piston pin snap rings (A) and turn them in the ring grooves until the end gaps are lined up with the cutouts in the piston pin bores (B).
  3. Remove both snap rings (A). Start at the cutout in the piston pin bore. Remove the snap rings carefully so they do not go flying or get lost. Wear eye protection.
    Fig 2: Removing Snap Rings
    G01463821Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Heat the piston and connecting rod assembly to about 158°F (70°C), then remove the piston pin.

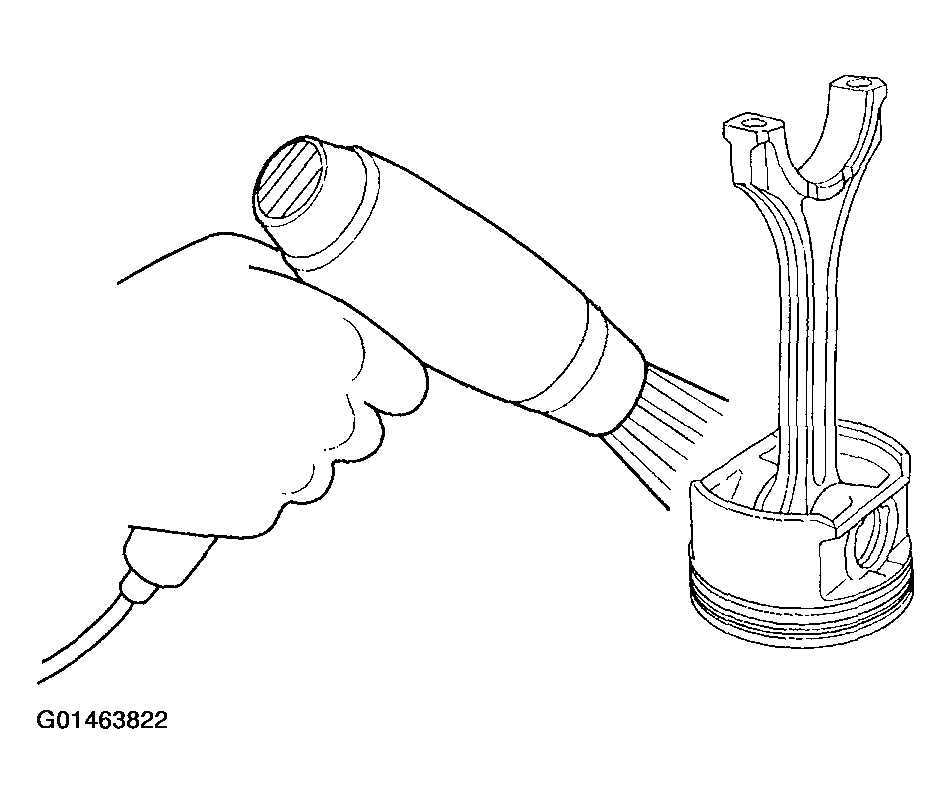

    Fig 3: Heating The Piston & Connecting Rod Assembly
    G01463822Courtesy of AMERICAN HONDA MOTOR CO., INC.
