Ignition Coil Removal/Installation

Remove the intake manifold cover (A) and ignition coil cover (B).

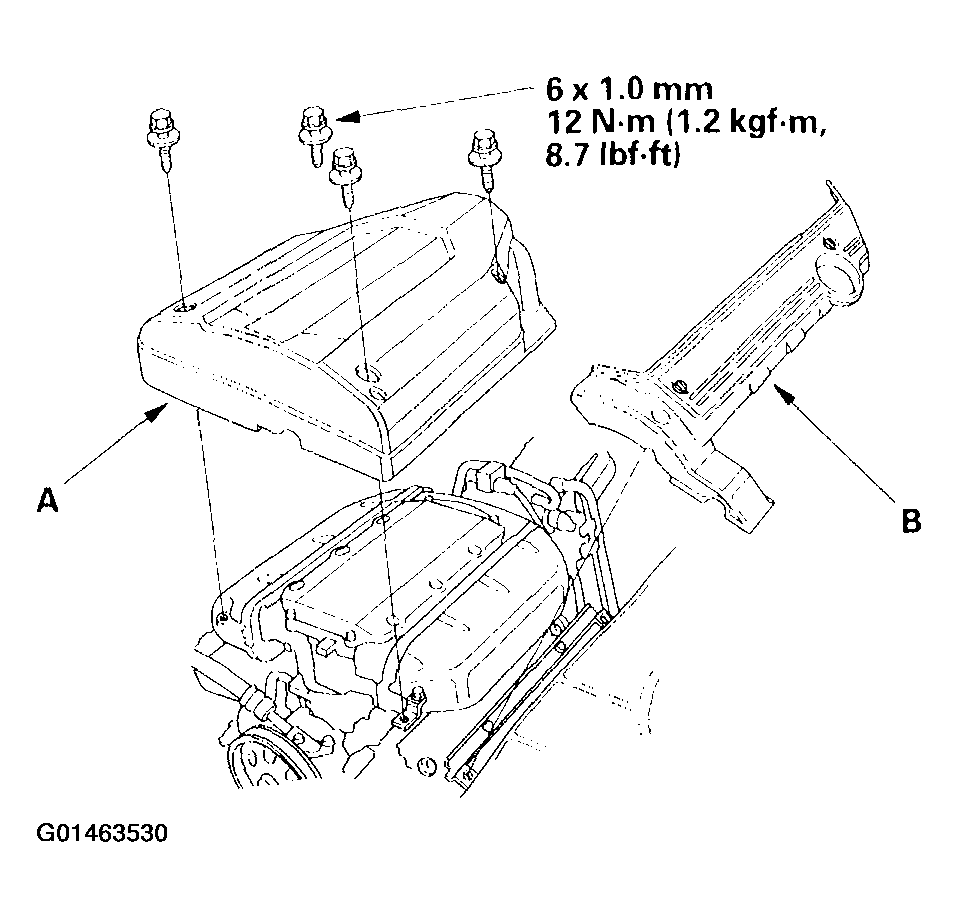

Fig 1: Removing Intake Manifold Cover & Ignition Coil Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the ignition coils.

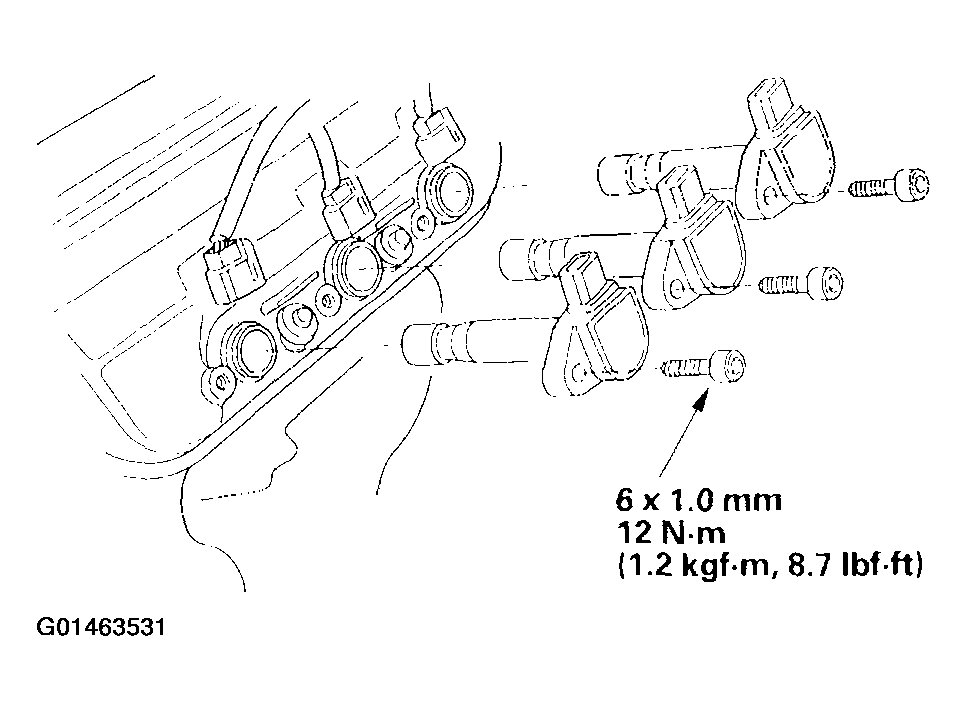

Fig 2: Removing Ignition Coils
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coils in the reverse order of removal.
