Air Cleaner Removal/Installation
Remove the cable clamp (A), and the bolts (B).

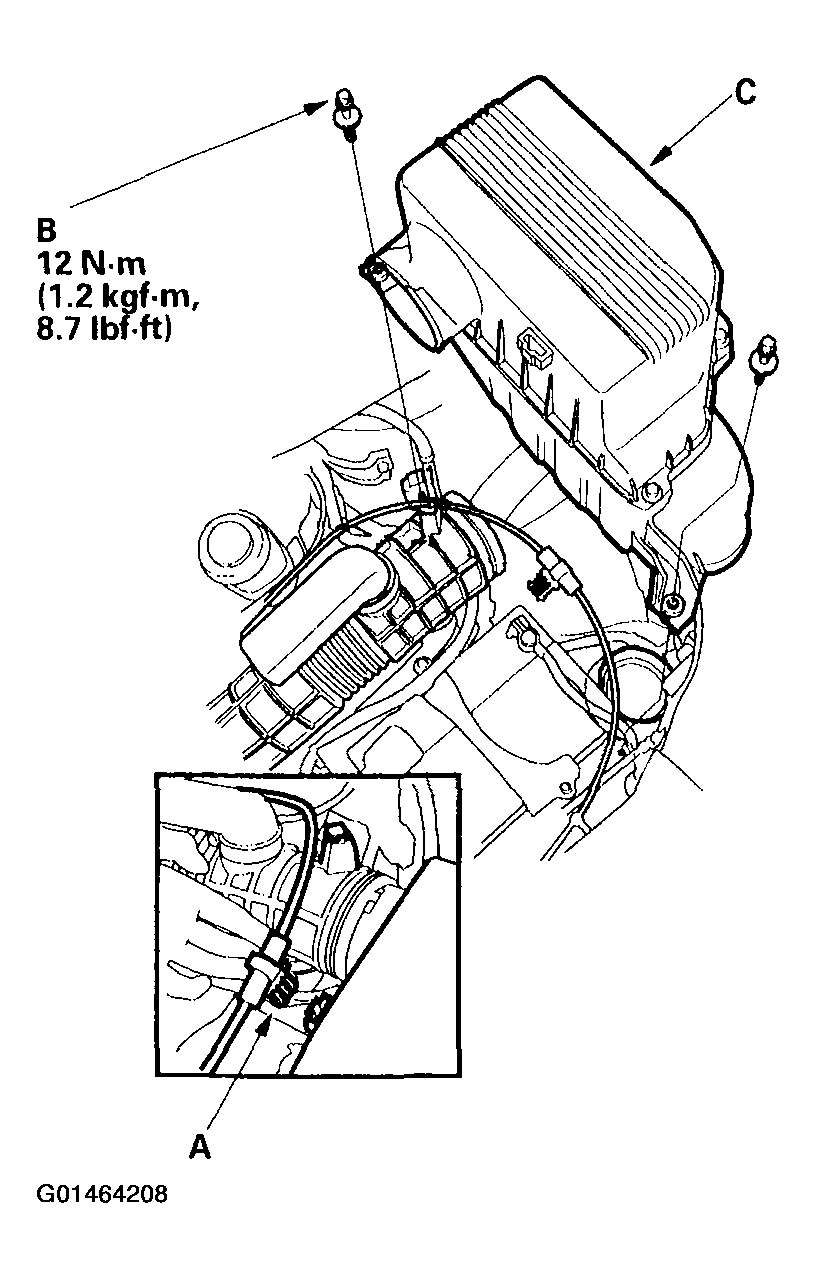

Fig 1: Removing The Cable Clamp & The Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (C).
Install the parts in the reverse order of removal.
