Knock Sensor Replacement

Remove the intake manifold (see INTAKE MANIFOLD REMOVAL & INSTALLATION ).
Disconnect the knock sensor connector, then remove the knock sensor (A).

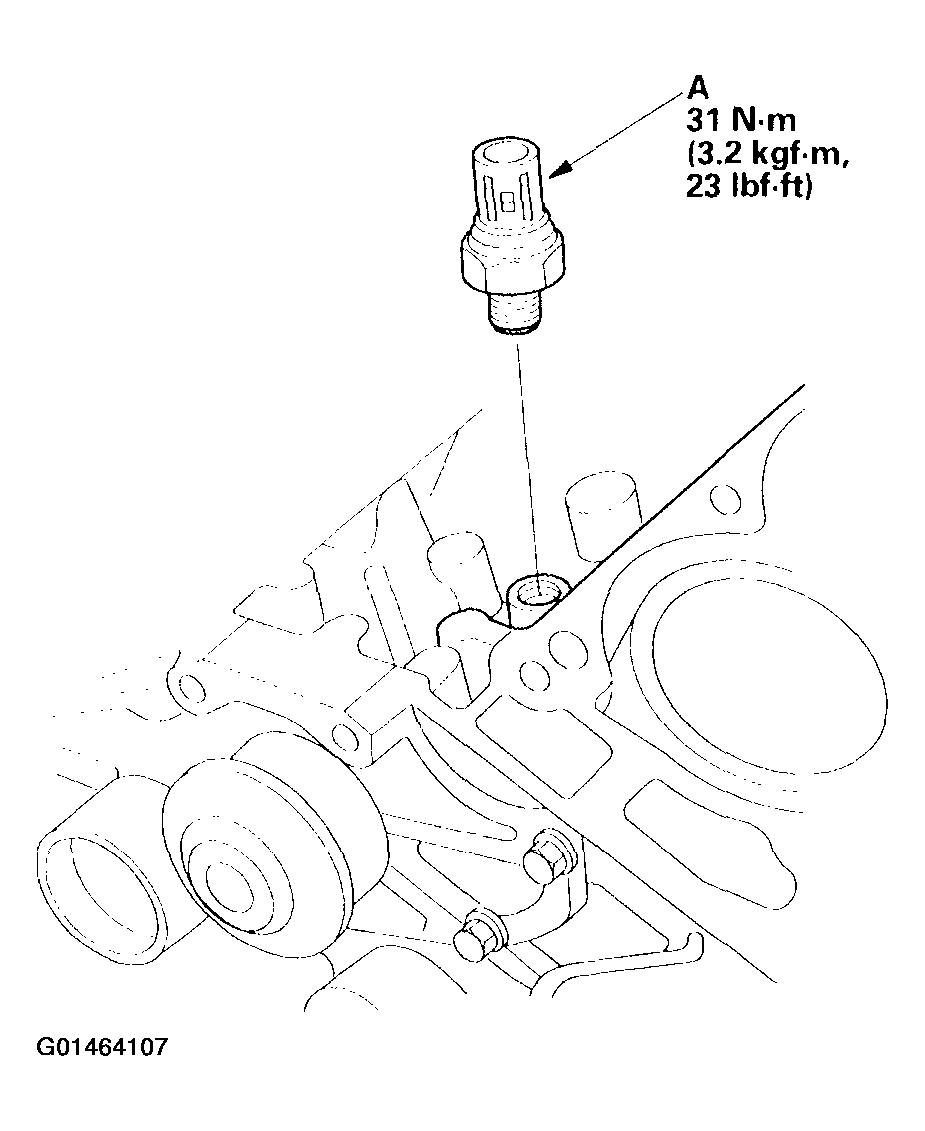

Fig 1: Removing The Knock Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal.
