Chassis & Paint Codes
Chassis & Paint Codes

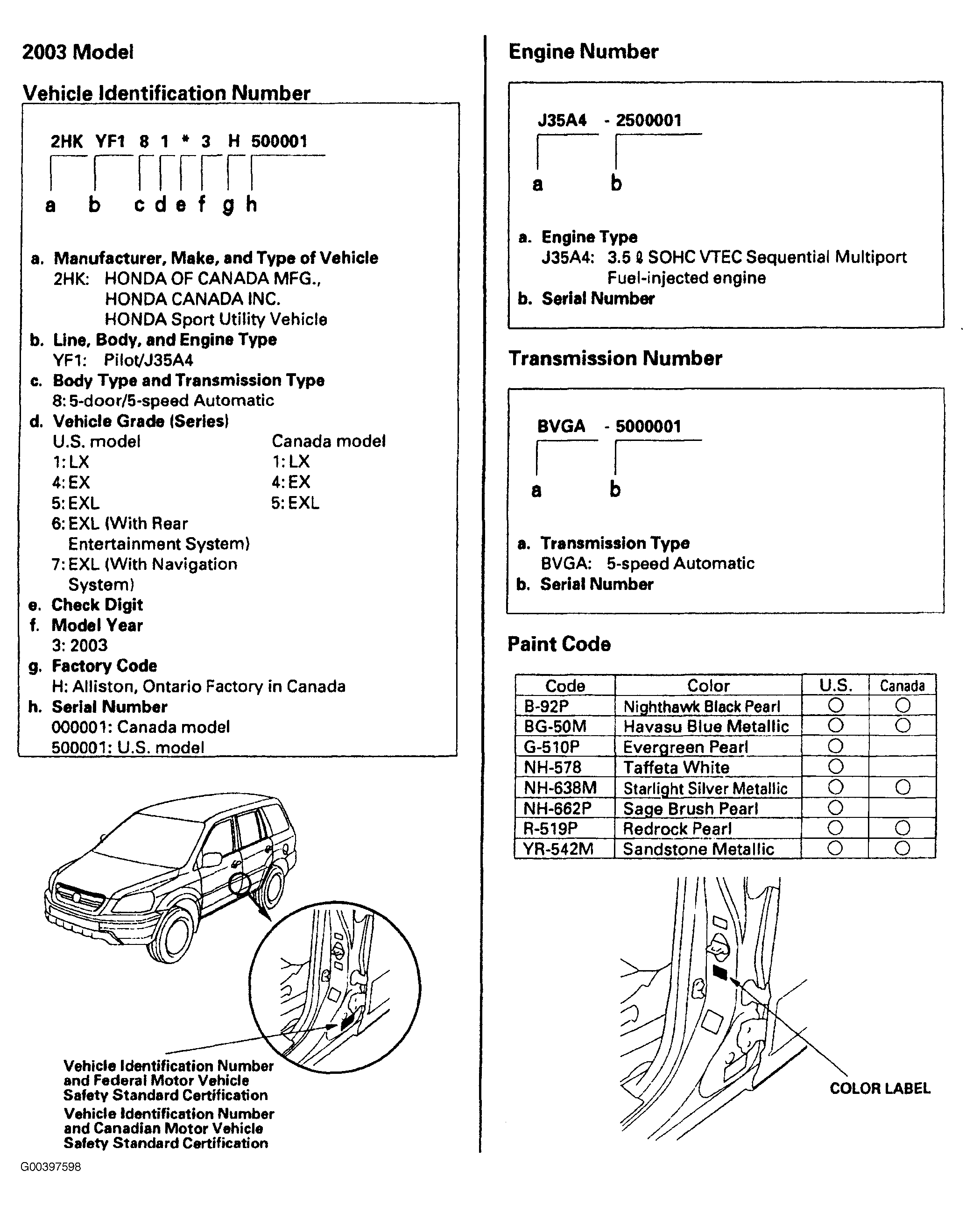

Fig 1: Chassis & Paint Codes (2003 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

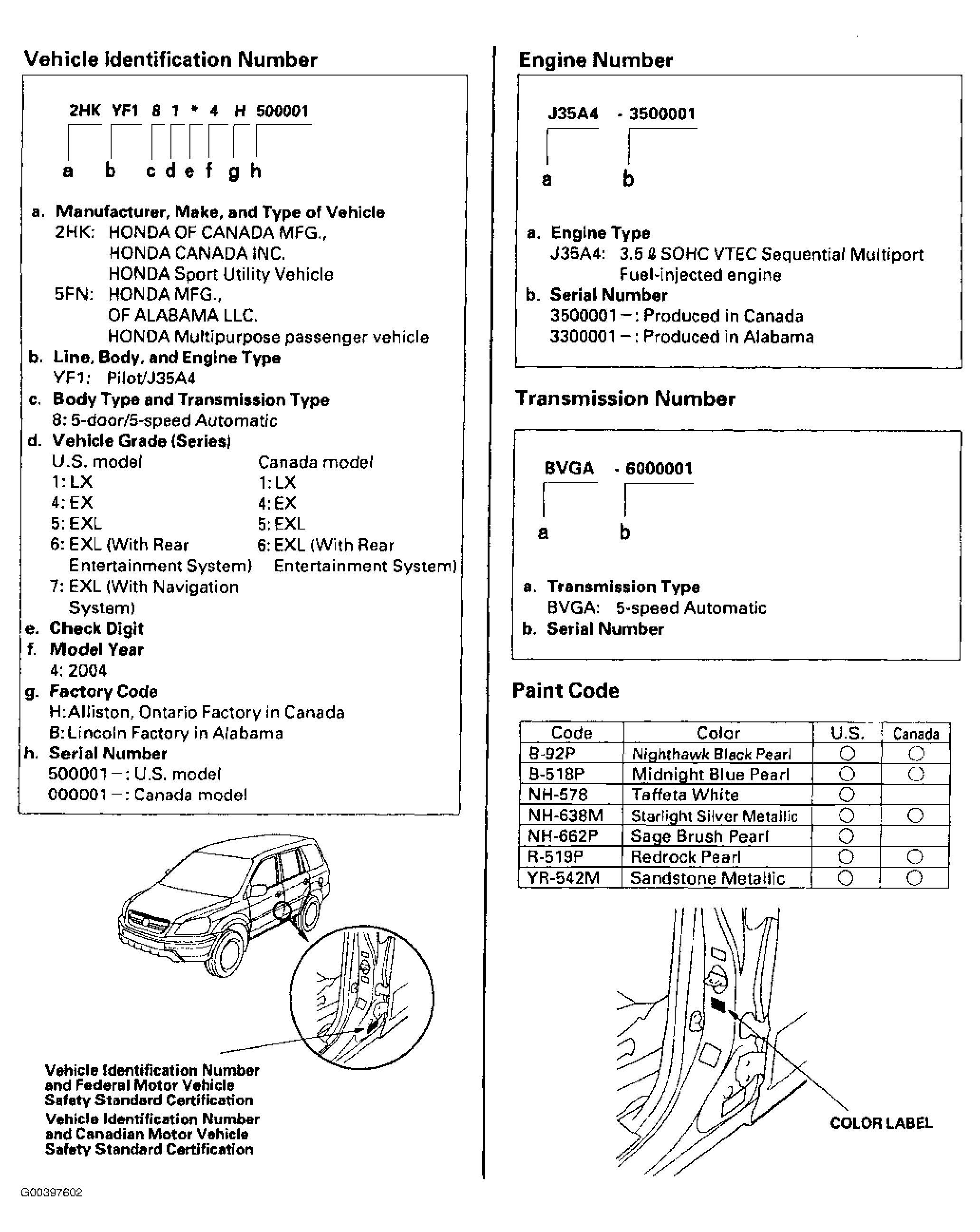

Fig 2: Chassis & Paint Codes (2004 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
