Symptom Troubleshooting Index
Symptom Troubleshooting Index

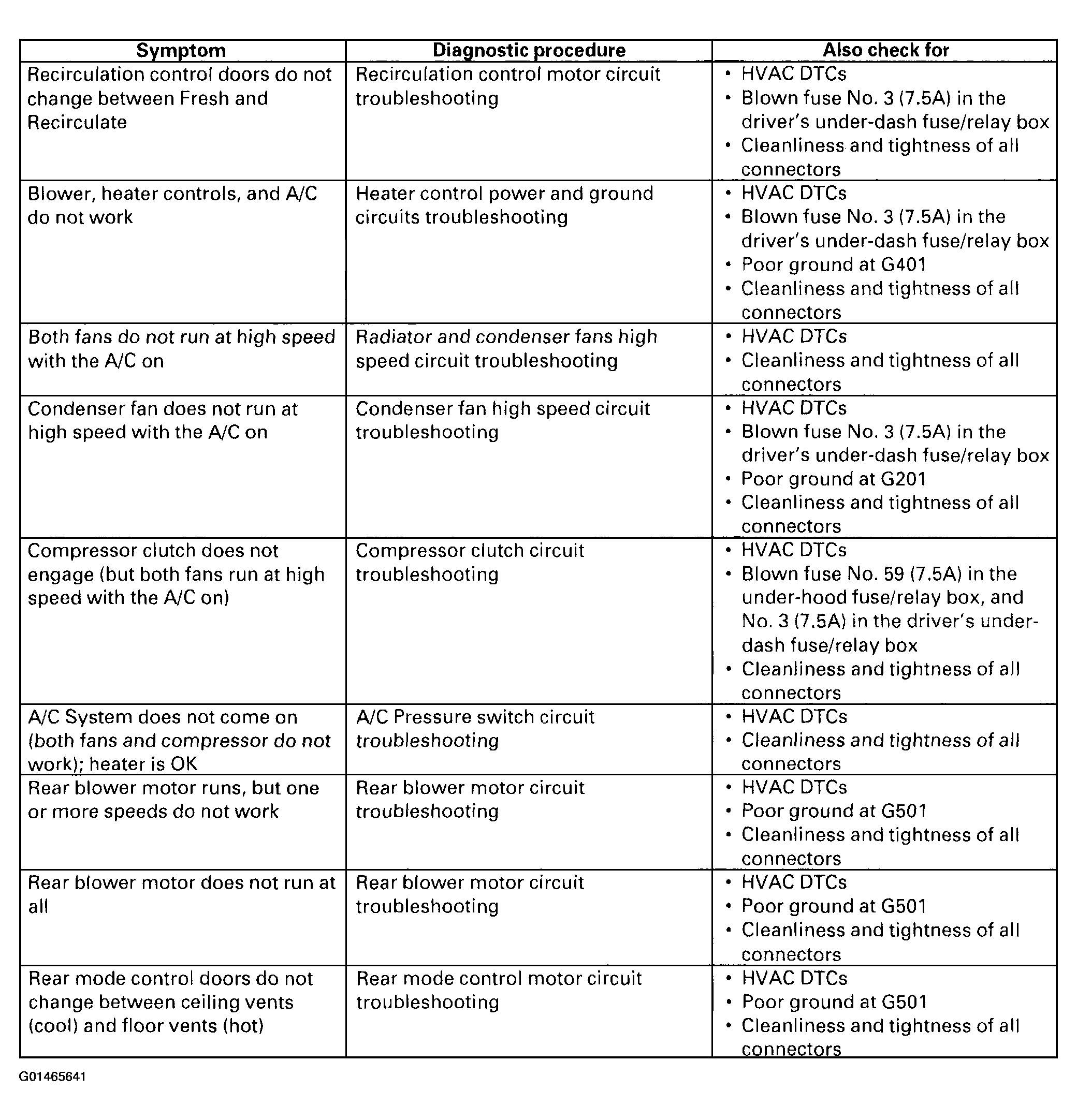

Fig 1: Symptom Troubleshooting Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
