DTC Troubleshooting Index

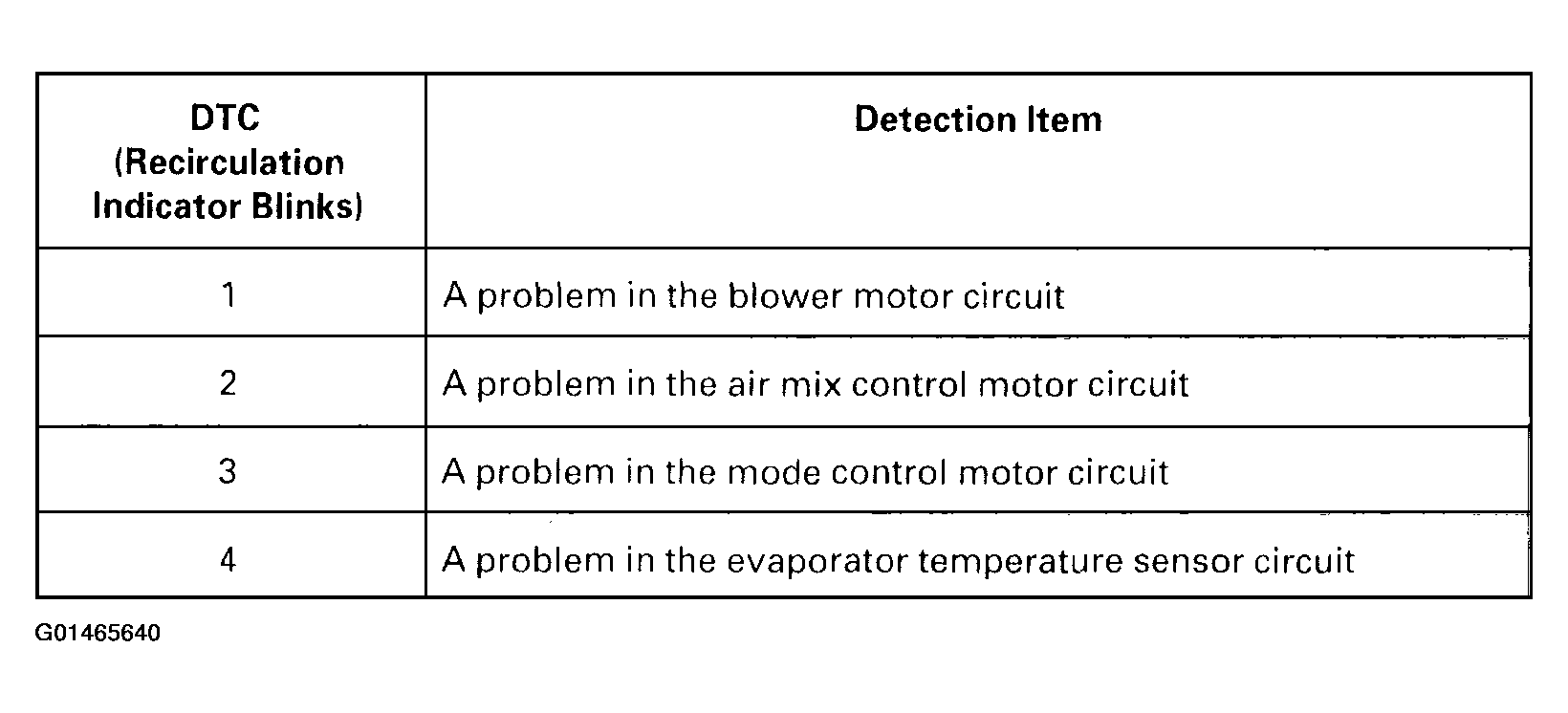

Fig 1: DTC Troubleshooting Index

Courtesy of AMERICAN HONDA MOTOR CO., INC.

In case of multiple problems, the recirculation indicator will indicate only the DTC with the least number of blinks.

In case of an intermittent failure, the heater control panel will store the DTC until the ignition is turned off.
