Gauge Assembly Connector End View
Gauge Assembly Connector End View

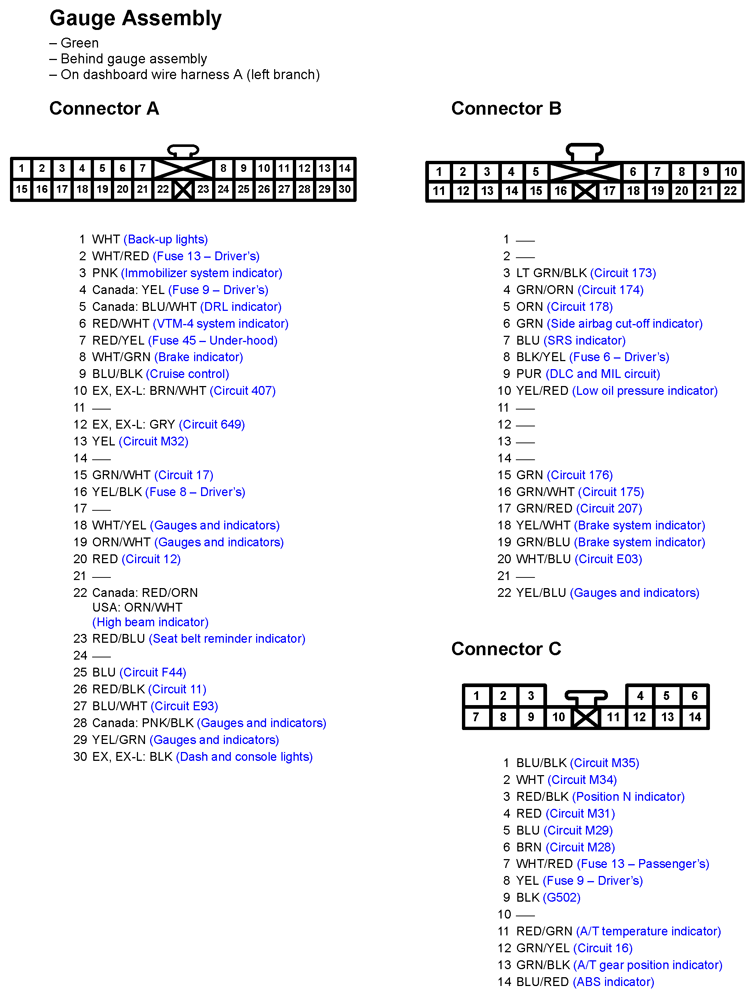

Fig 1: Gauge Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
