Home › Honda › 2005 › CR-V EX, Automatic › Repair and Diagnosis › Engine Performance › System › EVAP System › Component Location Index

Component Location Index

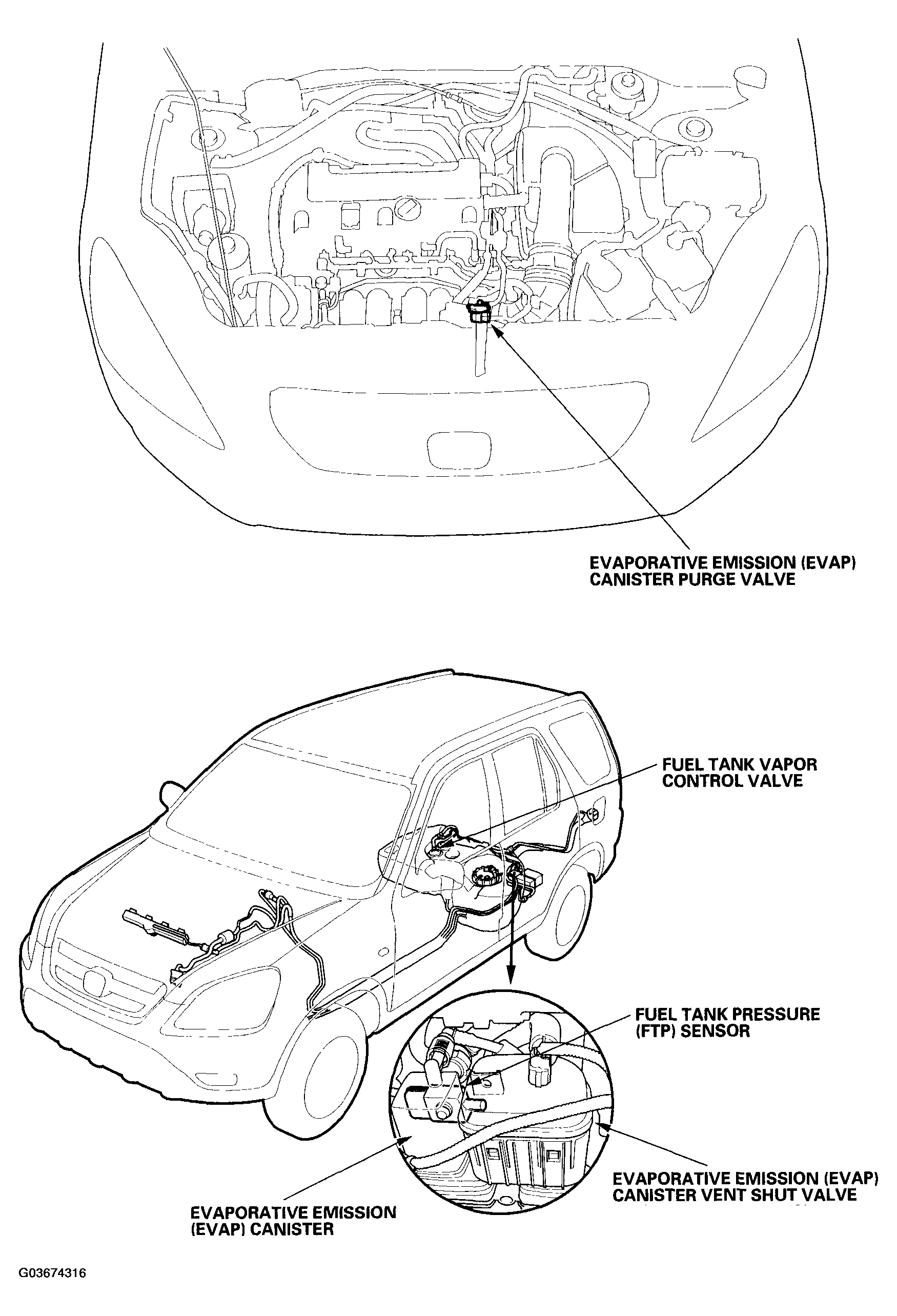

Fig 1: Identifying EVAP System Component Locations
G03674316Courtesy of AMERICAN HONDA MOTOR CO., INC.
