CKP Sensor Replacement

Disconnect the CKP sensor 3P connector.
Remove the CKP sensor (A).

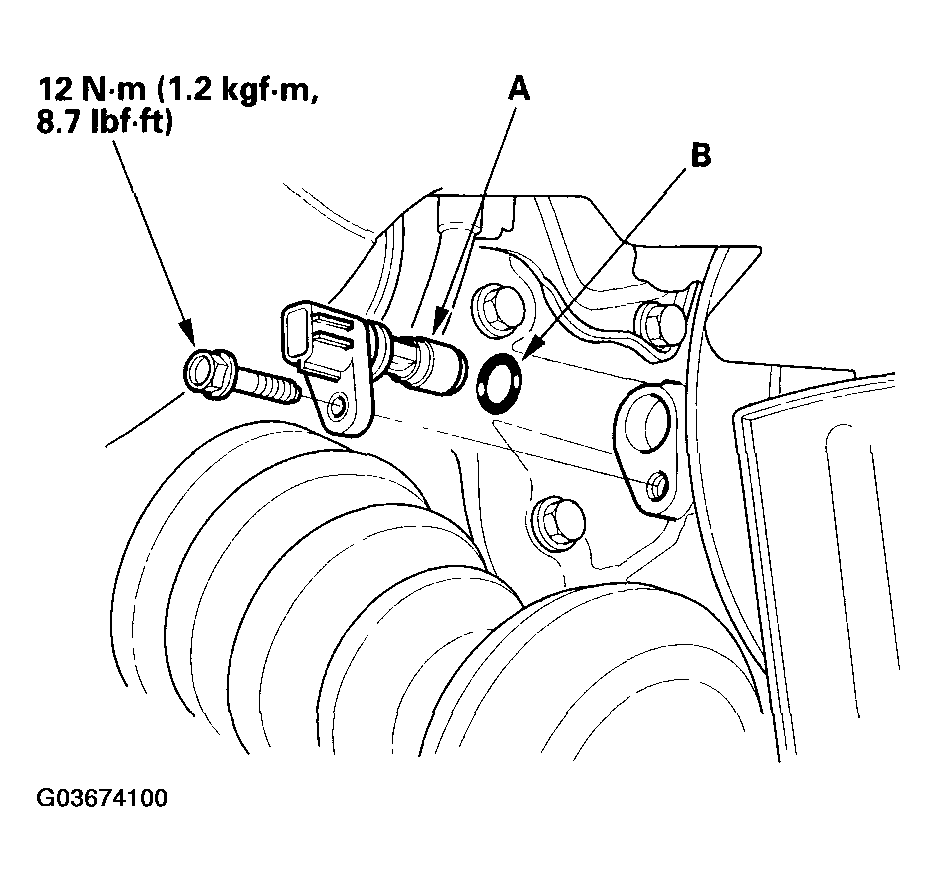

Fig 1: Removing CKP Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal with a new O-ring (B).
Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
