Tailgate Stop Assembly Replacement

NOTE:
  • Take care not to scratch the tailgate.
  • Put on gloves to protect your hands.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the tailgate rod (A) at the lower end from the clip (B) of the tailgate latch.
    NOTE: Check for damaged clips, and replace it if necessary.

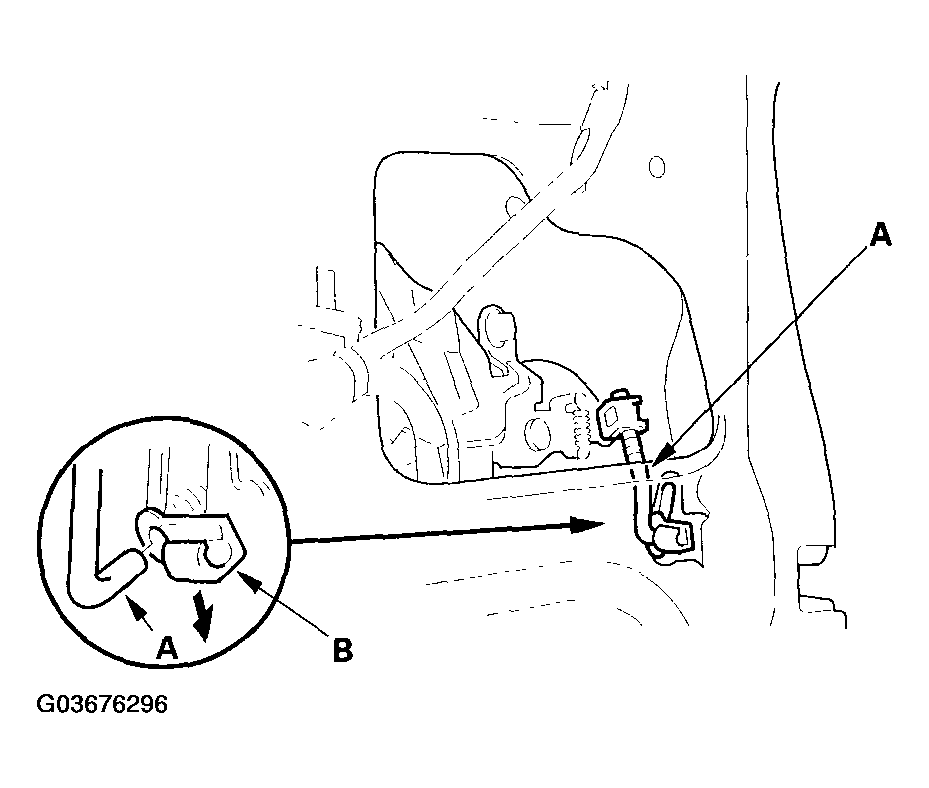

    Fig 1: Disconnecting The Tailgate Rod At The Lower End From The Clip Of The Tailgate Latch
    G03676296Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts, then remove the tailgate stop assembly (A).

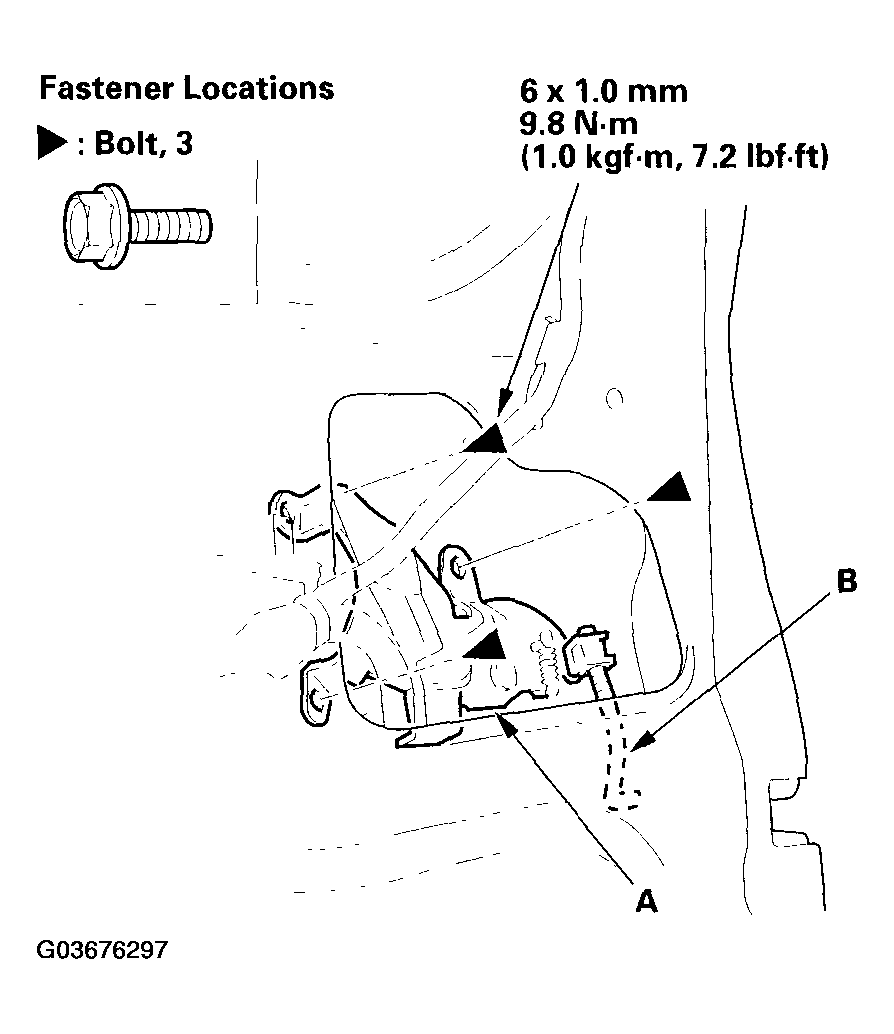

    Fig 2: Removing The Tailgate Stop Assembly With Torque Specifications
    G03676297Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If necessary, disconnect the tailgate rod (B) from the tailgate stop assembly.
  5. Install the stop assembly in the reverse order of removal, and note these items:
    • Make sure the tailgate rod is connected securely. If you removed the tailgate rod from the tailgate stop assembly, adjust the rod when reinstalling it (see step  3 ).
    • Make sure the tailgate opens properly.
