Component Location Index

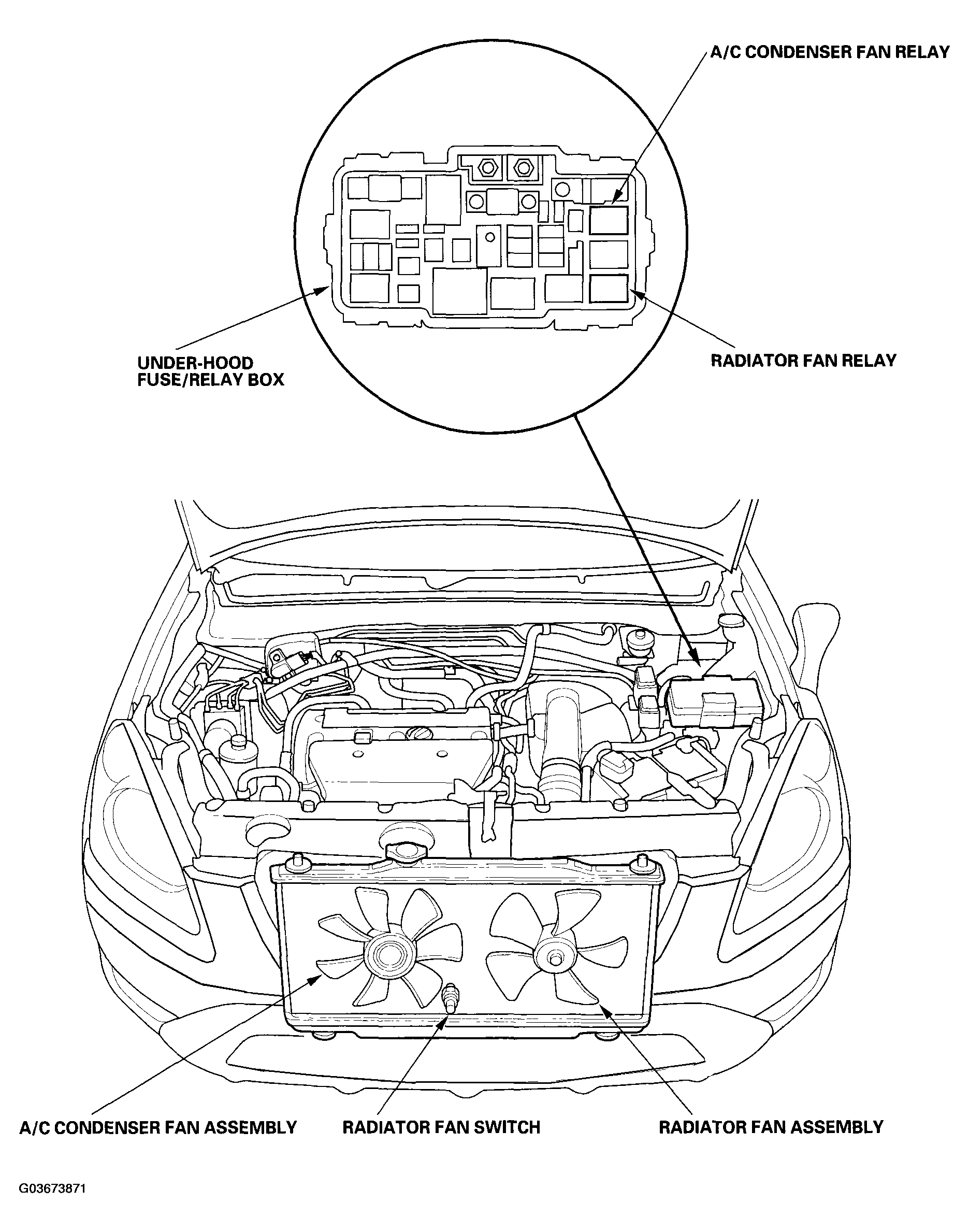

Fig 1: Identifying Components Location
G03673871Courtesy of AMERICAN HONDA MOTOR CO., INC.
