Home › Honda › 2005 › CR-V EX, Standard › Repair and Diagnosis › Engine Mechanical › Starter › Starting System › Component Location Index

Component Location Index

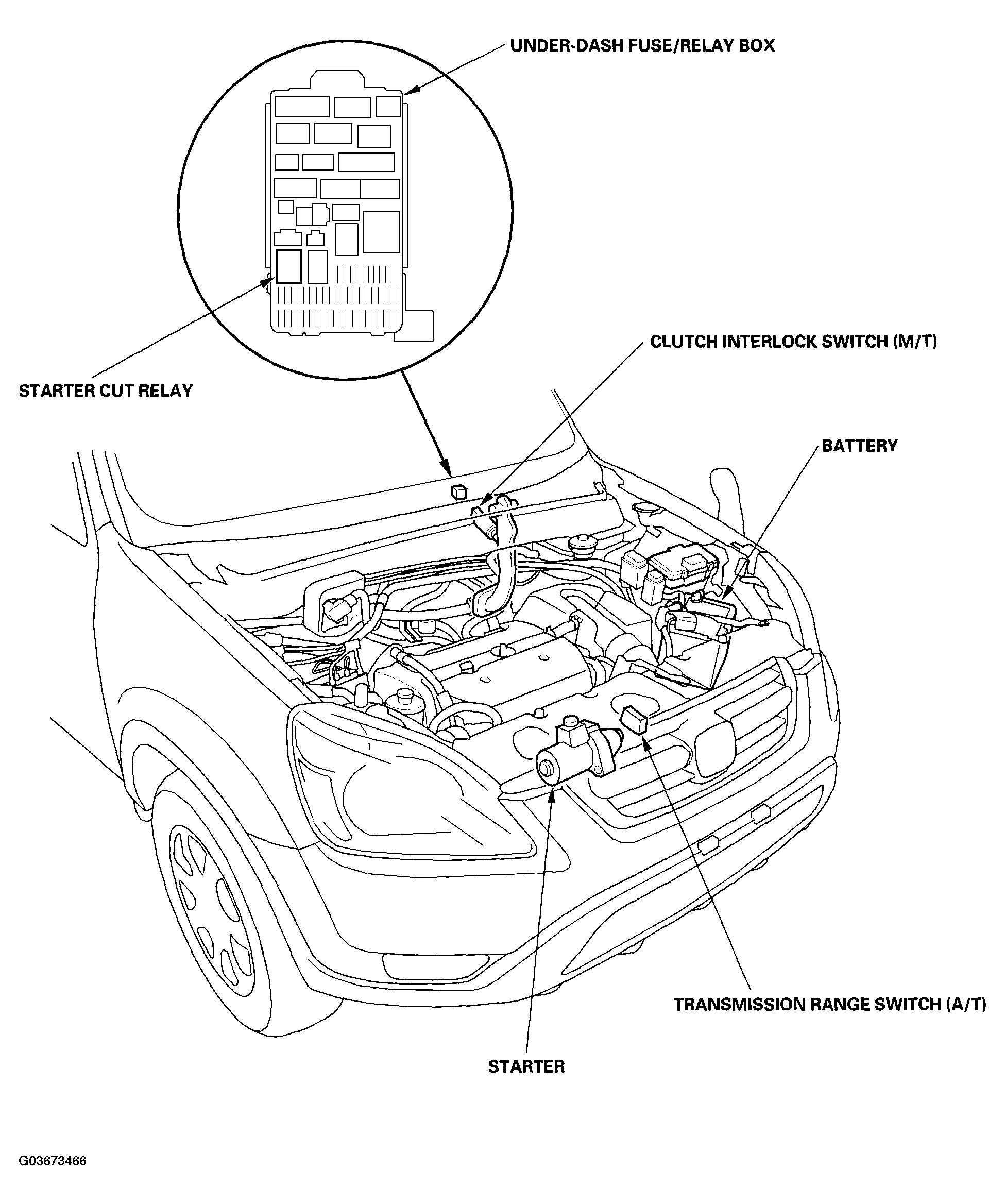

Fig 1: Identifying Starting System Components
G03673466Courtesy of AMERICAN HONDA MOTOR CO., INC.
