Wheel Sensor Replacement: Notes

NOTE: Install the sensors carefully to avoid twisting the wires.

Front

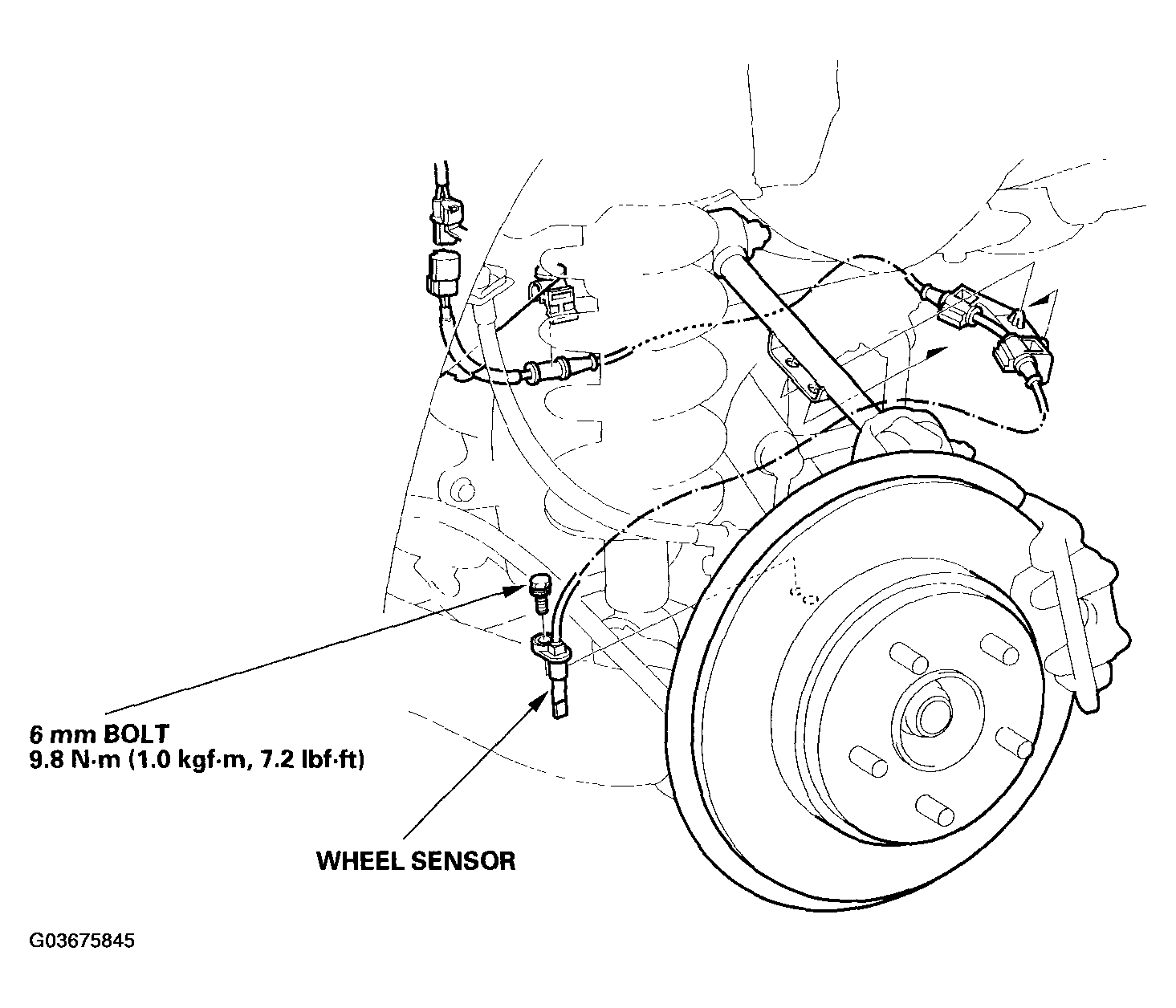

Fig 1: Installing Sensors Carefully To Avoid Twisting Wires (Front) With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

Fig 2: Installing Sensors Carefully To Avoid Twisting Wires (Rear) With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
