CR-V SE
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows
›
Circuit Diagram
Circuit Diagram

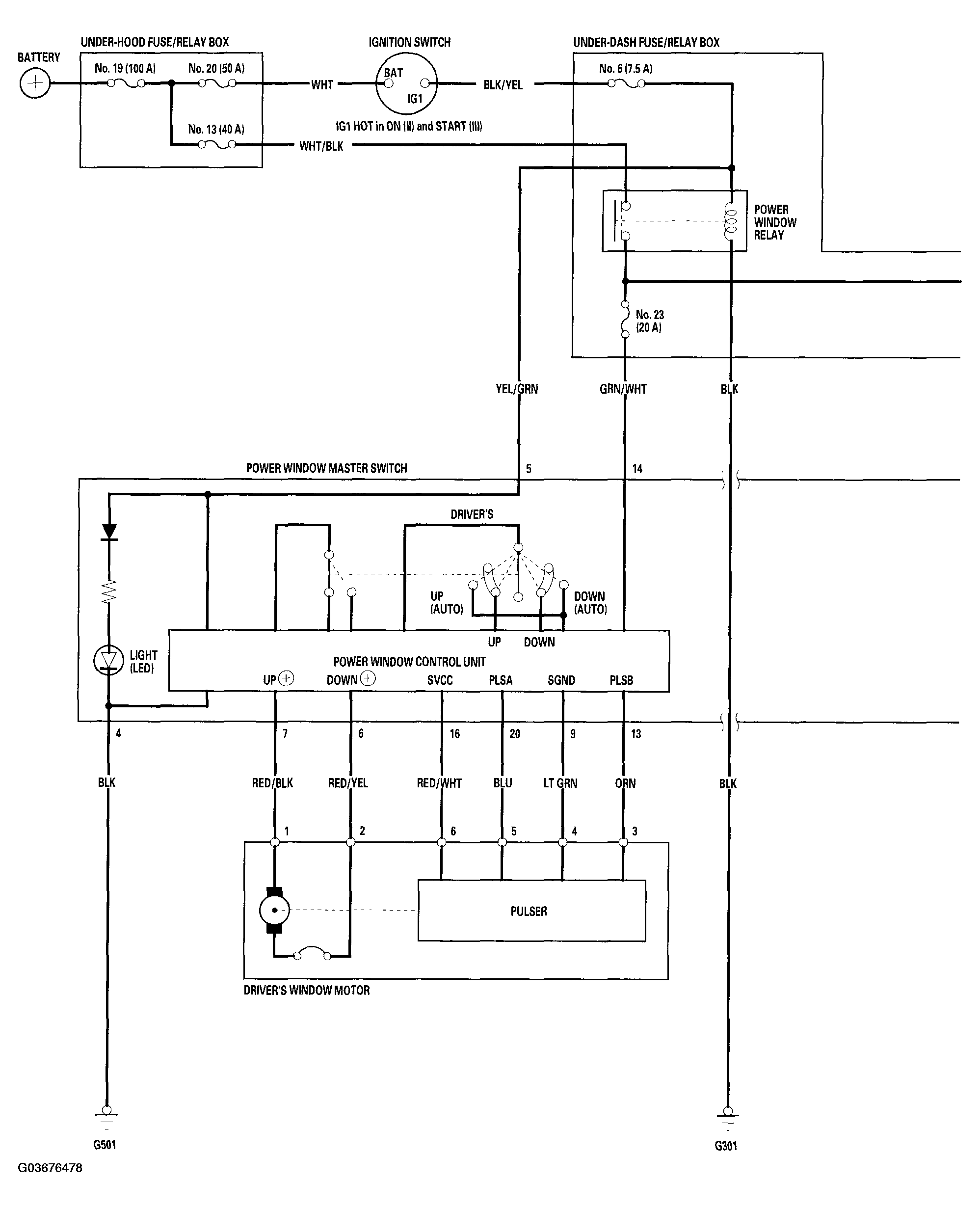

Fig 1: Power Windows Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

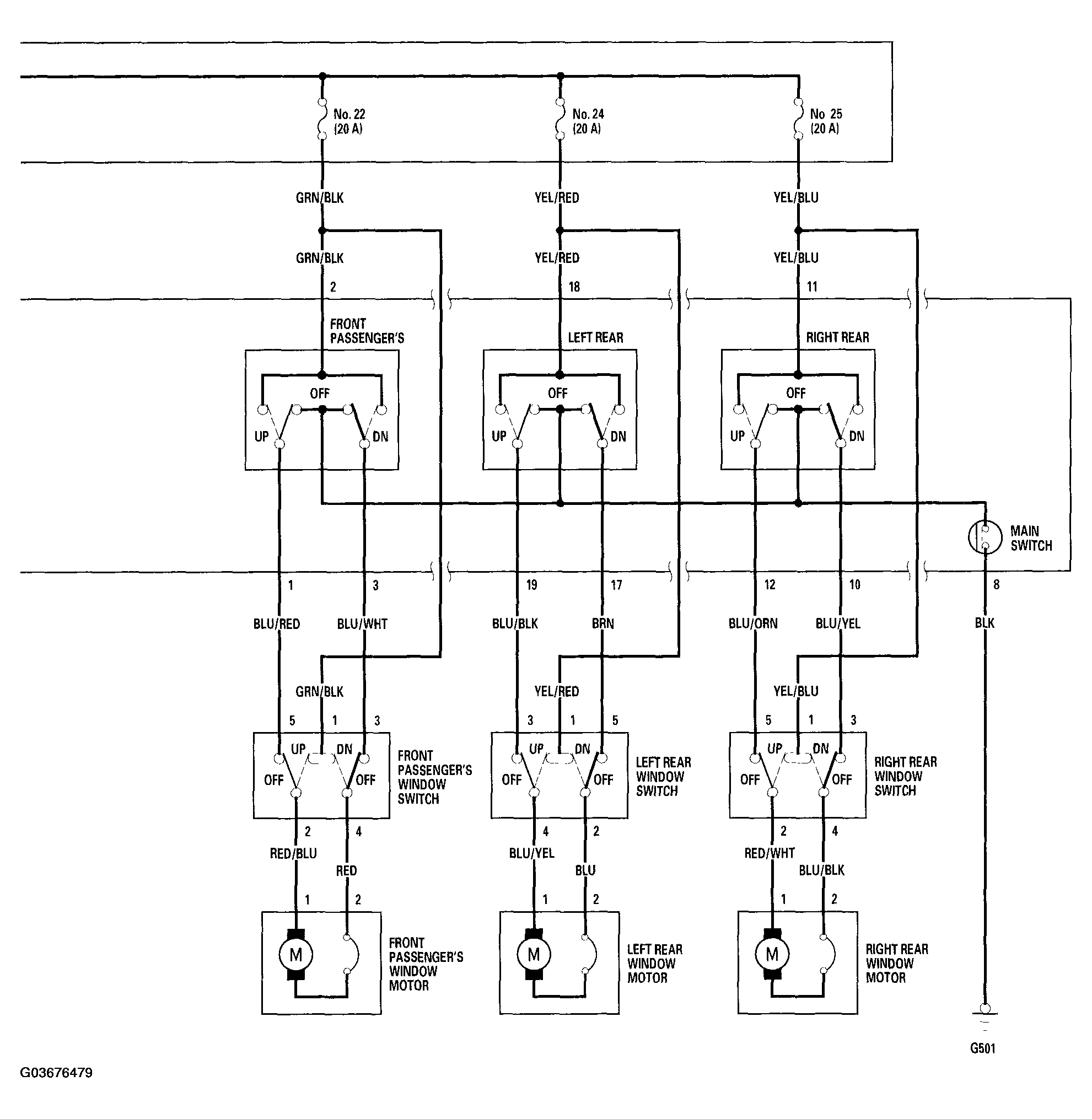

Fig 2: Power Windows Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
