Intake Manifold Removal and Installation
›
Exploded View
Exploded View

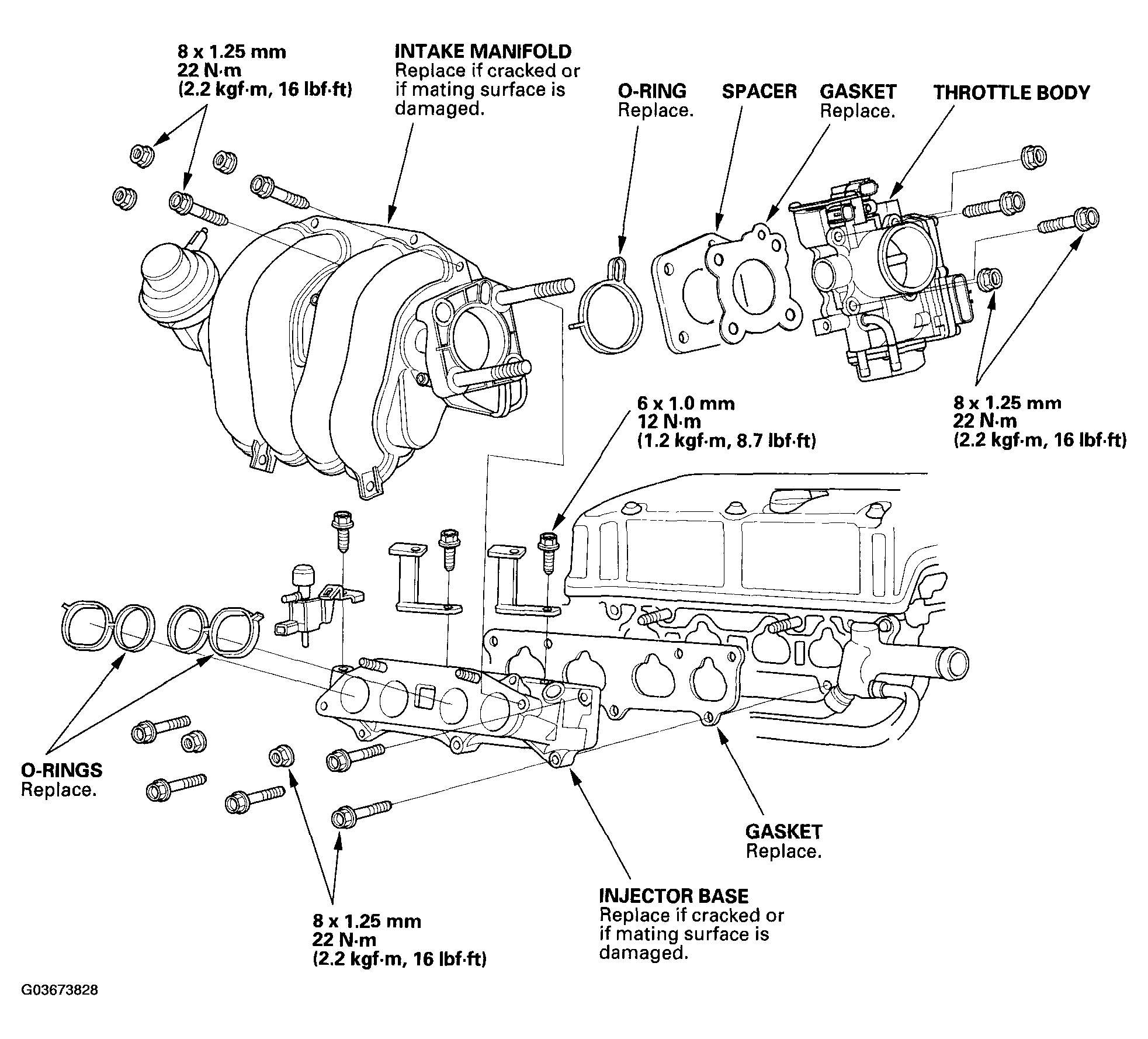

Fig 1: Exploded View Of Intake Manifold & Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
