System Description
›
Vacuum Distribution
Vacuum Distribution

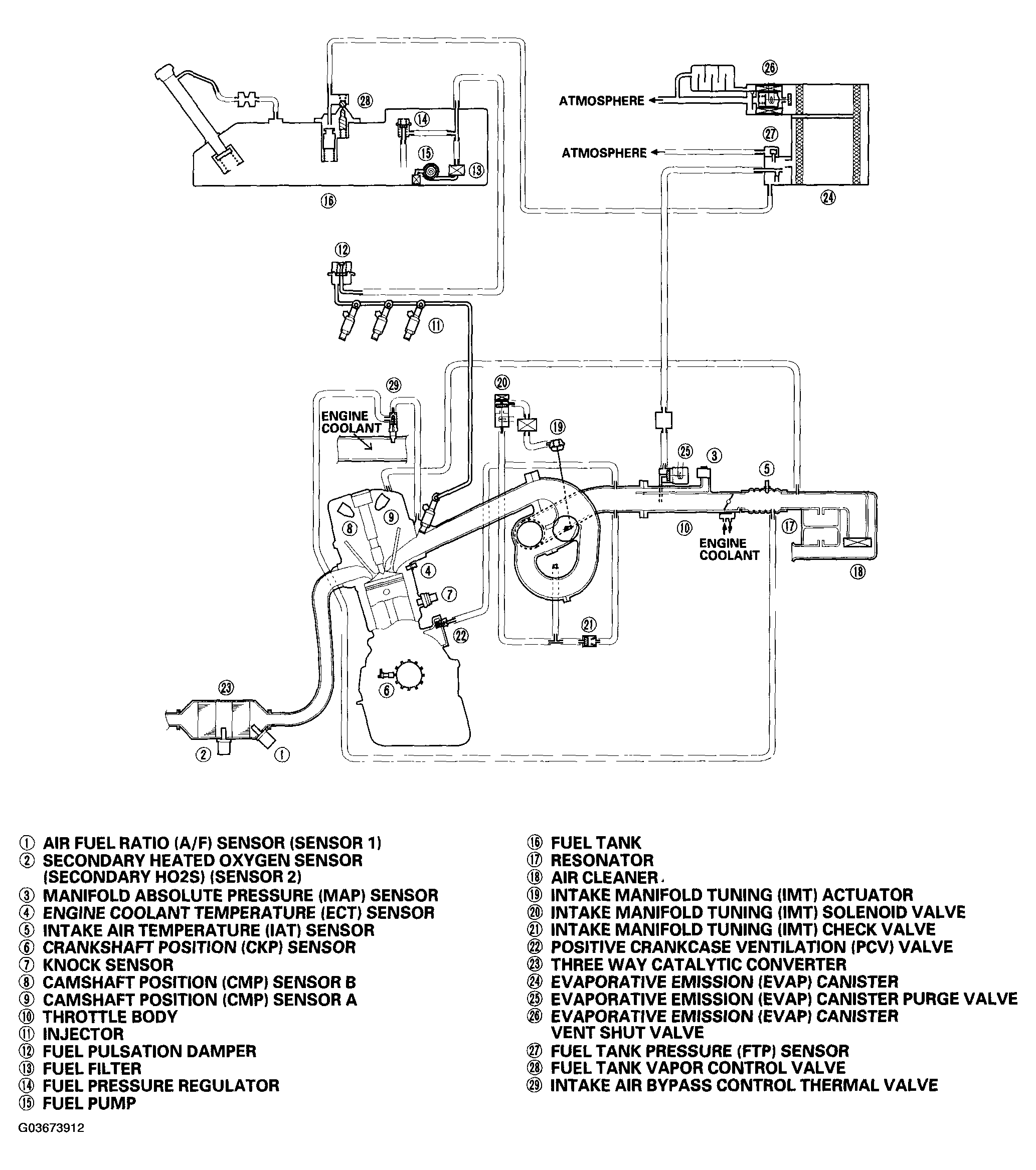

Fig 1: Identifying Fuel And Emission System Vacuum Distribution
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
