Control Unit Input Test

Before testing, troubleshoot the multiplex control system (see MULTIPLEX CONTROL SYSTEM (HATCHBACK) ).
Remove the dashboard lower cover.
Disconnect the under-dash fuse/relay box connectors.
NOTE: All connectors are wire side of female terminals.

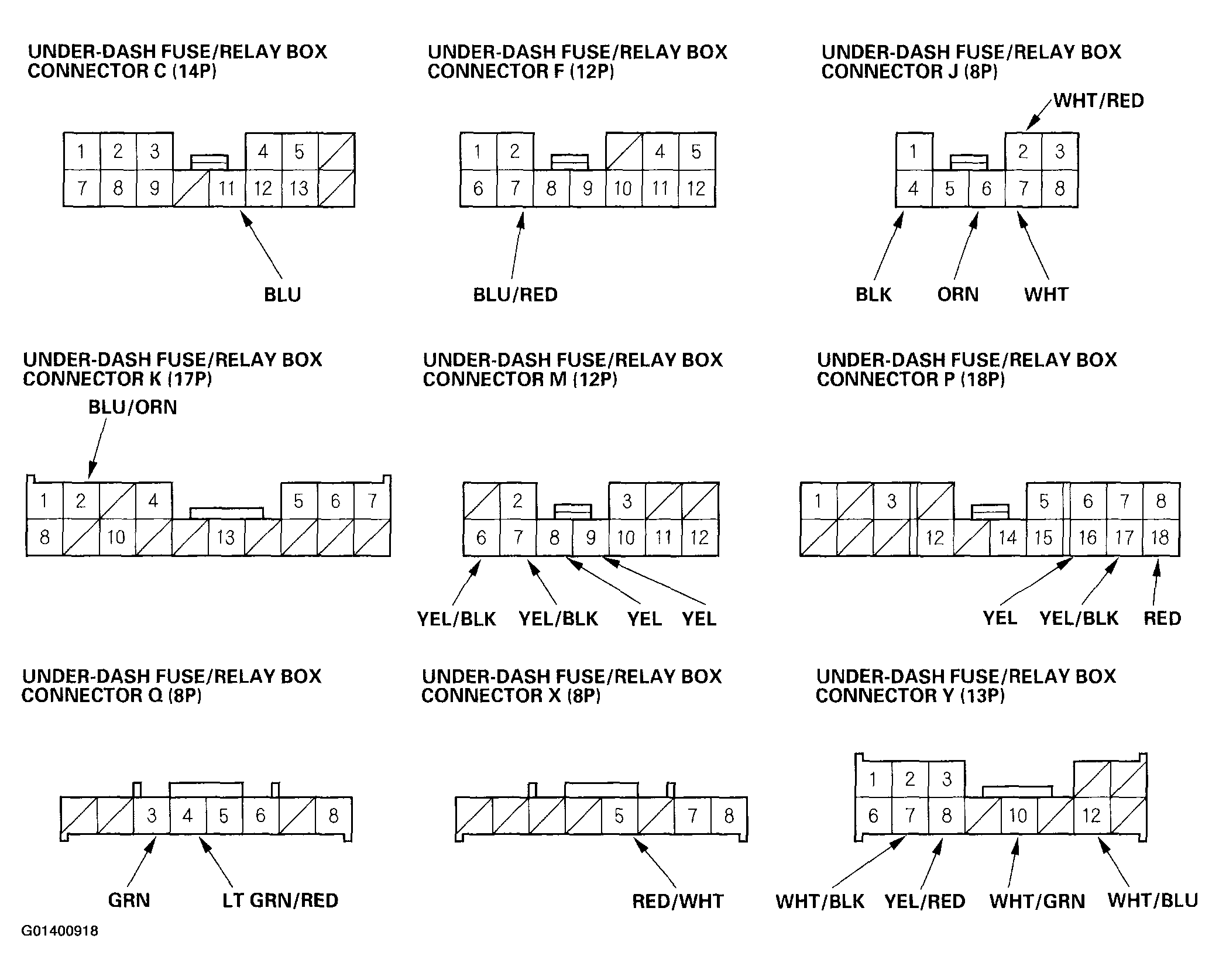

Fig 1: Identifying Control Unit Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.
Reconnect all connections to the under-dash fuse/relay box, turn the ignition switch ON (II) to keep the system awake and make these input tests at the appropriate connectors on the under-dash fuse/relay box.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

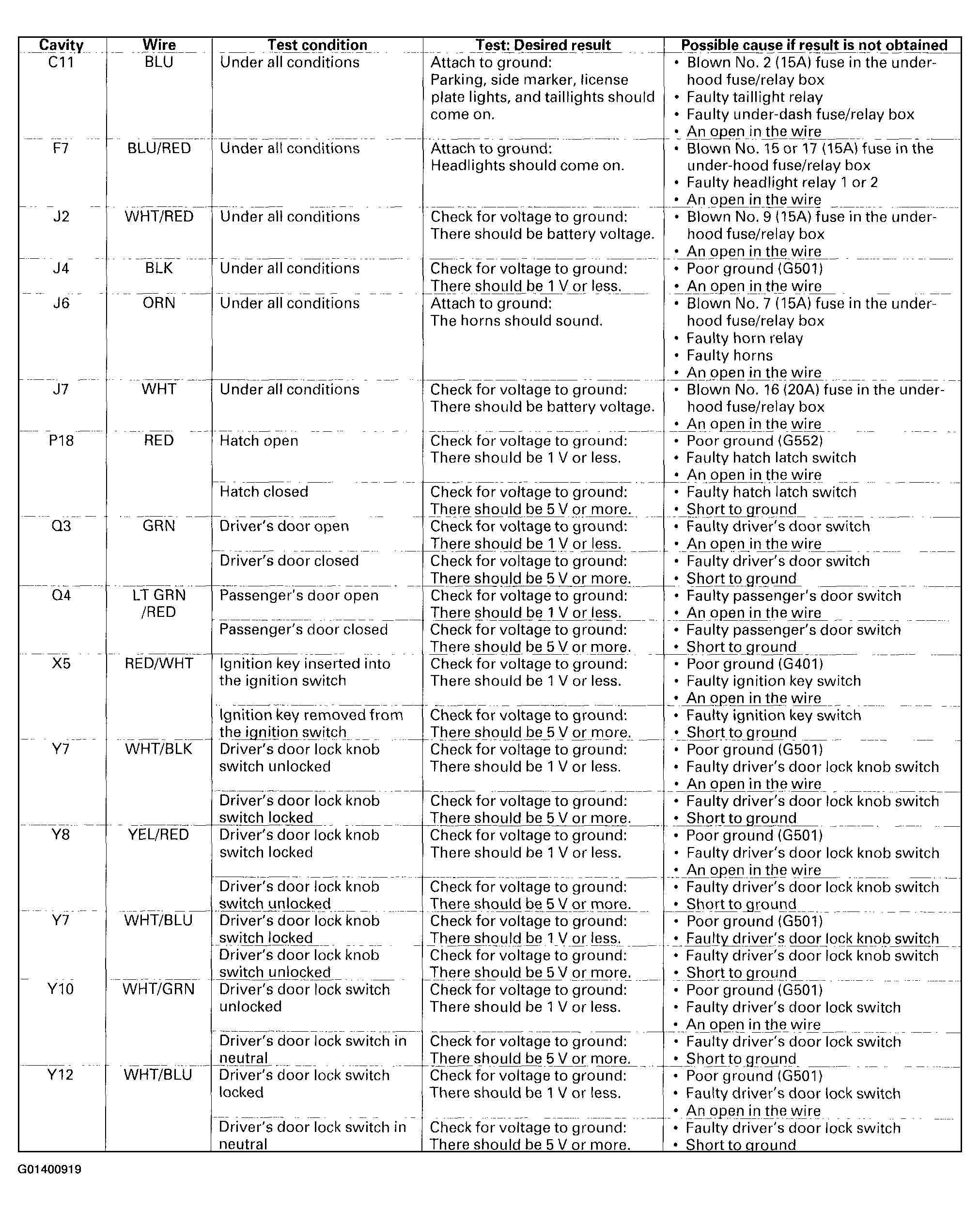

Fig 2: Control Unit Input Test (Connectors Connected)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the M, P, K and J connectors from the under-dash fuse/relay box, and make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the multiplex control unit must be faulty. Replace the under-dash fuse/relay box assembly.

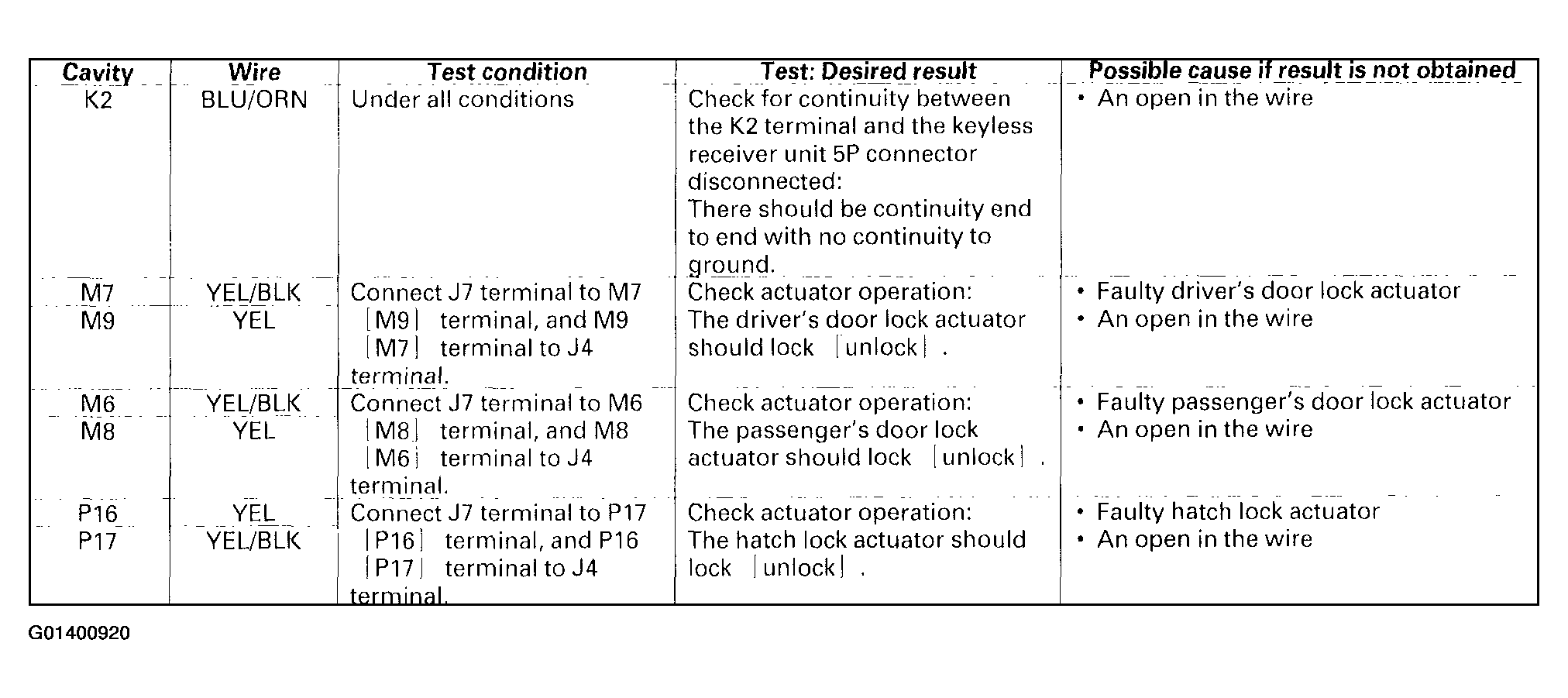

Fig 3: Control Unit Input Test (M, P, K & J Connectors Disconnected)
