Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

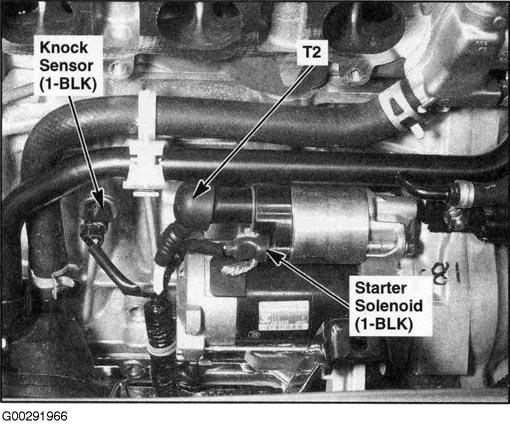

Fig 1: Left Side Of Engine (Intake Removed)

G00291966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

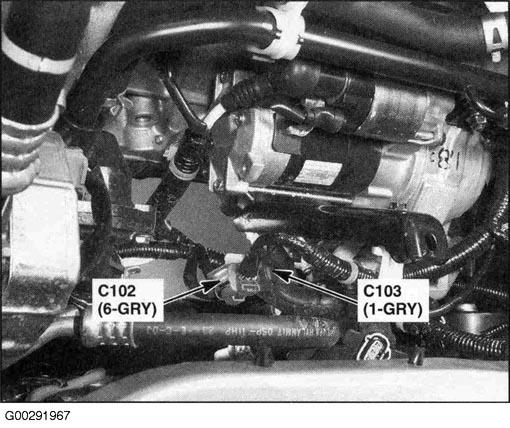

Fig 2: Left Side Of Engine (Intake Removed)

G00291967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

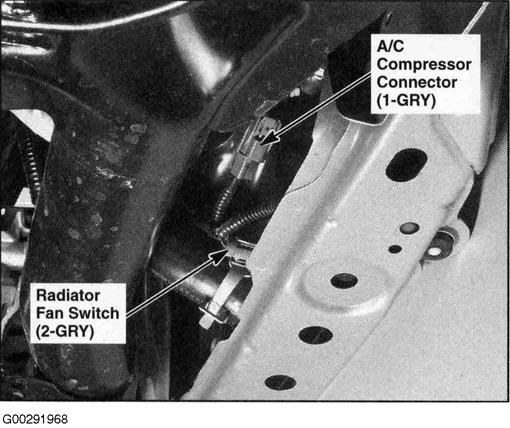

Fig 3: Underside Of Radiator

G00291968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

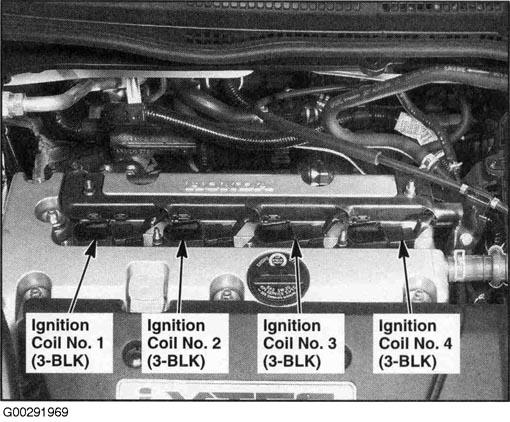

Fig 4: Top Of Engine

G00291969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

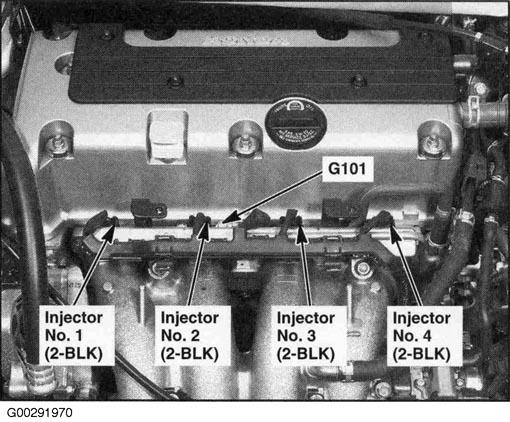

Fig 5: Top Of Engine

G00291970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

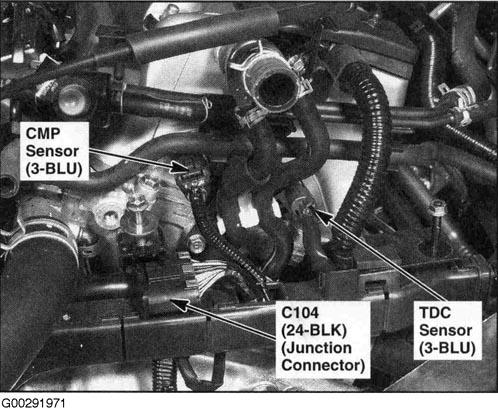

Fig 6: Rear Of Engine

G00291971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

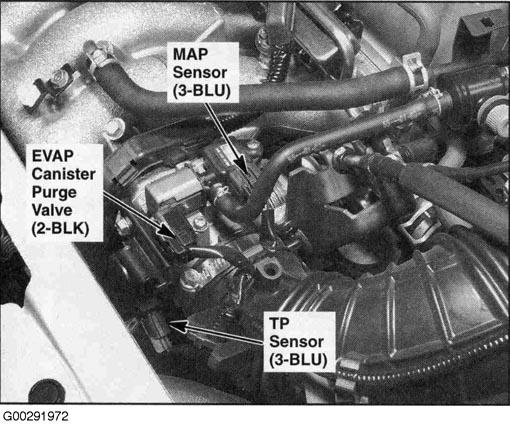

Fig 7: Rear Of Engine

G00291972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

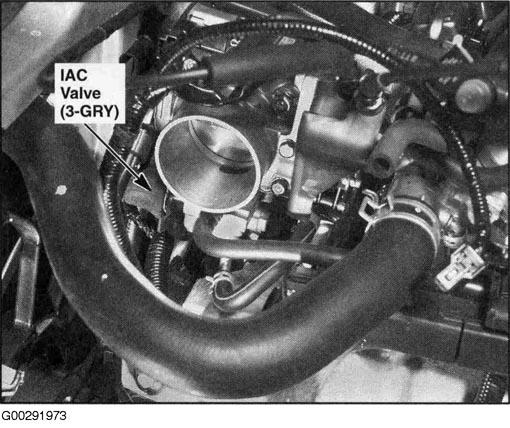

Fig 8: Rear Of Engine

G00291973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

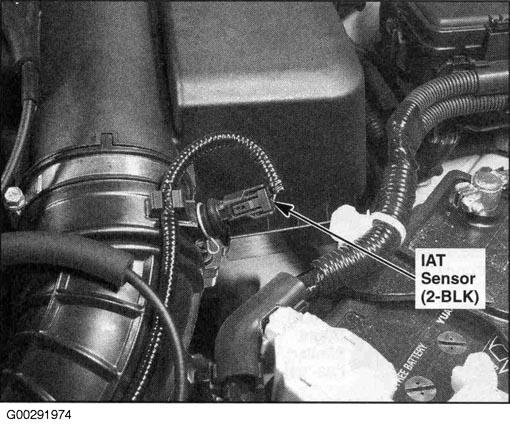

Fig 9: Left Side Of Engine Compartment

G00291974

Courtesy of AMERICAN HONDA MOTOR CO., INC.

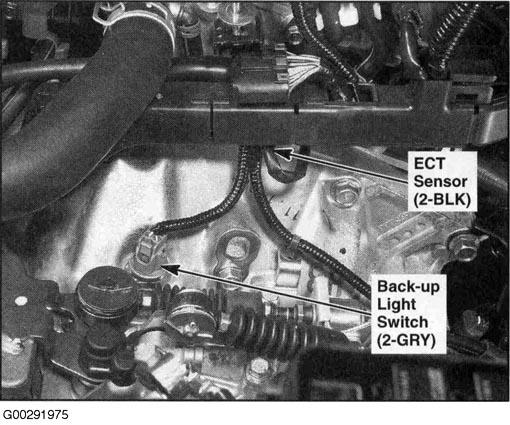

Fig 10: Transmission Housing

G00291975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

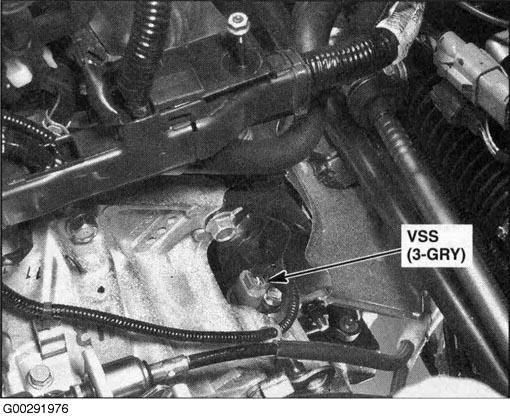

Fig 11: Transmission Housing

G00291976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

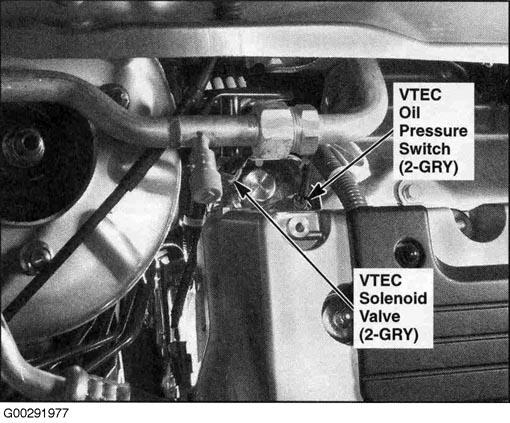

Fig 12: Right Side Of Engine Compartment

G00291977

Courtesy of AMERICAN HONDA MOTOR CO., INC.

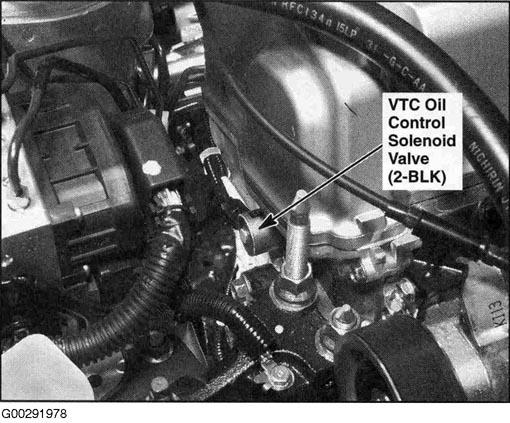

Fig 13: Front Of Engine

G00291978

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Lower Front Of Engine

G00291979

Courtesy of AMERICAN HONDA MOTOR CO., INC.

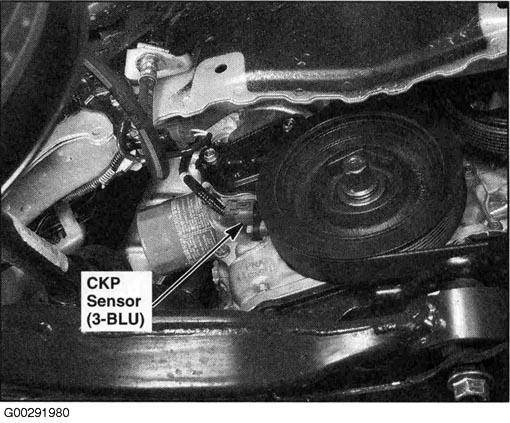

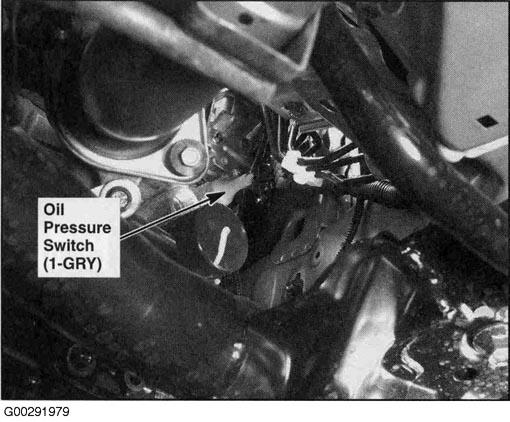

Fig 15: Lower Front Of Engine

G00291980

Courtesy of AMERICAN HONDA MOTOR CO., INC.

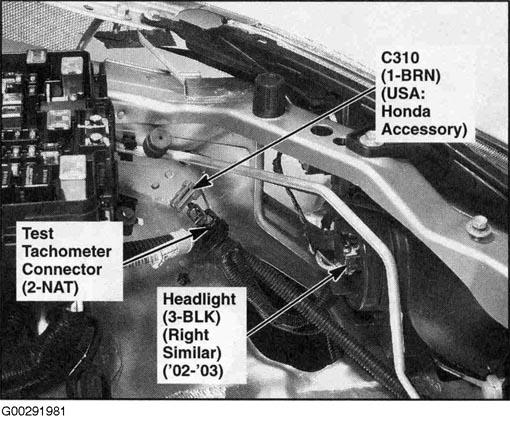

Fig 16: Left Side Of Engine Compartment

G00291981

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Left Side Of Engine Compartment

G00291982

Courtesy of AMERICAN HONDA MOTOR CO., INC.

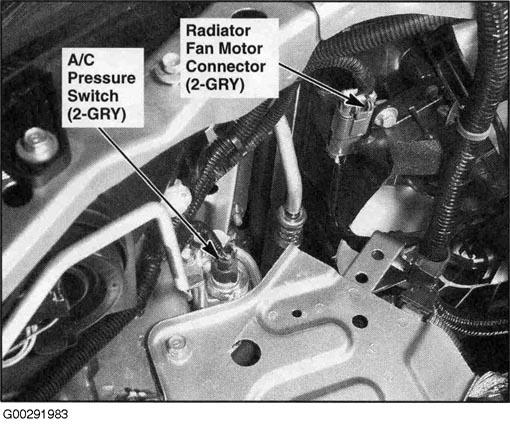

Fig 18: Left Front Of Engine Compartment

G00291983

Courtesy of AMERICAN HONDA MOTOR CO., INC.

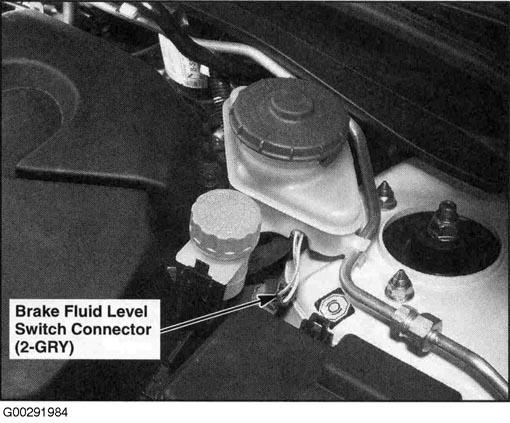

Fig 19: Left Rear Of Engine Compartment

G00291984

Courtesy of AMERICAN HONDA MOTOR CO., INC.

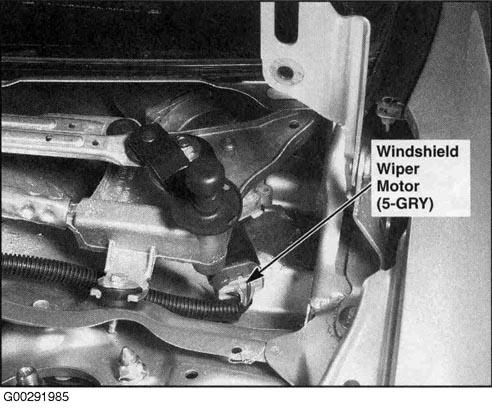

Fig 20: Under Left Side Of Cowl

G00291985

Courtesy of AMERICAN HONDA MOTOR CO., INC.

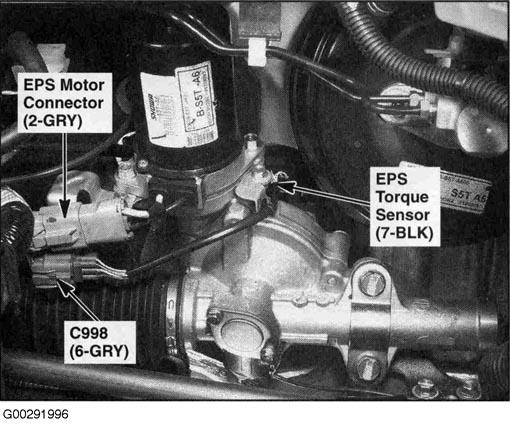

Fig 21: Rear Of Engine Compartment

G00291996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

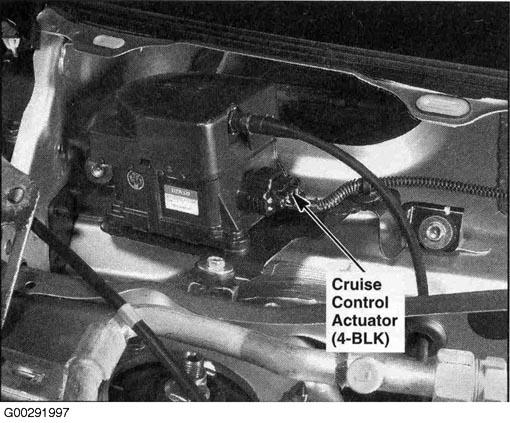

Fig 22: Under Right Side Of Cowl

G00291997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

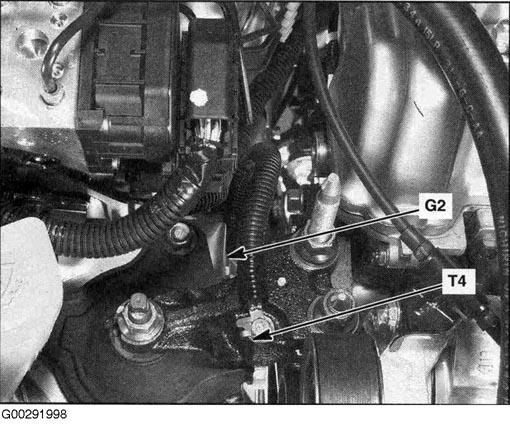

Fig 23: Right Side Of Engine Compartment

G00291998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Right Side Of Engine Compartment

G00291999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

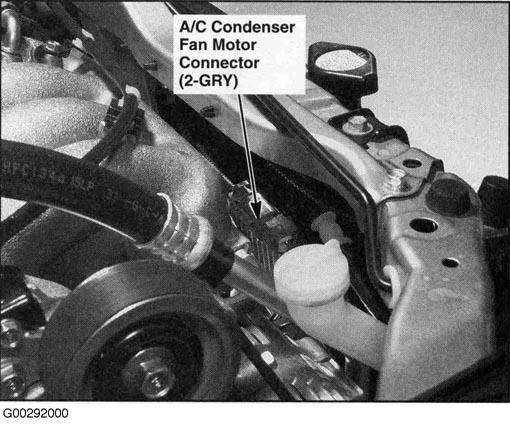

Fig 25: Front Of Engine Compartment

G00292000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

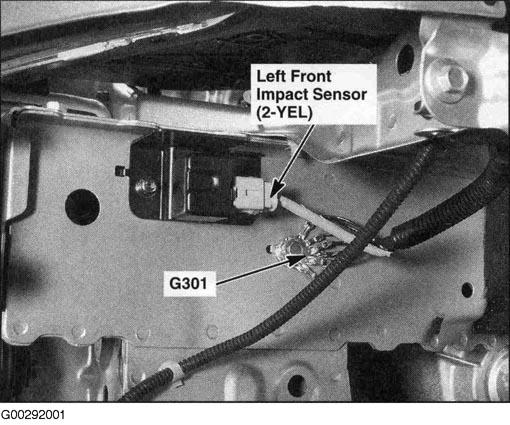

Fig 26: Left Front Of Vehicle (Bumper Removed)

G00292001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

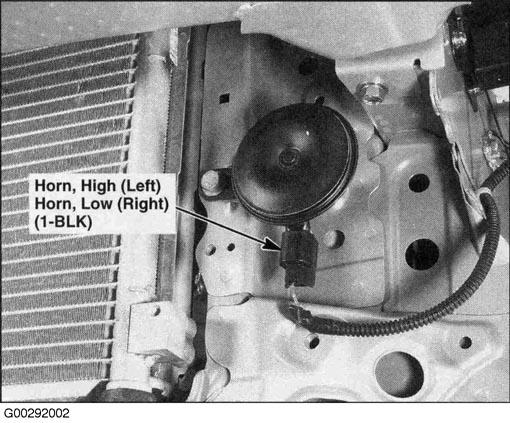

Fig 27: Left Front Of Vehicle (Bumper Removed) (Right Similar)

G00292002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

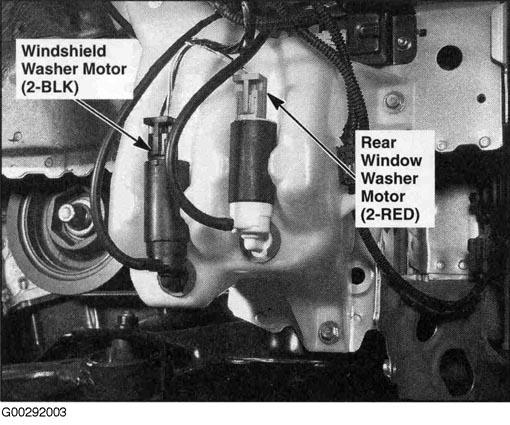

Fig 28: Right Front Of Vehicle (Bumper Removed)

G00292003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

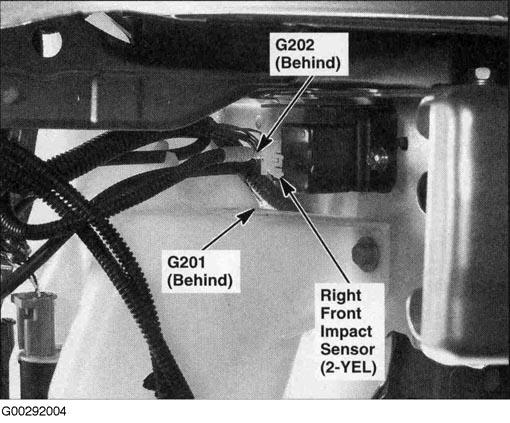

Fig 29: Right Front Of Vehicle (Bumper Removed)

G00292004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

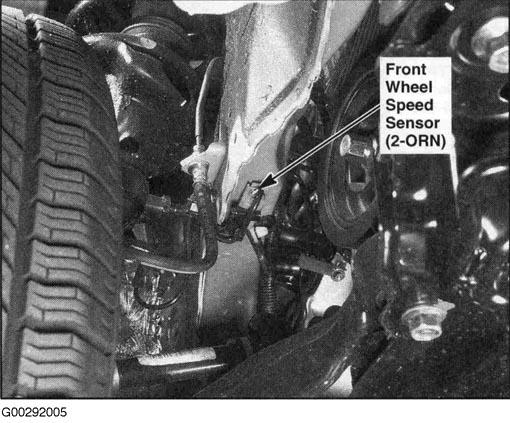

Fig 30: Lower Left Side Of Engine Compartment

G00292005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

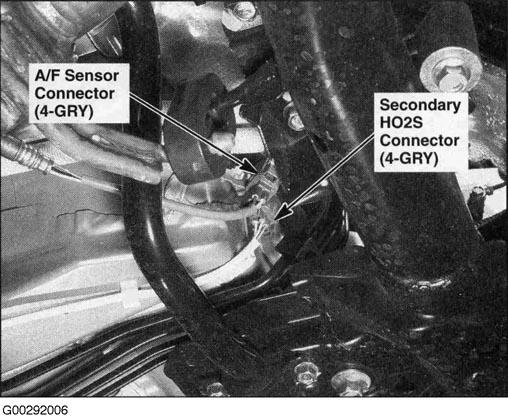

Fig 31: Rear Underside Of Engine Compartment

G00292006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

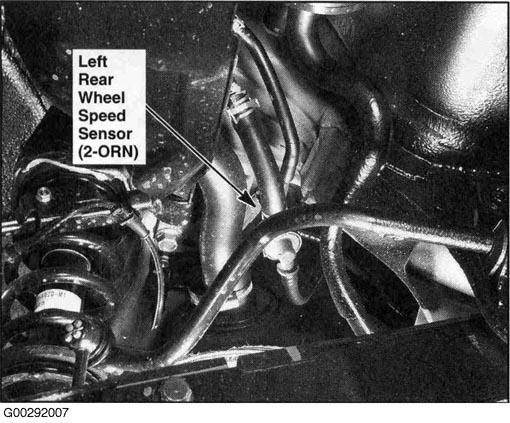

Fig 32: Under Left Rear Of Vehicle

G00292007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

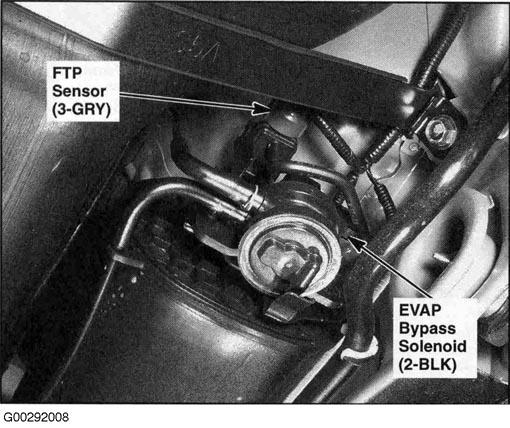

Fig 33: Under Left Rear Of Vehicle

G00292008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

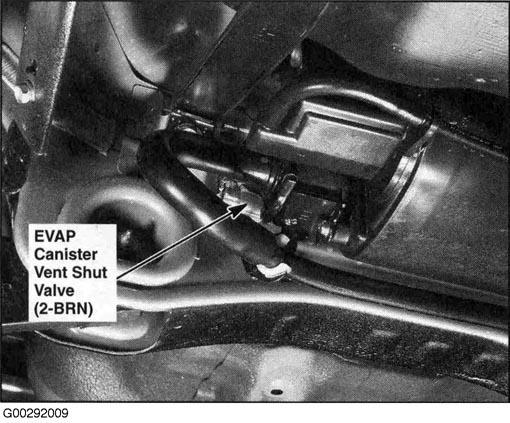

Fig 34: Under Right Rear Of Vehicle

G00292009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

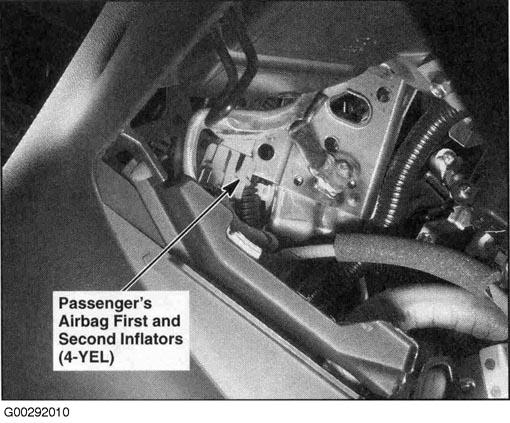

Fig 35: Under Right Side Of Dash

G00292010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Under Right Side Of Dash

G00292011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Under Right Side Of Dash

G00292412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

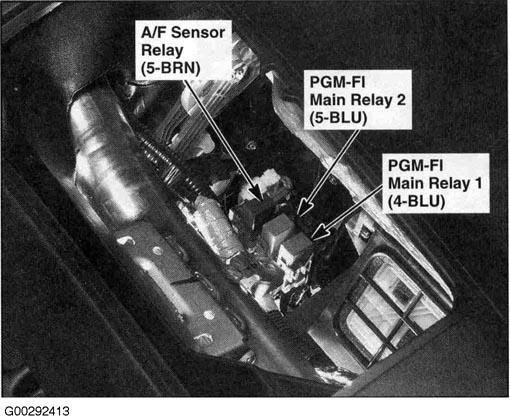

Fig 38: Under Right Side Of Dash

G00292413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

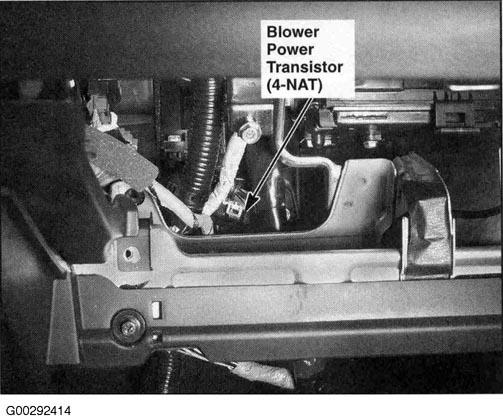

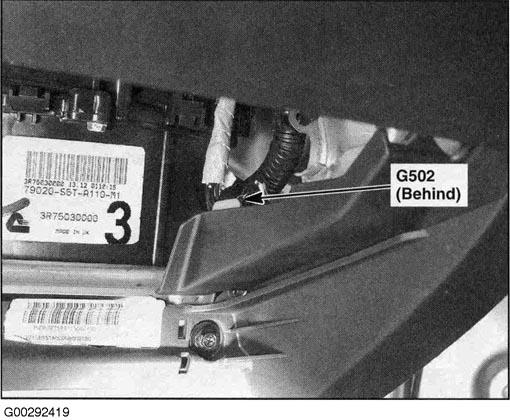

Fig 39: Under Right Side Of Dash

G00292414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Under Right Side Of Dash

G00292415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

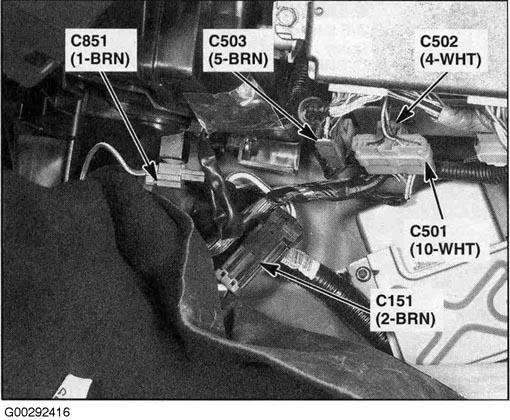

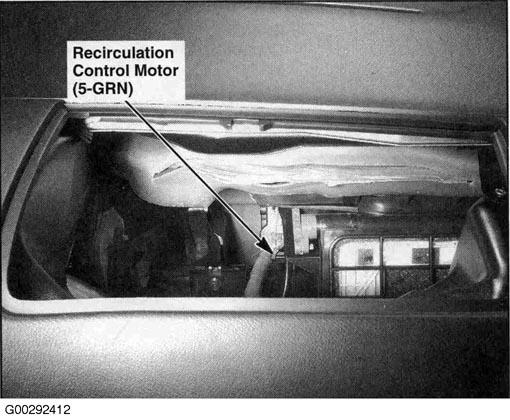

Fig 41: Under Right Side Of Dash

G00292416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

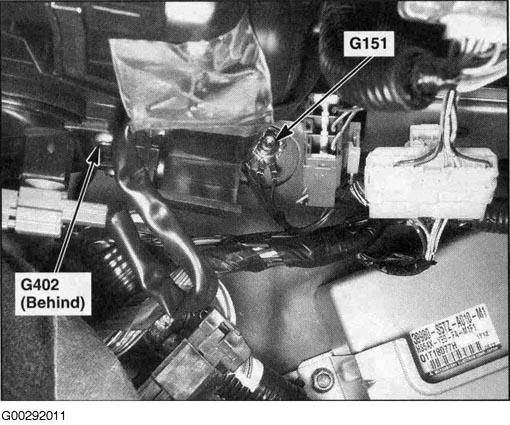

Fig 42: Under Right Side Of Dash

G00292417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

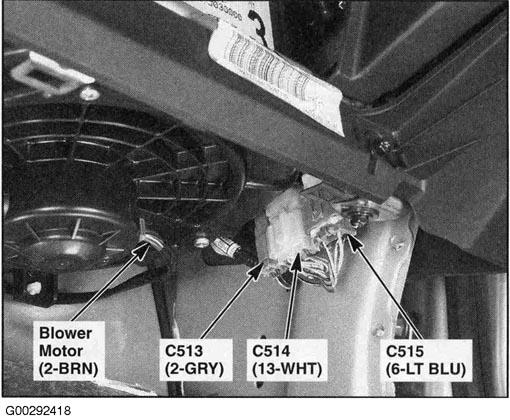

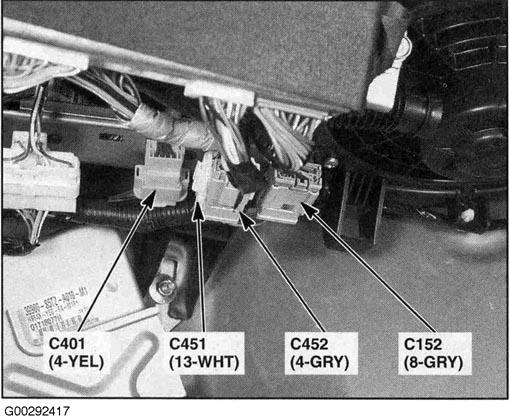

Fig 43: Under Right Side Of Dash

G00292418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Under Right Side Of Dash

G00292419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Behind Glove Box

G00292420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

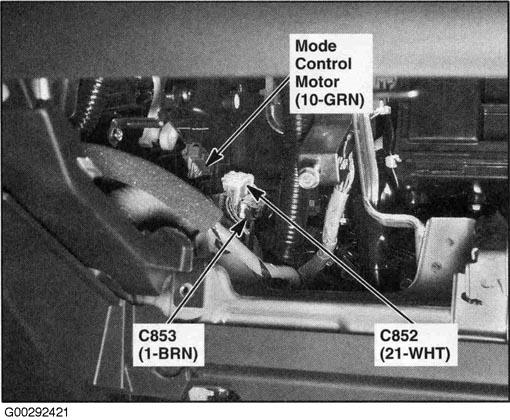

Fig 46: Behind Glove Box

G00292421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Under Center Of Dash

G00292422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

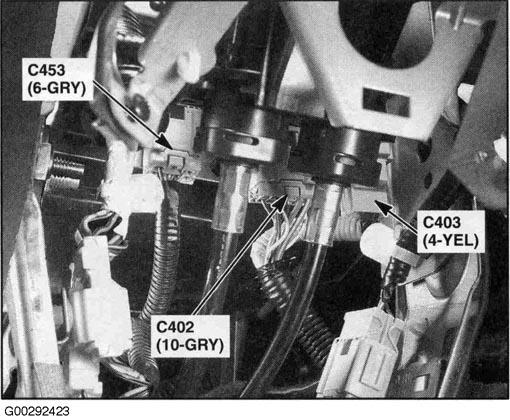

Fig 48: Under Center Of Dash

G00292423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

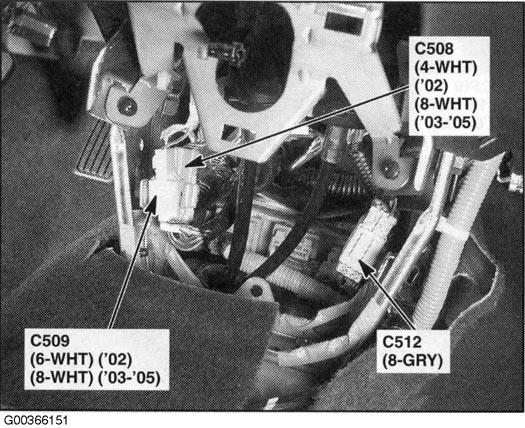

Fig 49: Under Center Of Dash

G00366151

Courtesy of AMERICAN HONDA MOTOR CO., INC.

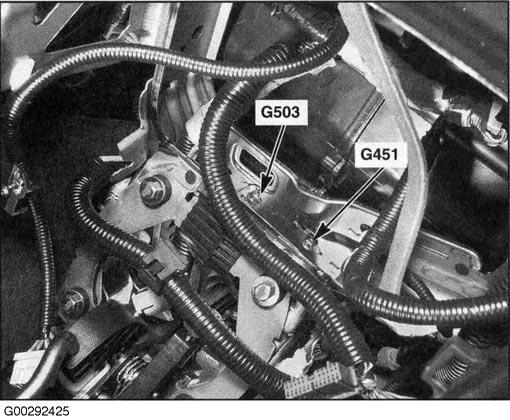

Fig 50: Under Center Of Dash

G00292425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

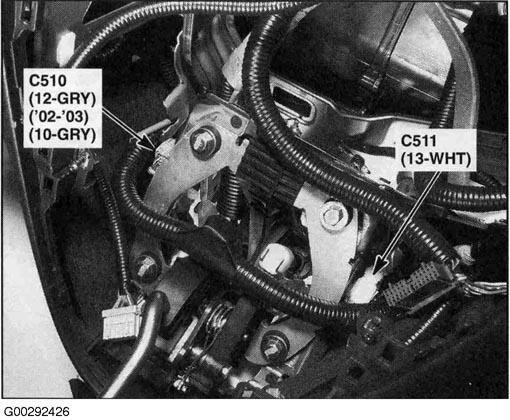

Fig 51: Under Center Of Dash

G00292426

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Under Center Of Dash (USA)

G00292427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Left Side Of Dash

G00292428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Under Left Side Of Dash

G00292429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

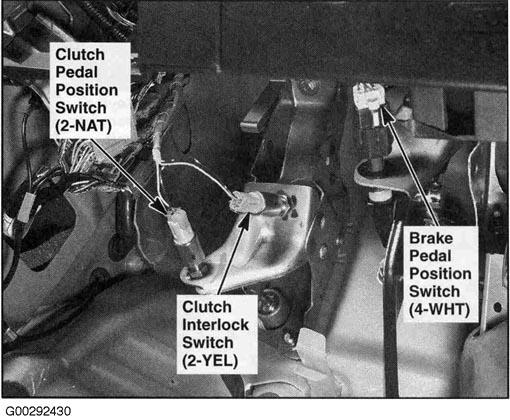

Fig 55: Under Left Side Of Dash

G00292430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

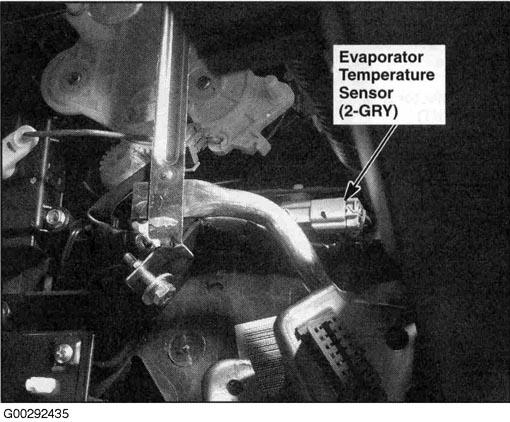

Fig 56: Under Left Side Of Dash

G00292431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

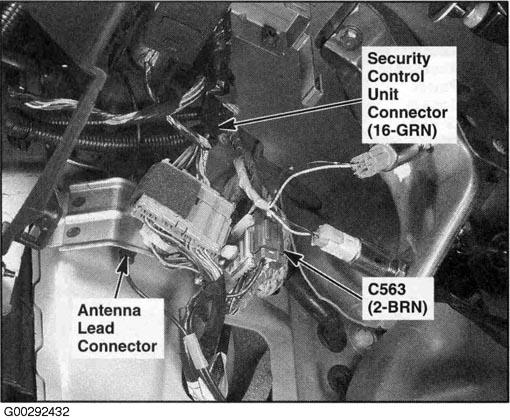

Fig 57: Under Left Side Of Dash

G00292432

Courtesy of AMERICAN HONDA MOTOR CO., INC.

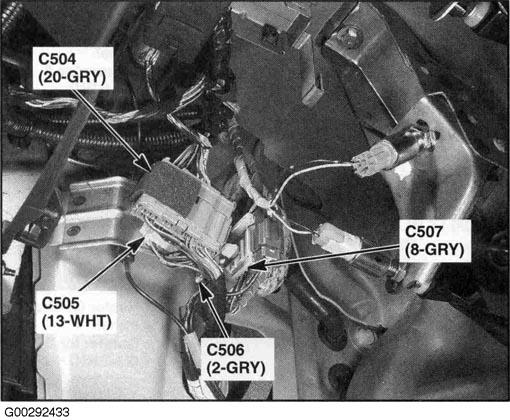

Fig 58: Under Left Side Of Dash

G00292433

Courtesy of AMERICAN HONDA MOTOR CO., INC.

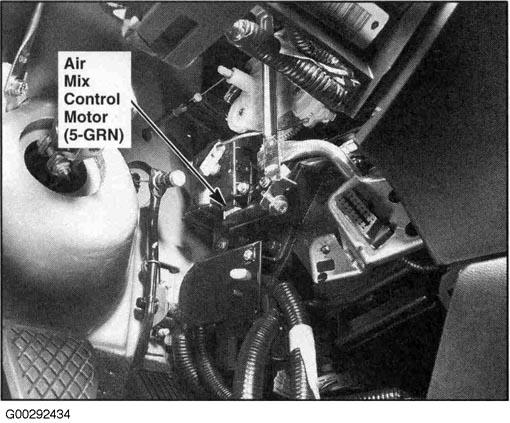

Fig 59: Under Left Side Of Dash

G00292434

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Under Left Side Of Dash

G00292435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

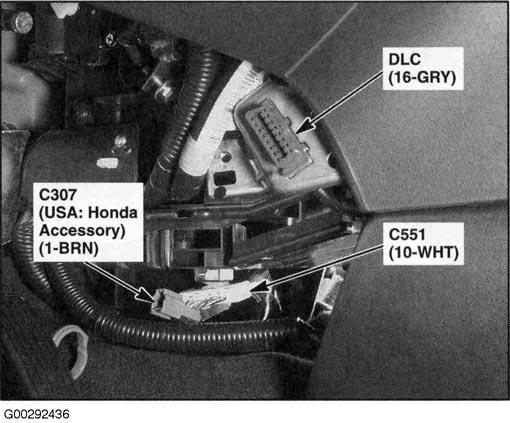

Fig 61: Under Left Side Of Dash

G00292436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Steering Column

G00292437

Courtesy of AMERICAN HONDA MOTOR CO., INC.

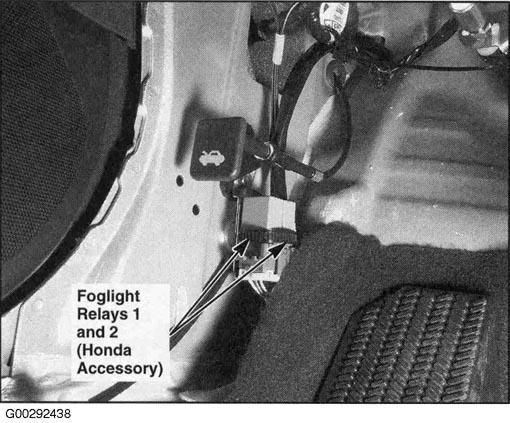

Fig 63: Left Kick Panel (USA)

G00292438

Courtesy of AMERICAN HONDA MOTOR CO., INC.

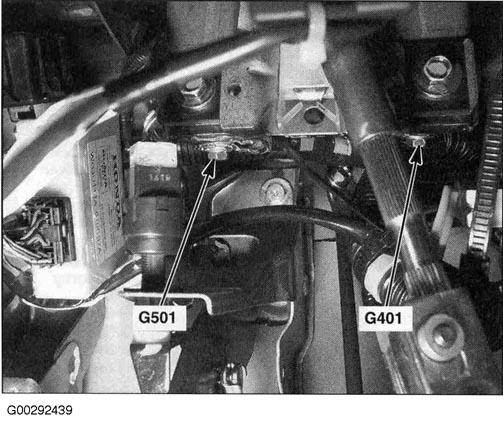

Fig 64: Under Gauge Assembly

G00292439

Courtesy of AMERICAN HONDA MOTOR CO., INC.

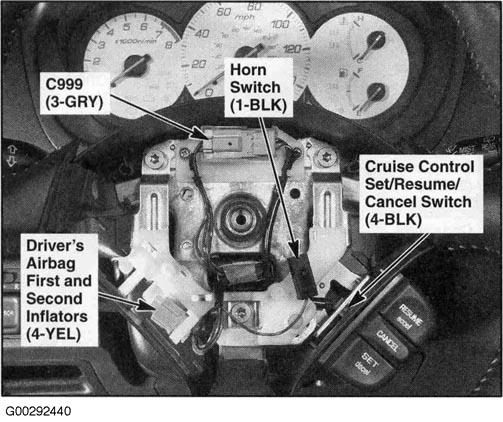

Fig 65: Inside Steering Wheel

G00292440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

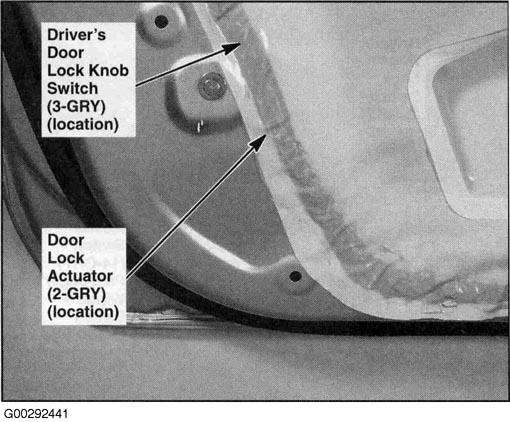

Fig 66: Driver's Door (Passenger's Similar)

G00292441

Courtesy of AMERICAN HONDA MOTOR CO., INC.

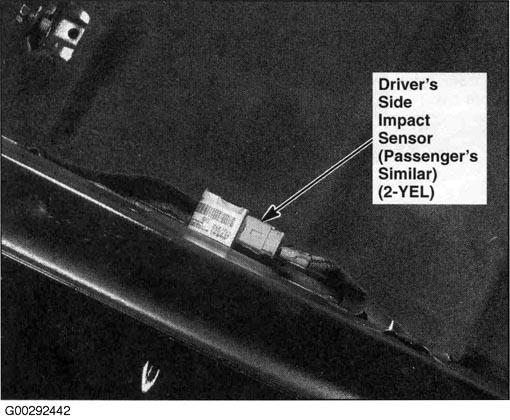

Fig 67: Left Side Of Floor (Right Similar)

G00292442

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: In Passenger's Seat

G00292443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

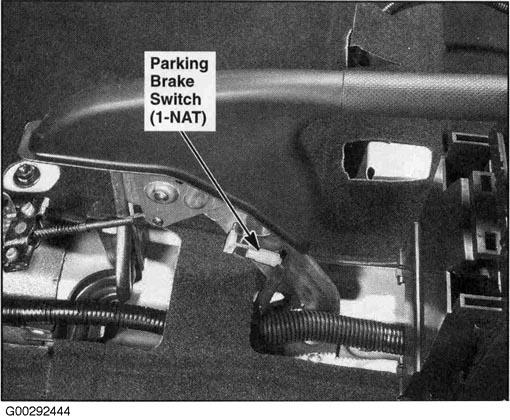

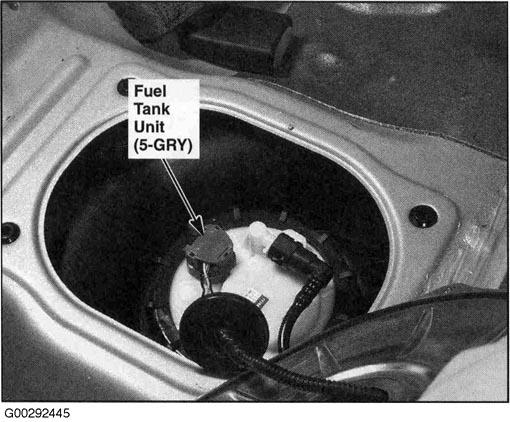

Fig 69: Center Of Floor

G00292444

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Center Of Floor

G00292445

Courtesy of AMERICAN HONDA MOTOR CO., INC.

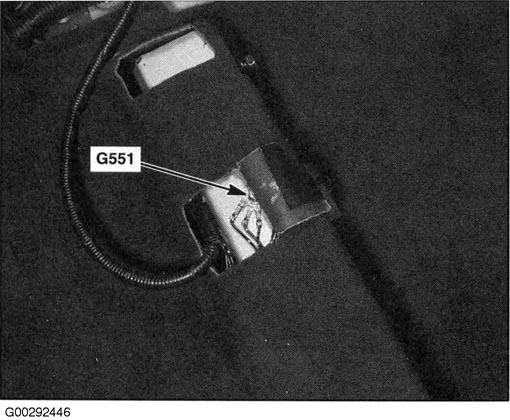

Fig 71: Under Passenger's Seat

G00292446

Courtesy of AMERICAN HONDA MOTOR CO., INC.

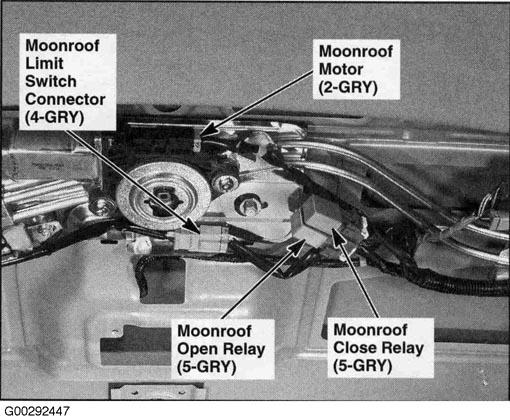

Fig 72: Center Of Roof

G00292447

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Center Of Roof

G00292448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

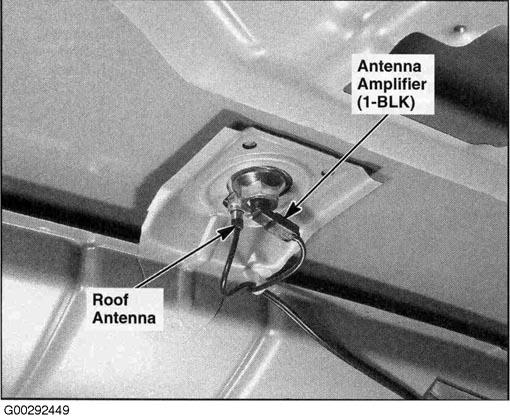

Fig 74: Rear Of Roof

G00292449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

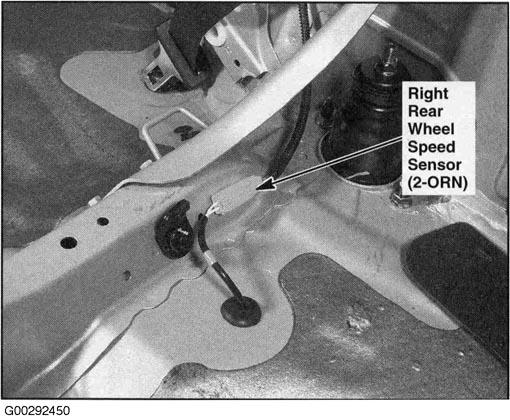

Fig 75: Right Side Of Cargo Area

G00292450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

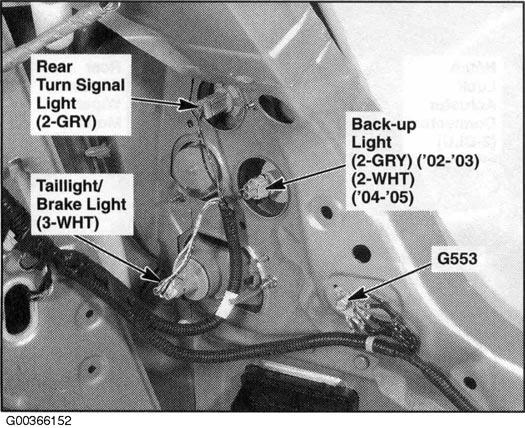

Fig 76: Right Side Of Cargo Area

G00366152

Courtesy of AMERICAN HONDA MOTOR CO., INC.

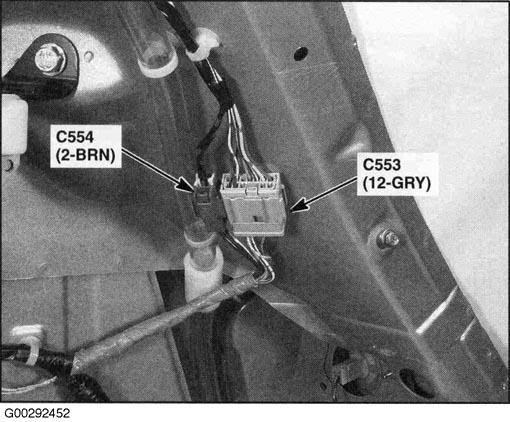

Fig 77: Right Quarter Panel

G00292452

Courtesy of AMERICAN HONDA MOTOR CO., INC.

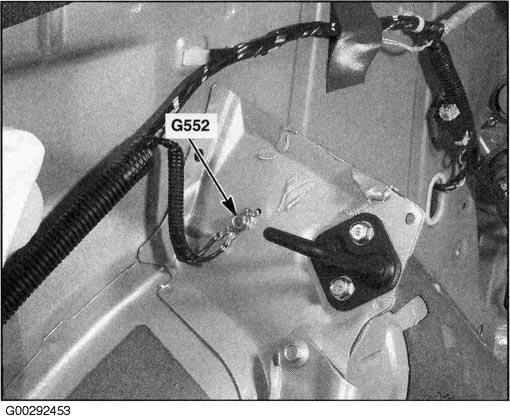

Fig 78: Behind Right Rear Seat Back

G00292453

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Rear Of Cargo Area

G00292454

Courtesy of AMERICAN HONDA MOTOR CO., INC.

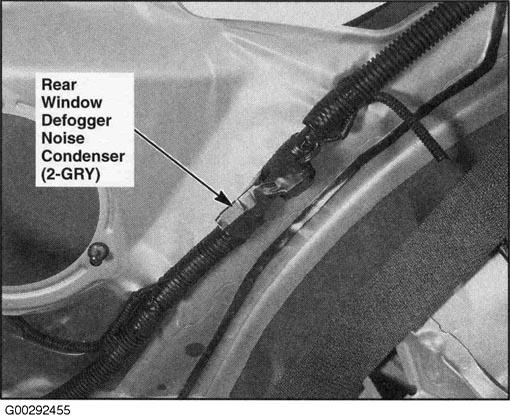

Fig 80: Left Side Of Cargo Area

G00292455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

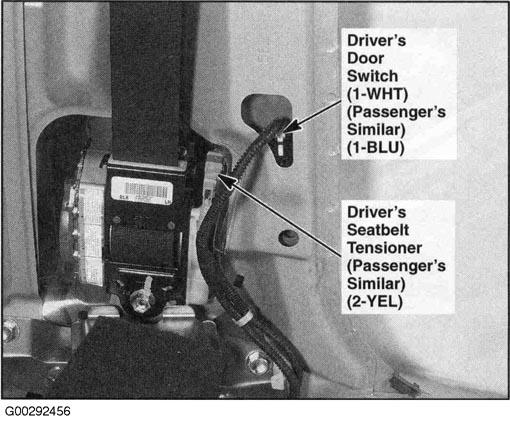

Fig 81: Left "B" Pillar (Right Similar)

G00292456

Courtesy of AMERICAN HONDA MOTOR CO., INC.

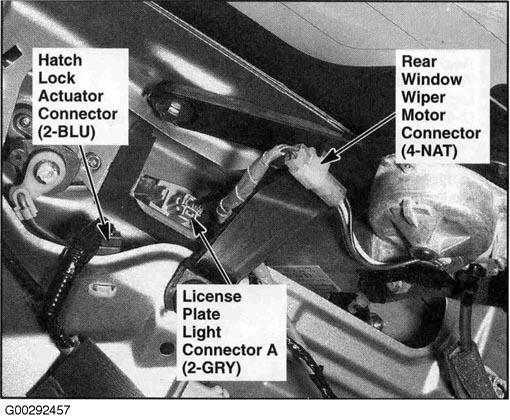

Fig 82: Center Of Hatch

G00292457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

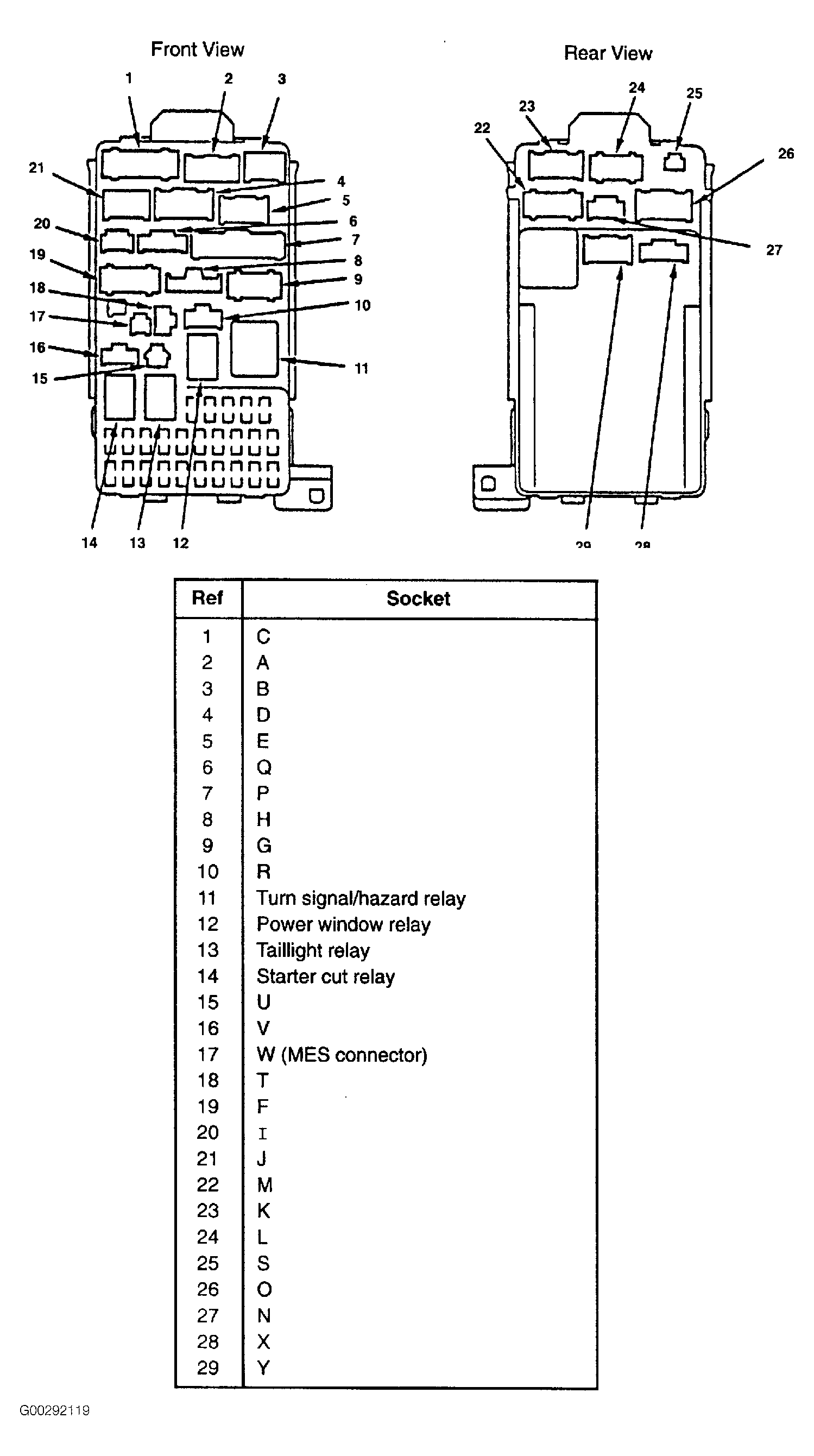

Fig 83: Under-Dash Fuse/Relay Box

G00292119

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Under-Hood Fuse/Relay Box

G00292120

Courtesy of AMERICAN HONDA MOTOR CO., INC.

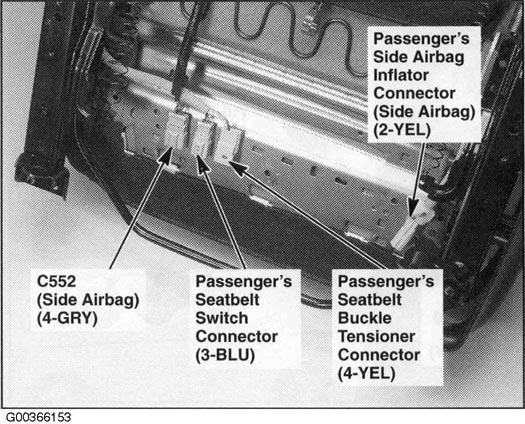

Fig 85: Under Passenger's Seat

G00366153

Courtesy of AMERICAN HONDA MOTOR CO., INC.

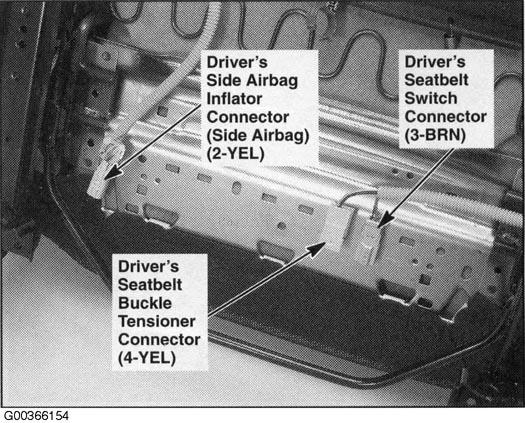

Fig 86: Under Driver's Seat

G00366154

Courtesy of AMERICAN HONDA MOTOR CO., INC.
