Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

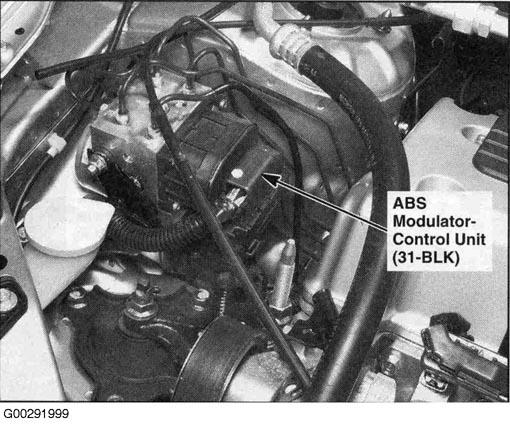

| ABS Modulator Control Unit | Right side of engine compartment. See Figure . |

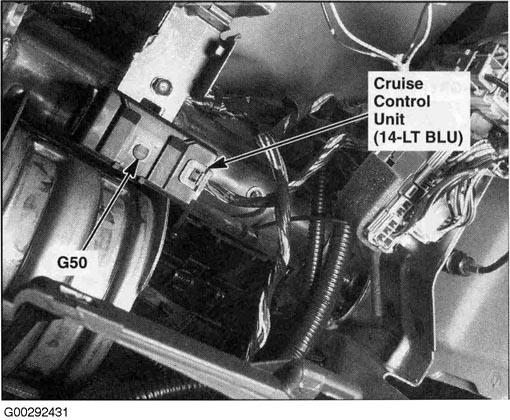

| Cruise Control Unit | Under left side of dash. See Figure . |

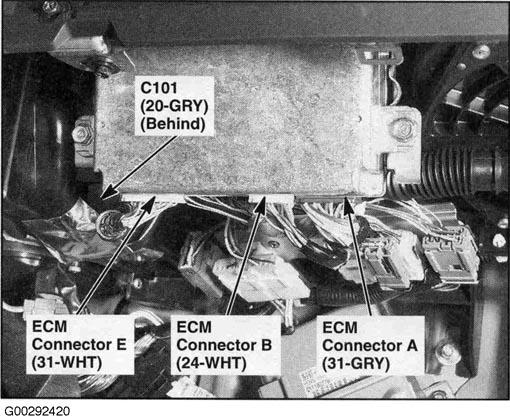

| ECM/PCM | Behind glove box. See Figure . |

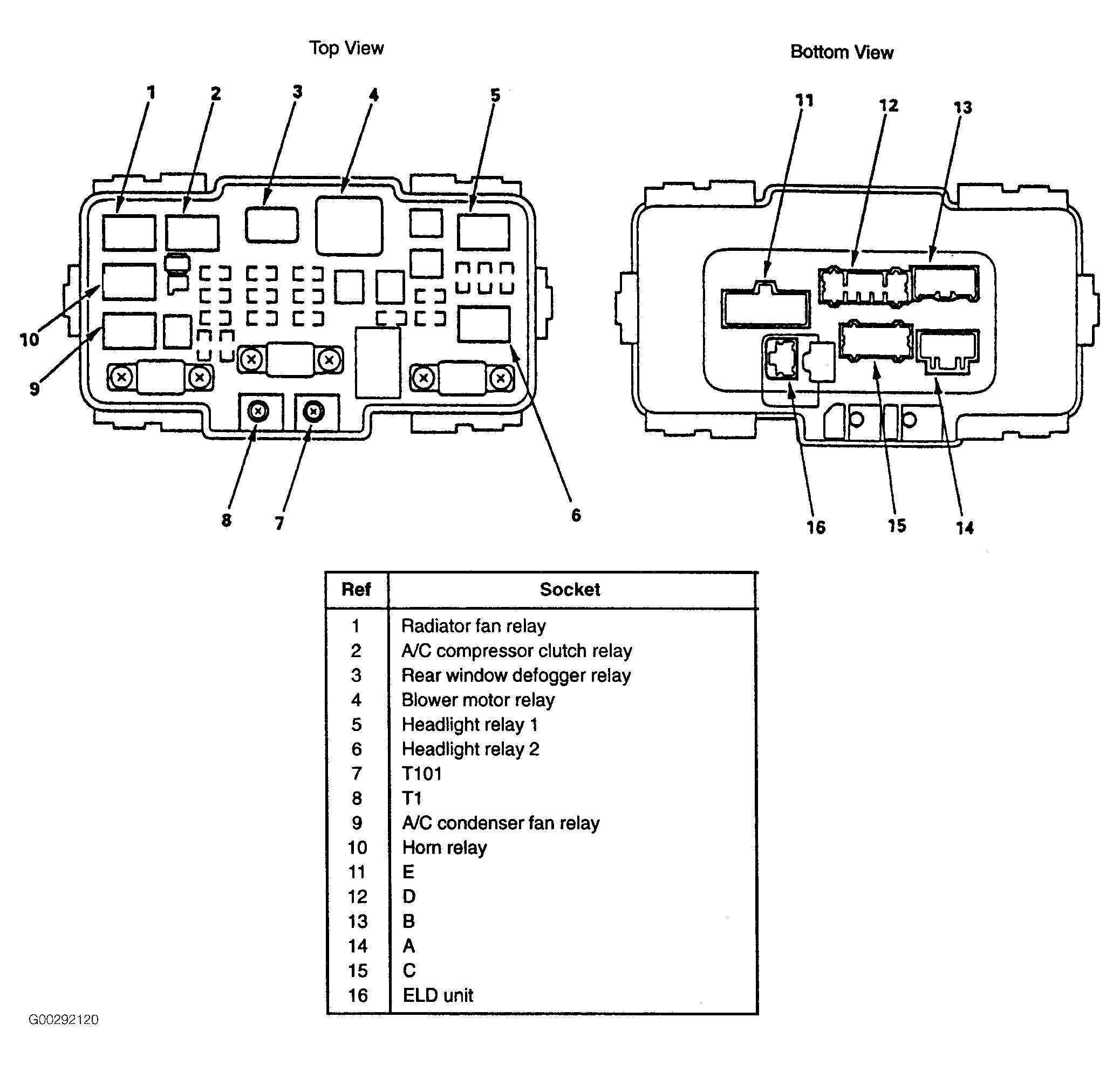

| ELD Unit | In under-hood fuse/relay box. See Figure . |

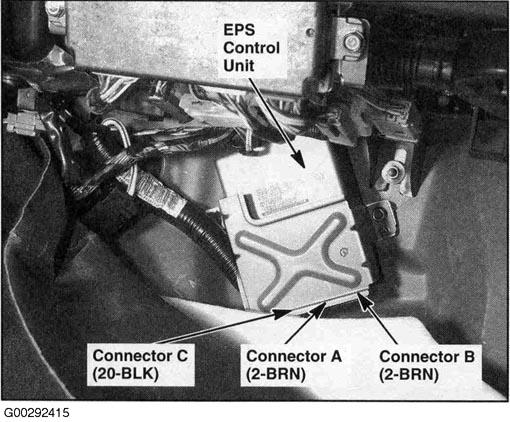

| EPS Control Unit | Under right side of dash. See Figure . |

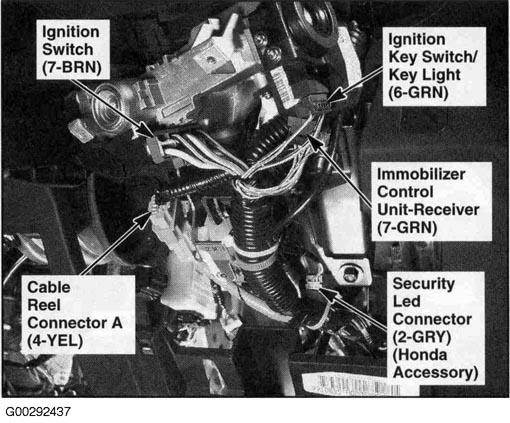

| Immobilizer Control Unit Receiver | In steering column cover. See Figure . |

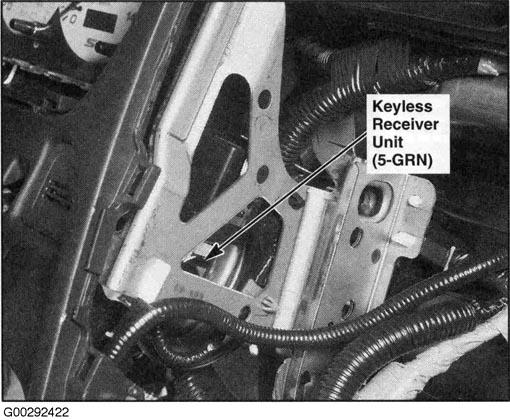

| Keyless Receiver Unit | Under center of dash. See Figure . |

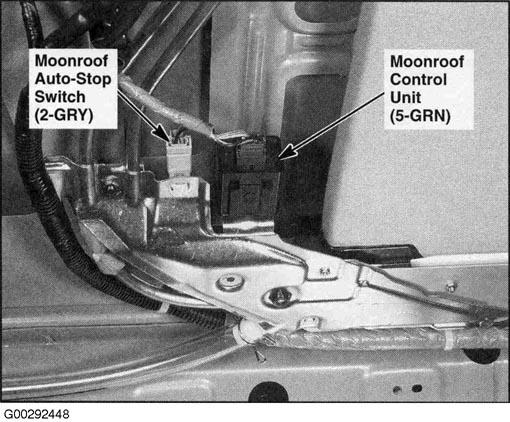

| Moonroof Control Unit | Center of roof. See Figure . |

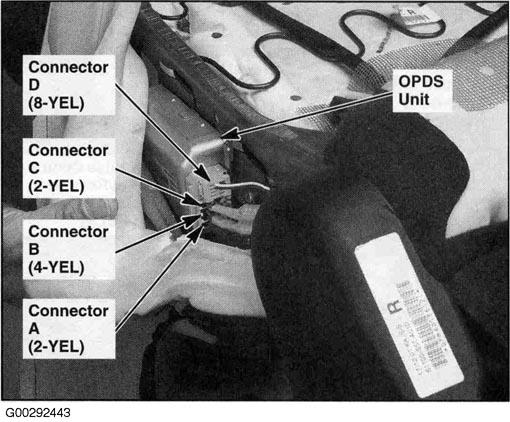

| OPDS Unit | Under passenger's seat. See Figure . |

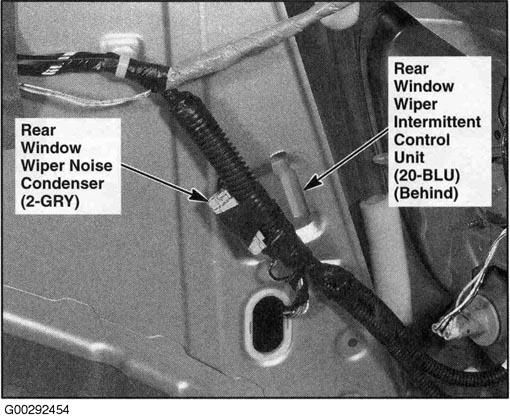

| Rear Window Wiper Intermittent Control Unit | At rear of cargo area. See Figure . |

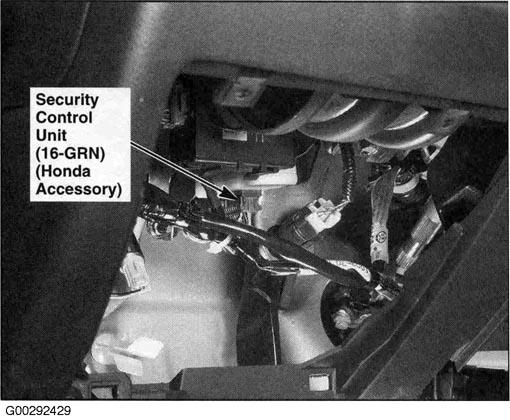

| Security Control Unit | Under left side of dash. See Figure . |
