Home › Honda › 2005 › Civic Si › Repair and Diagnosis › Engine Performance › Ignition System (Hatchback) › Circuit Diagram

Circuit Diagram

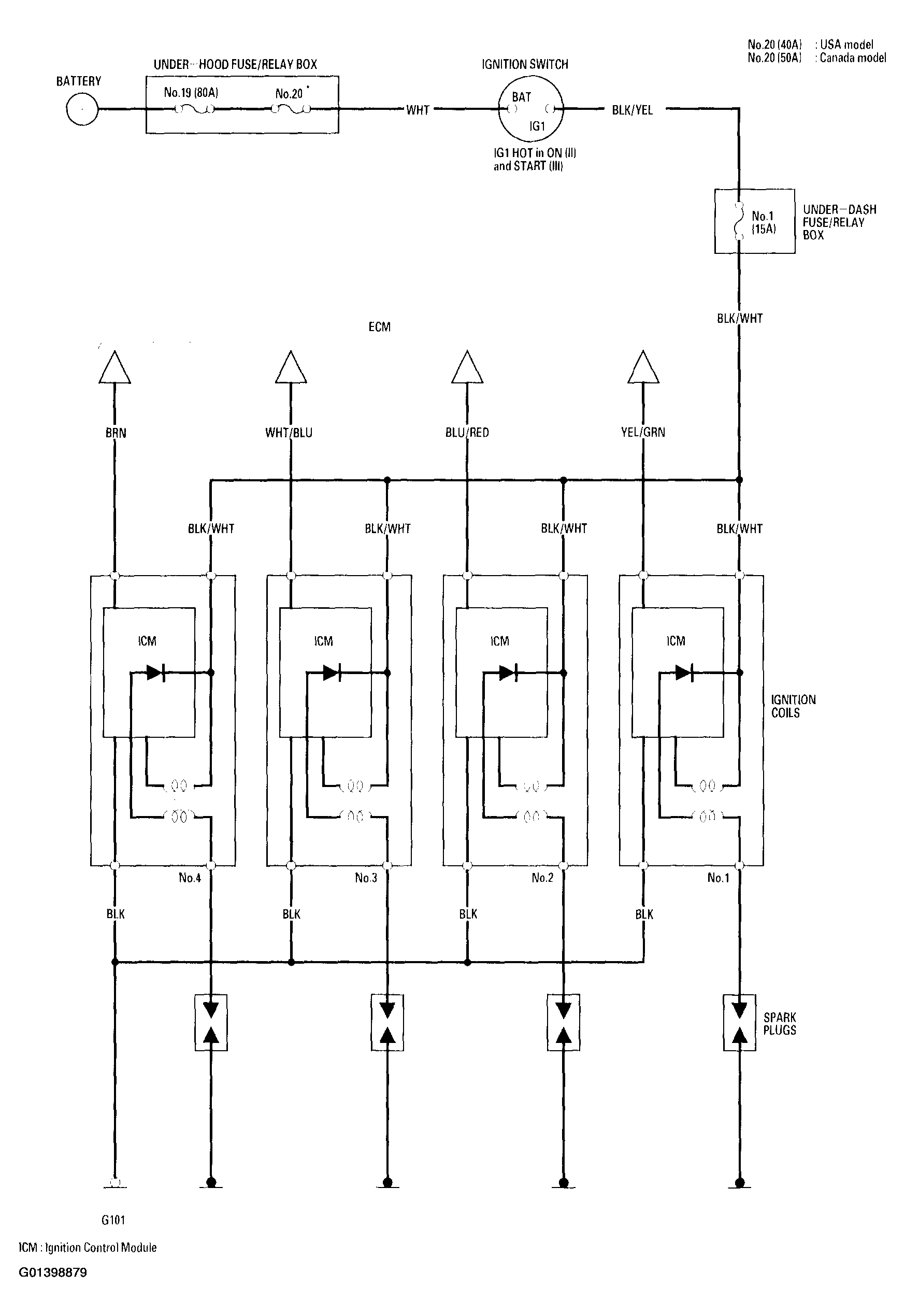

Fig 1: Ignition System Wiring Diagram
G01398879Courtesy of AMERICAN HONDA MOTOR CO., INC.
