PCM Inputs and Outputs

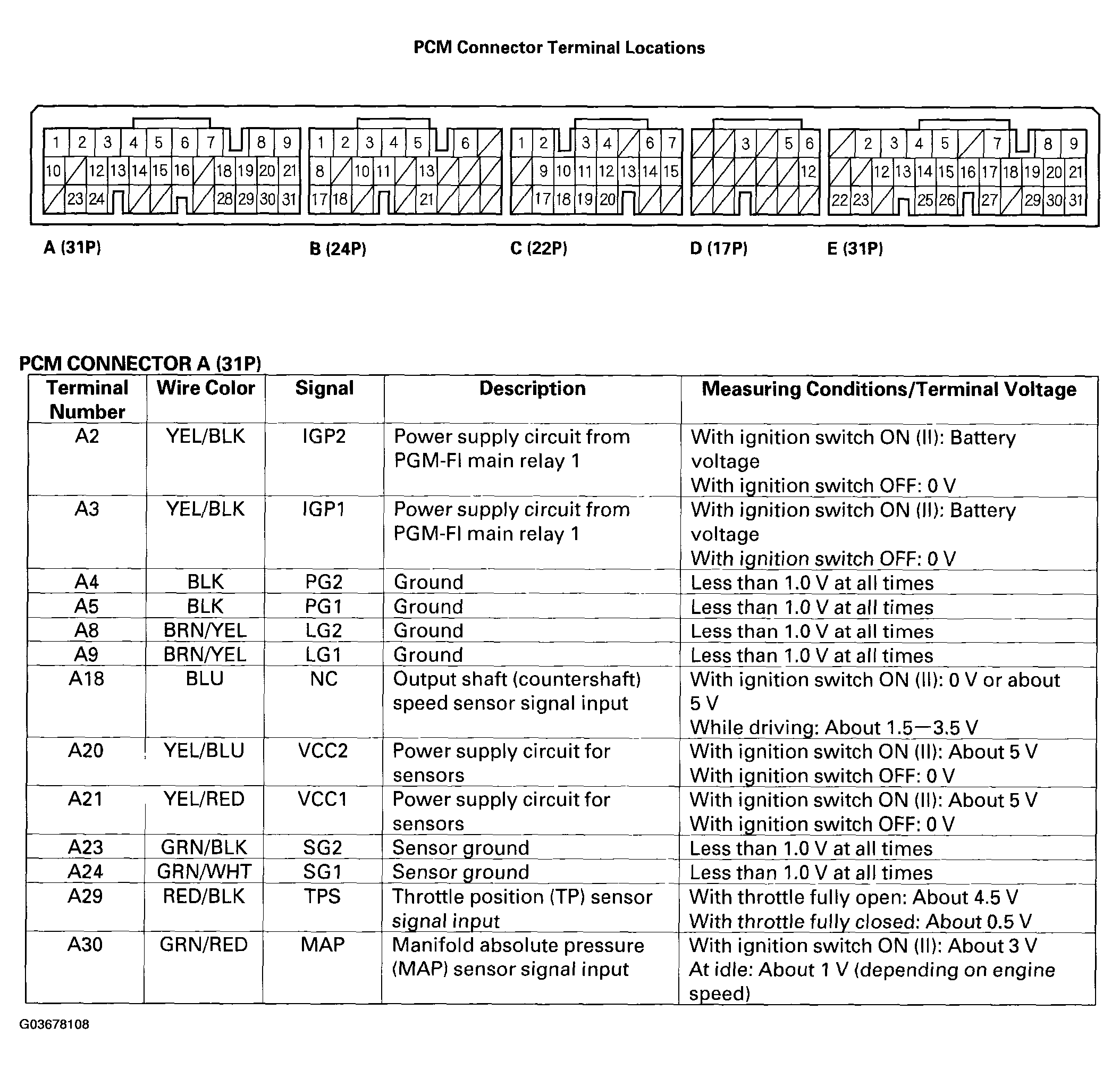

Fig 1: Identifying PCM Connector Terminal Locations (PCM Connector A 31P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

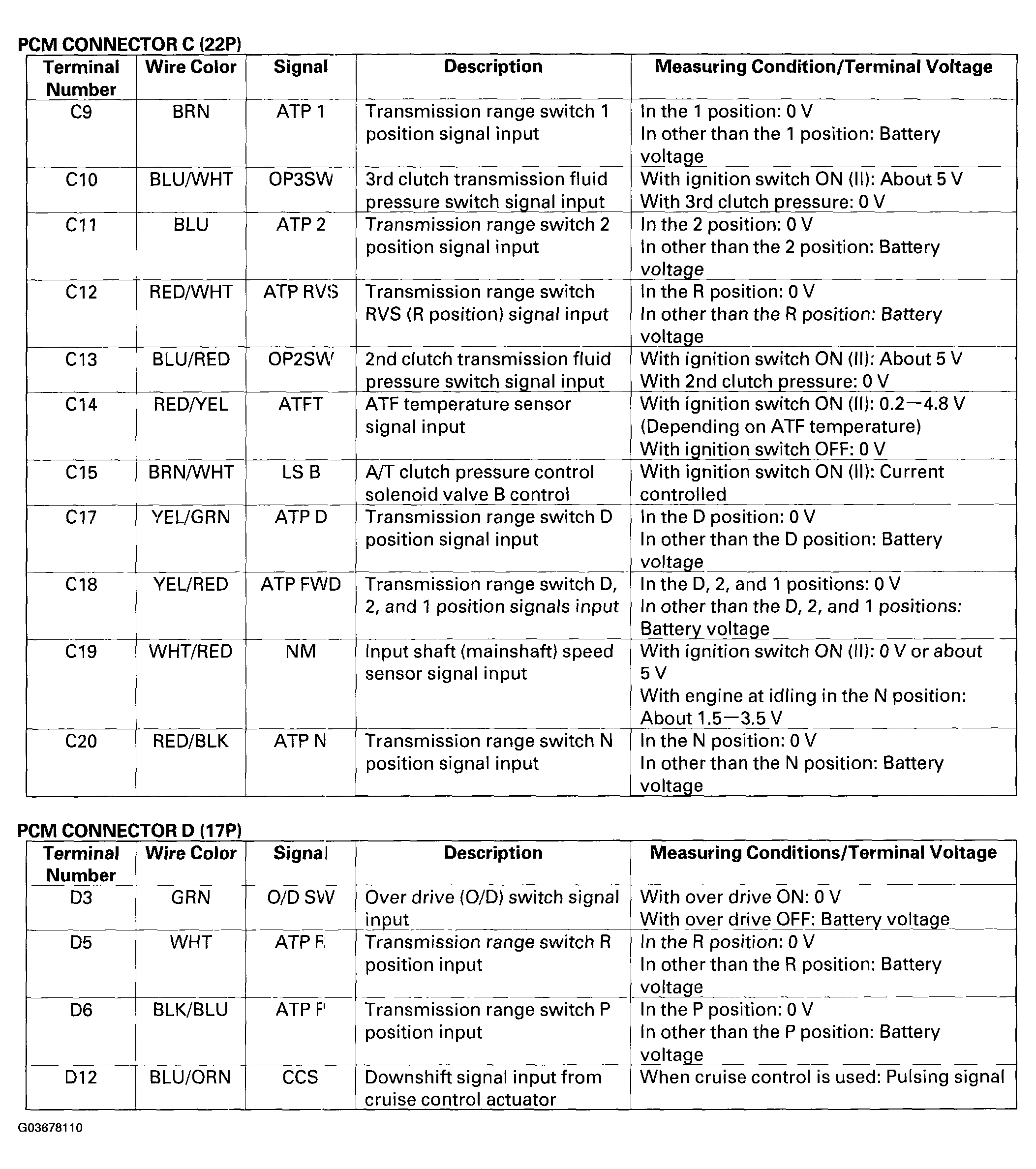

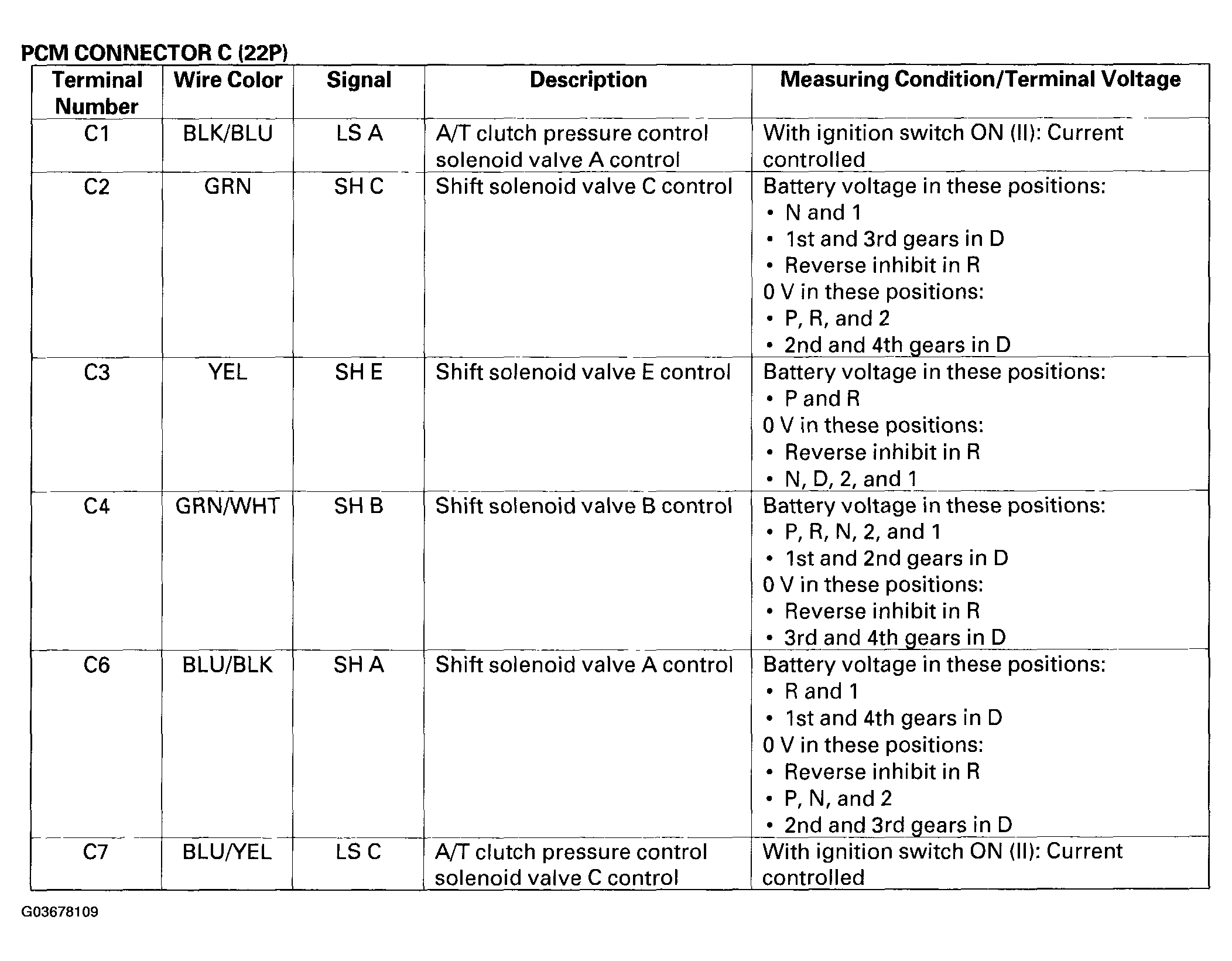

Fig 2: Identifying PCM Connector Terminal Locations And Description (C 22P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: PCM Connector D (17P) Terminal Description
Courtesy of AMERICAN HONDA MOTOR CO., INC.

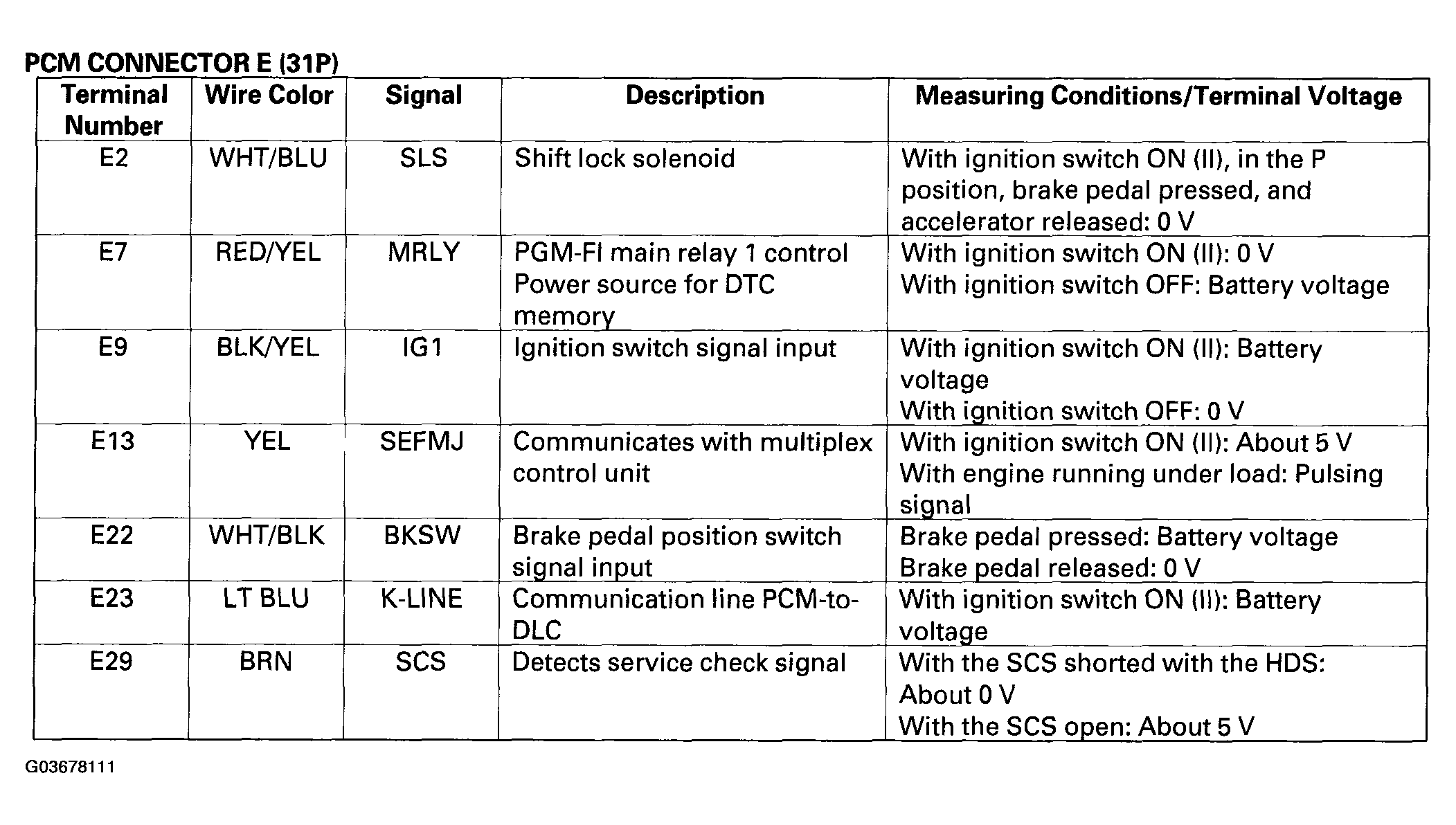

Fig 4: Identifying PCM Connector Terminal Location And Description (E 31P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
