Park Pin Switch Replacement
- Remove the front console (see FRONT CONSOLE REMOVAL/INSTALLATION
).

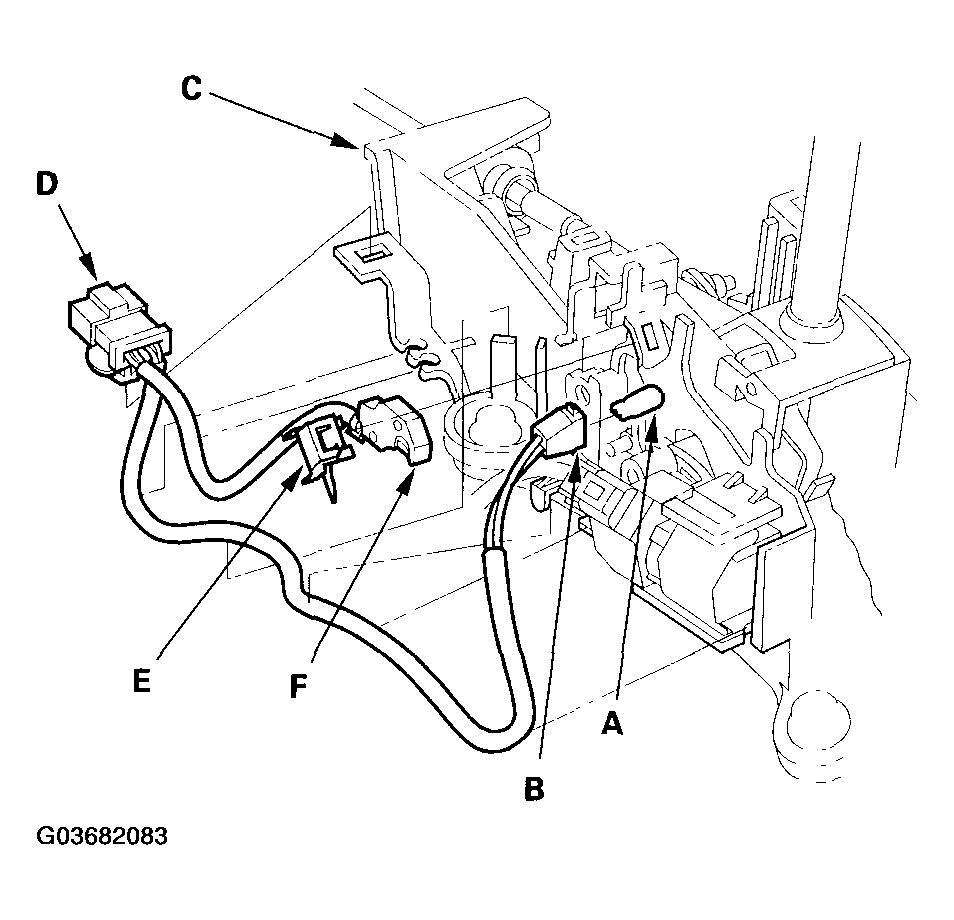

- Remove the A/T gear position indicator panel light, and remove the bulb (A) from the socket (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Separate the A/T gear position indicator panel from the shift lever bracket base (C).
- Disconnect the park pin switch connector (D), and remove it from the bracket base.
- Remove the park pin switch clamp (E) and the park pin switch (F).
- Install the new park pin switch in the shift lever bracket base, and install the park pin switch clamp to secure it.
- Install the removed parts in the reverse order of removal.
