Park Pin Switch Test

  1. Remove the front console (see FRONT CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the park pin switch connector.

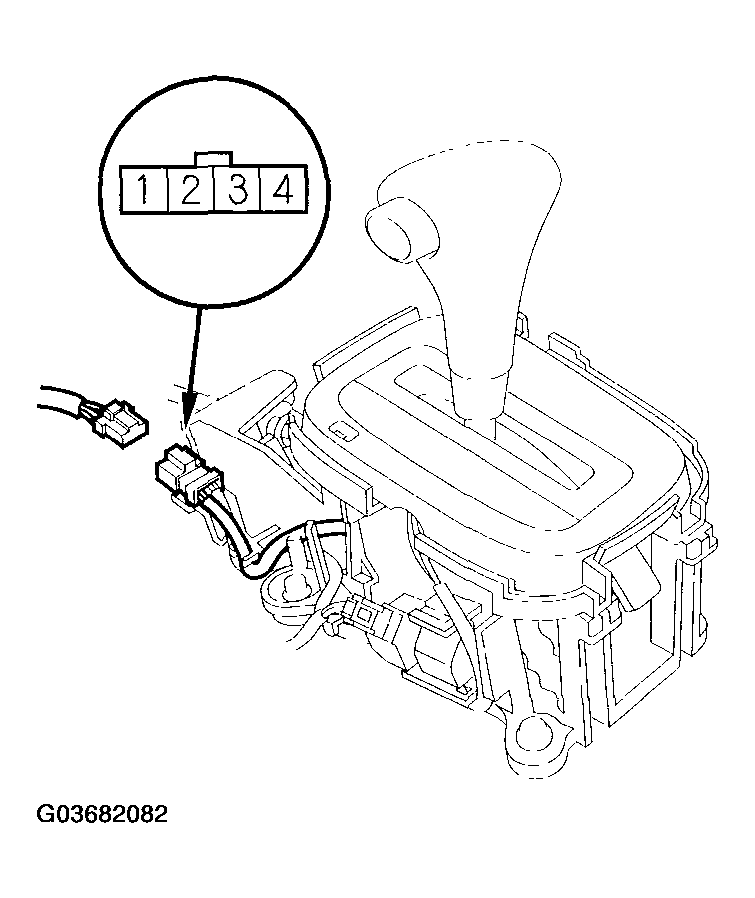

    Fig 1: Disconnecting Park Pin Switch Connector
    G03682082Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Shift to the P position, then check for continuity between connector terminals No. 3 and No. 4. There should be continuity.
  4. If there is no continuity between connector terminals No. 3 and No. 4, replace the parking pin switch.
  5. Shift out of the P position, and check for continuity between connector terminals No. 3 and No. 4. There should be no continuity.
  6. If there is continuity between connector terminals No. 3 and No. 4, replace the park pin switch.
