Continuously Variable Automatic Transmission (CVT)
›
CVT
›
System Description
›
Electronic Control System
›
Electronic Controls Location
Electronic Controls Location

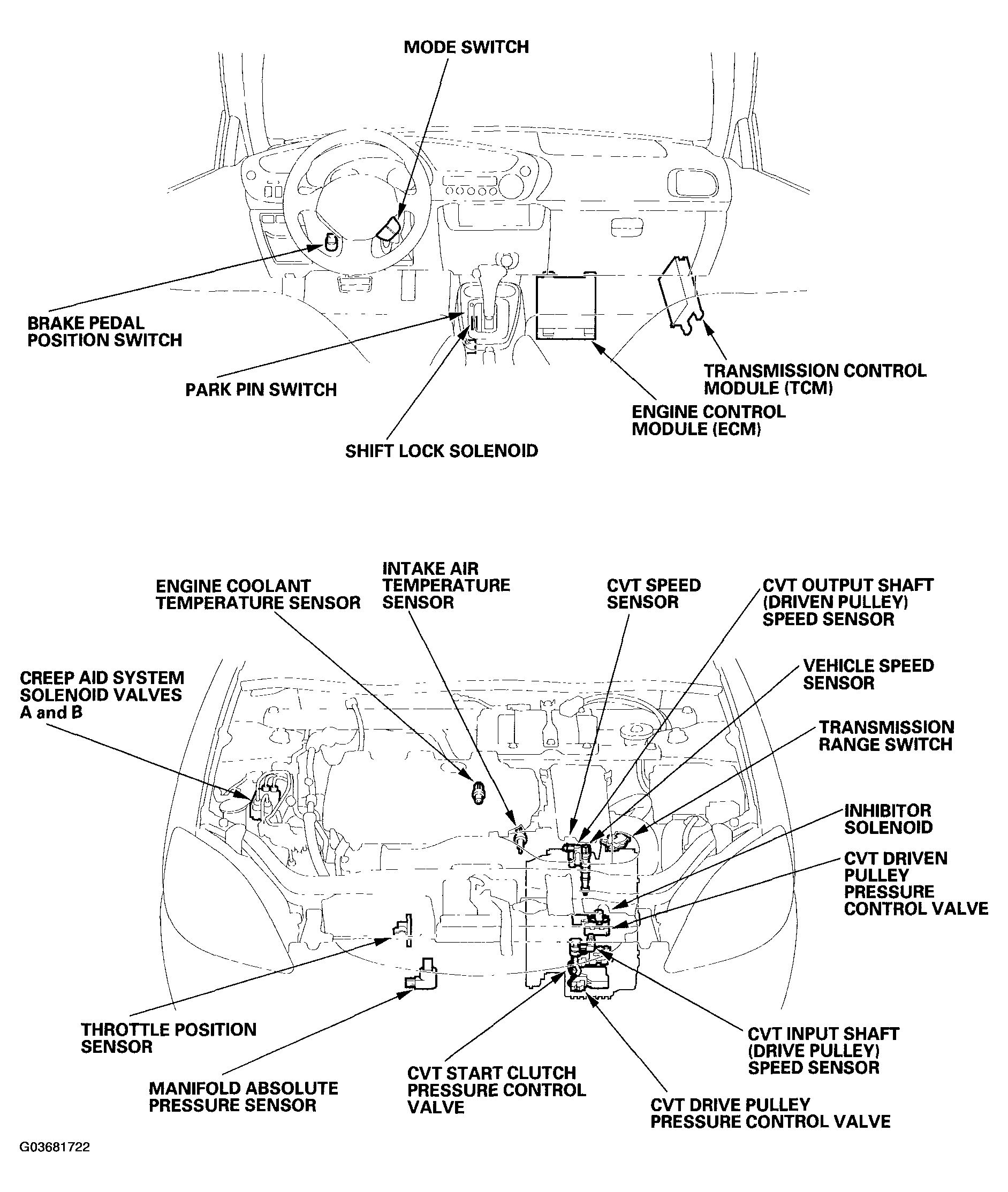

Fig 1: Identifying Electronic Controls Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
