Continuously Variable Automatic Transmission (CVT)
›
CVT
›
System Description
›
Electronic Control System
›
TCM Electrical Connection
TCM Electrical Connection

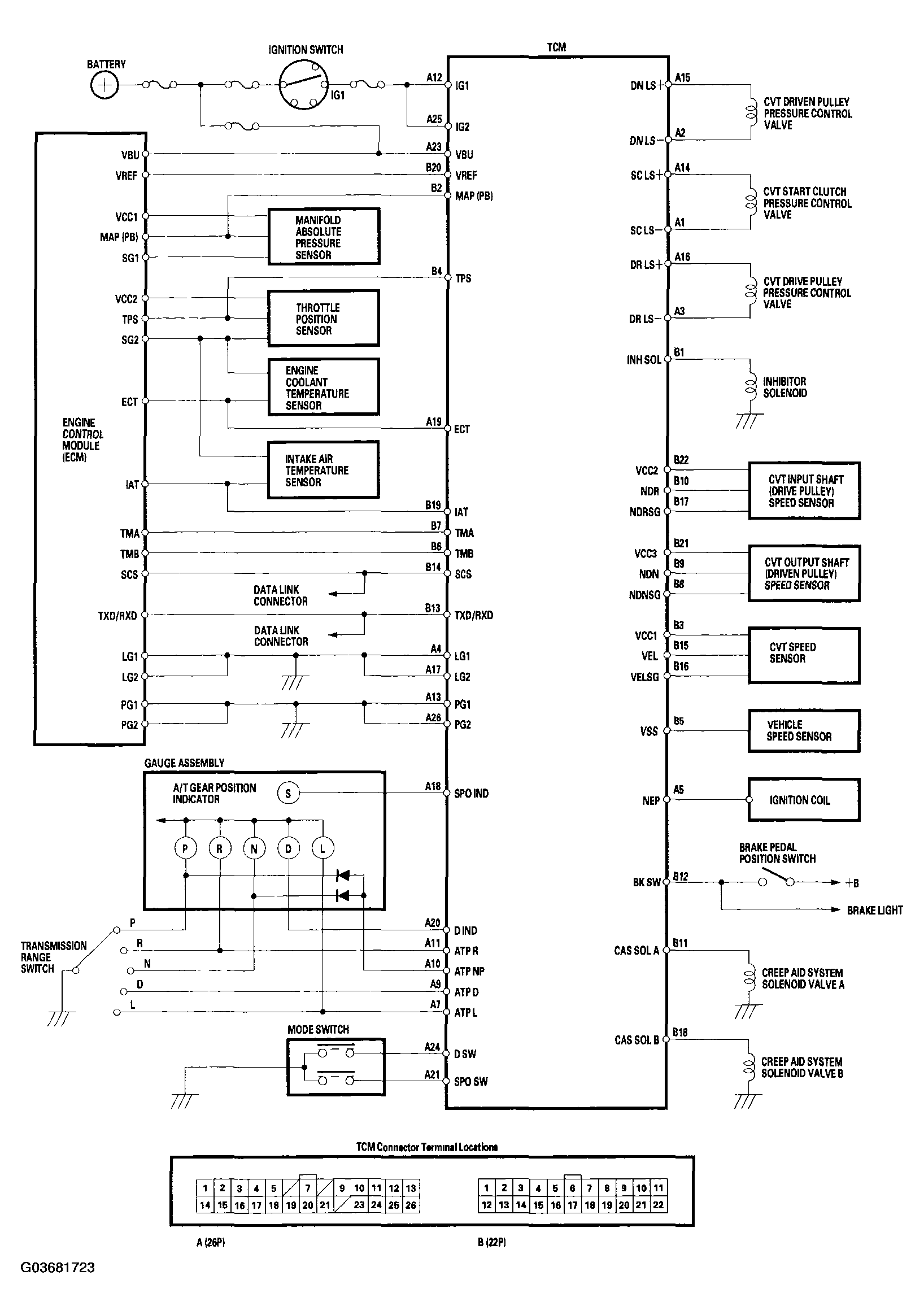

Fig 1: TCM Electrical Connection Diagram
