TCM Inputs and Outputs

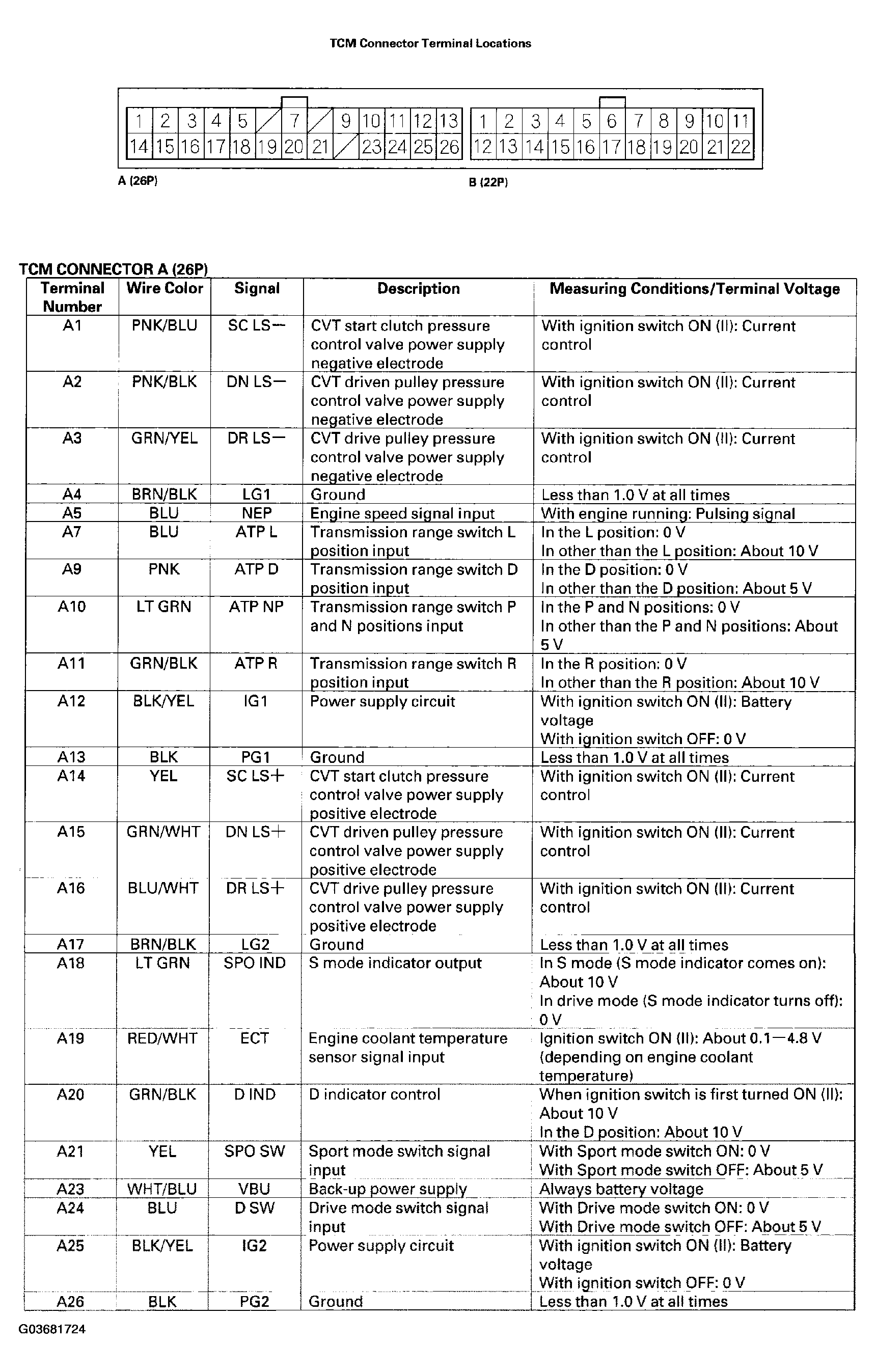

Fig 1: TCM Inputs And Outputs - Connector A (26P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

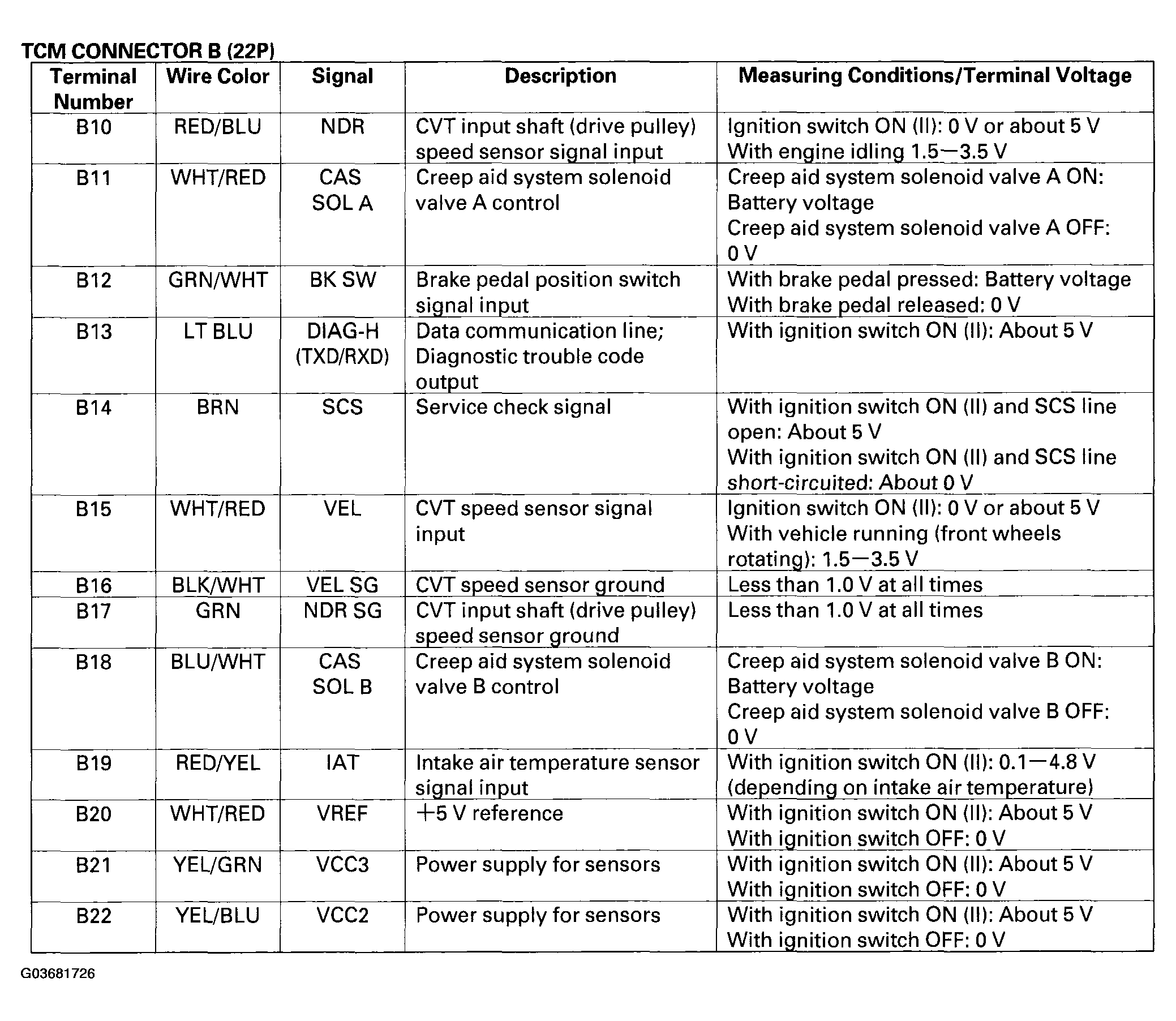

Fig 2: TCM Inputs And Outputs - Connector B (22P) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

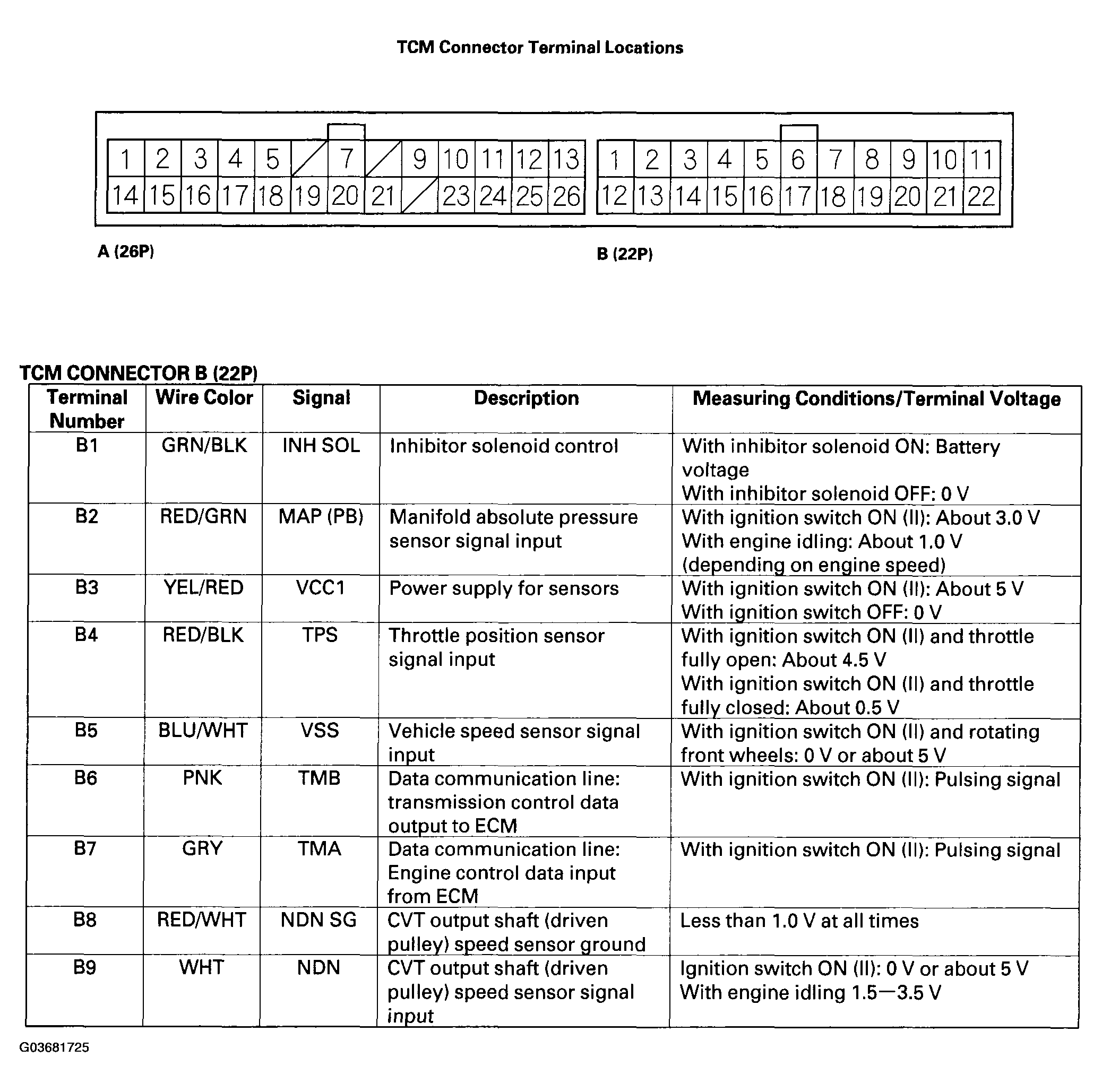

Fig 3: TCM Inputs And Outputs - Connector B (22P) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
