Relays And Control Unit Locations: Dashboard

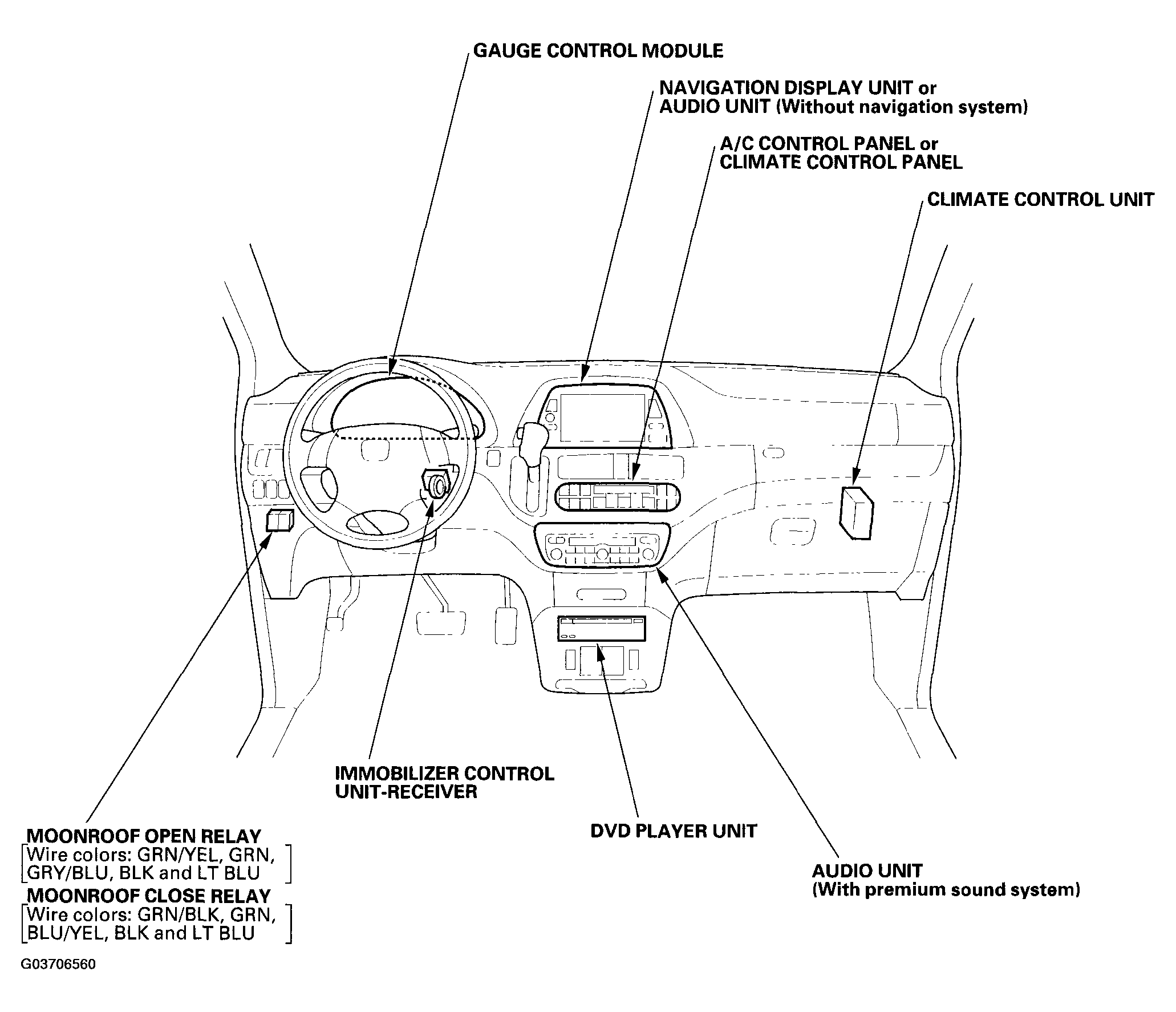

Fig 1: Identifying Relay And Control Unit Locations (Dashboard - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Relay And Control Unit Locations (Dashboard - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Relay And Control Unit Locations (Dashboard - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
