J35A6 Engine

  1. Remove the windshield wiper arms, and cowl cover (see WIPER MOTOR REPLACEMENT ).
  2. Remove the heat baffle stiffener (A).

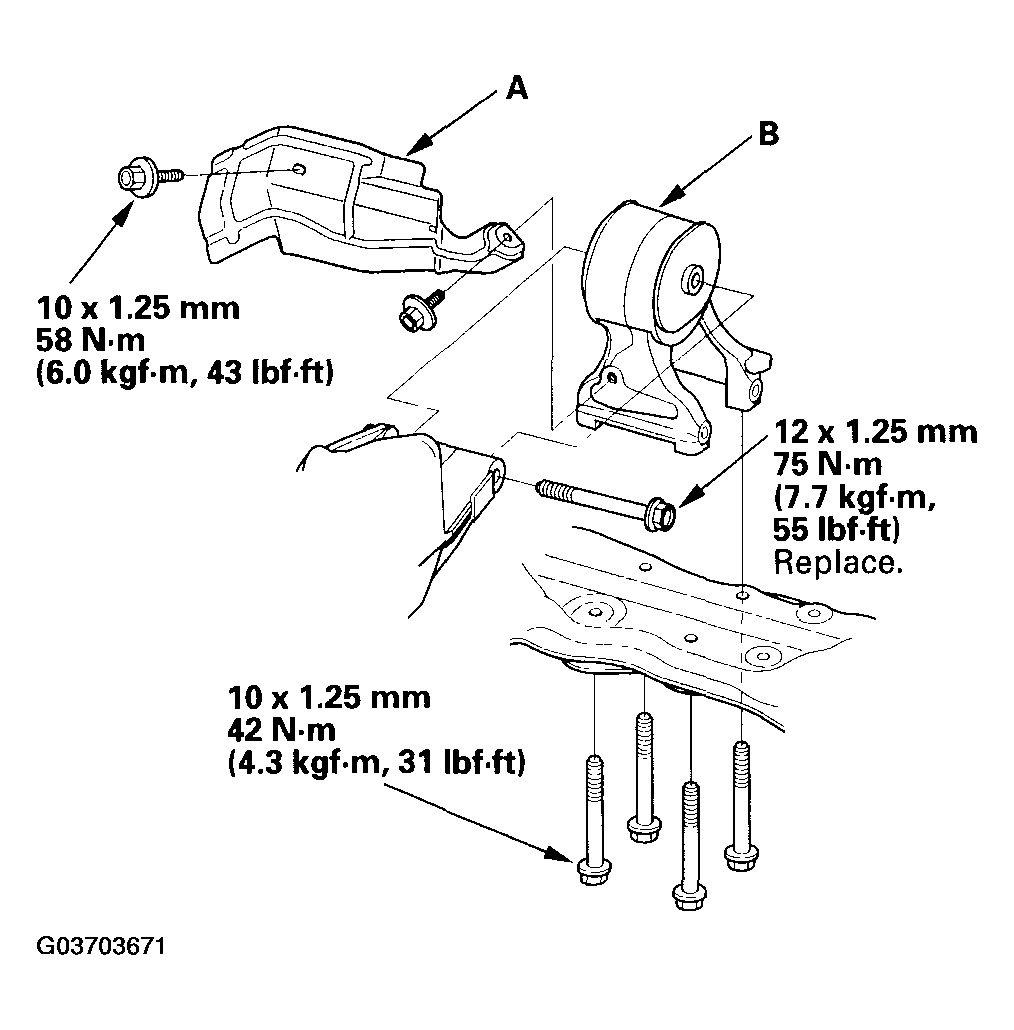

    Fig 1: Removing Heat Baffle Stiffener
    G03703671Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rear engine mount (B).
  4. Install the rear engine mount in the reverse order of removal.
