Power Mirror Actuator Test: Notes

NOTE: The power mirror actuator can be tested by using the HDS by following these steps:

Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ) and the mirror mount cover (see POWER MIRROR REPLACEMENT ).
Disconnect the 8P connector (A) from the power mirror actuator (B).

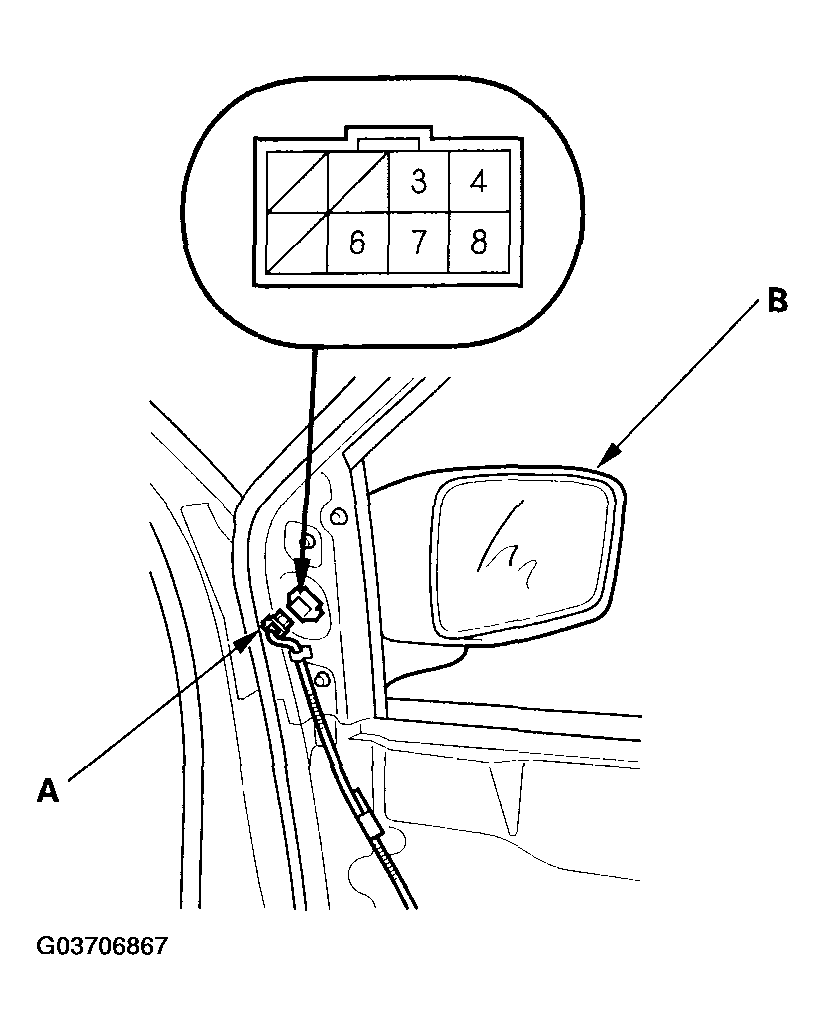

Fig 1: Disconnecting 8P Connector From Power Mirror Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check actuator operation by connecting power and ground according to the table shown in Fig 2 .

Fig 2: Checking Actuator Operation By Connecting Power And Ground Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the mirror fails to work properly, replace the mirror actuator.
